Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC2-H-DC48V-FRELAY GEN PURPOSE DPDT 7A 48V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2-H-AC12V-FRELAY GEN PURPOSE DPDT 7A 12V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 100 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2-H-AC100V-FRELAY GEN PURPOSE DPDT 7A 100V |
0 |
|
Технический лист |
HC | Tube | Obsolete | Socketable | 100VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 13.2 mA | Non Latching | - | Plug In | - | - | 80 VAC | 30 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
38YD152D3777RELAY GEN PURPOSE SPST 35A 395V |
0 |
|
Технический лист |
38, Products Unlimited | Bulk | Active | Chassis Mount | 395VAC | SPST-NC (1 Form B) | 35 A | 277VAC - Max | - | 12.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 275 VAC | 120 VAC | - | - | - | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
38-R175C5777RELAY GEN PURPOSE SPST 35A 420V |
0 |
|
Технический лист |
38, Products Unlimited | Bulk | Active | Chassis Mount | 420VAC | SPST-NC (1 Form B) | 35 A | 277VAC - Max | - | 11.9 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 252 VAC | 60 VAC | - | - | - | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
CSL-38-31010RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
CS | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 22 VDC | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|
|
2-1415354-1RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
Технический лист |
V23057, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
1-1393223-5RELAY GEN PURPOSE SPDT 8A 18V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 12.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 12.2 VDC | 1.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
V23061B1002A401RELAY GEN PURPOSE SPDT 8A 5V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
V23061B1003A401RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM732524RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 300 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM702730RELAY GEN PURPOSE 3PDT 16A 230V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | Socketable | 230VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 30.7 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM805730RELAY GEN PURPOSE DPDT 25A 230V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 230VAC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 30.7 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM839024RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

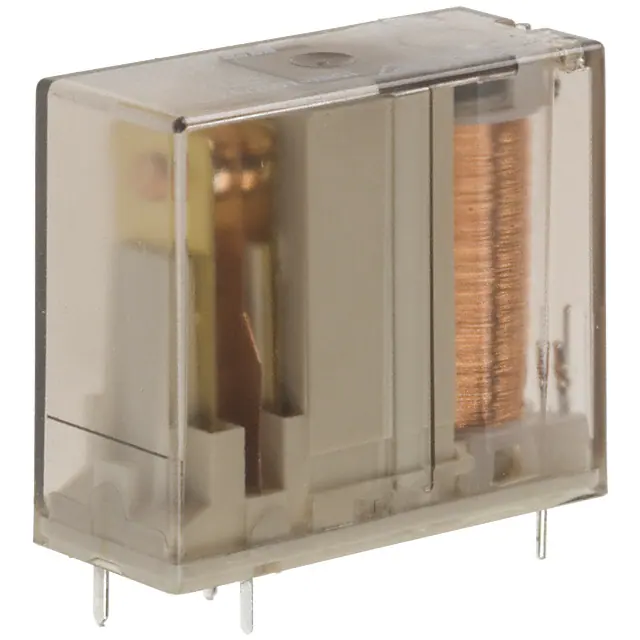

RP810024RELAY GEN PURPOSE SPDT 12A 24V |
0 |
|
Технический лист |
RP II/1, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
3-1393231-8RELAY GEN PURPOSE SPDT 12A 24V |
0 |
|
Технический лист |
RP II/1, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|

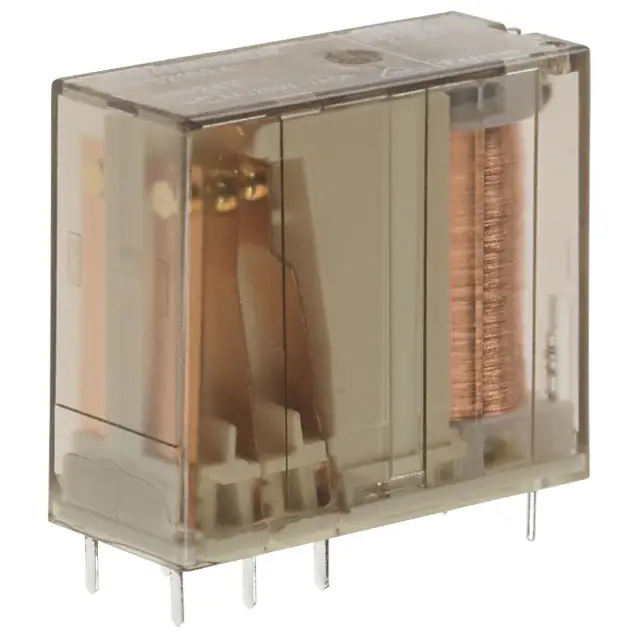

9-1393234-7RELAY GEN PURPOSE DPDT 8A 115V |
0 |
|
Технический лист |
RP II/2, SCHRACK | Bulk | Active | Through Hole | 115VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RY530024RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
1393225-9RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
3-1393224-3RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
