Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-T-J-CB-DC6RELAY GEN PURPOSE SPST 30A 6V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 317 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-1A-TUB-CB-AC50RELAY GEN PURPOSE SPST 30A 50V |
0 |
|
Технический лист |
G7L | Bulk | Active | Chassis Mount | 50VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 34 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 37.5 VAC | 7.5 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-TUB-CB-DC6RELAY GEN PURPOSE SPST 30A 6V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 317 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-1A-TUB-J-CB-AC50RELAY GEN PURPOSE SPST 30A 50V |
0 |
|
Технический лист |
G7L | Bulk | Active | Chassis Mount | 50VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 34 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 37.5 VAC | 7.5 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB-DC6RELAY GEN PURPOSE SPST 30A 6V |
0 |
|
Технический лист |
G7L | Bulk | Active | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 317 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-P-80-CB DC100RELAY GEN PURPOSE DPST 20A 100V |
0 |
|
Технический лист |
G7L | Bulk | Active | Through Hole | 100VDC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 19 mA | Non Latching | - | PC Pin | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-P-80-CB DC6RELAY GEN PURPOSE DPST 20A 6V |
0 |
|
Технический лист |
G7L | Bulk | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 317 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-P-CB AC12RELAY GEN PURPOSE DPST 20A 12V |
0 |
|
Технический лист |
G7L | Bulk | Active | Through Hole | 12VAC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 142 mA | Non Latching | - | PC Pin | - | Class B | 9 VAC | 1.8 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-T-CB-AC12RELAY GEN PURPOSE DPST 25A 12V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 12VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 142 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VAC | 1.8 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-T-CB-DC6RELAY GEN PURPOSE DPST 25A 6V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 6VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 317 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
XT314012RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
1887100-3RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

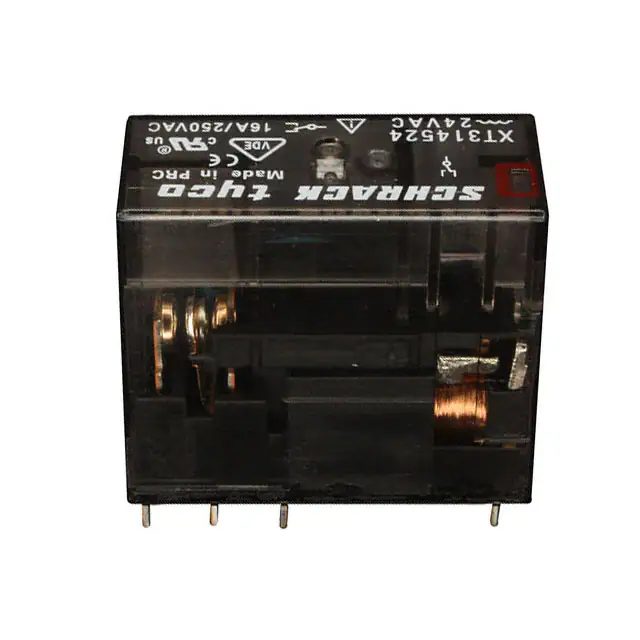

XT314524RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 18 VAC | 3.6 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
1887101-7RELAY GEN PURPOSE SPDT 16A 115V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 115VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 6.6 mA | Non Latching | - | Plug In | - | Class F | 86.3 VAC | 17.3 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
XT374R24RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VAC | 3.6 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

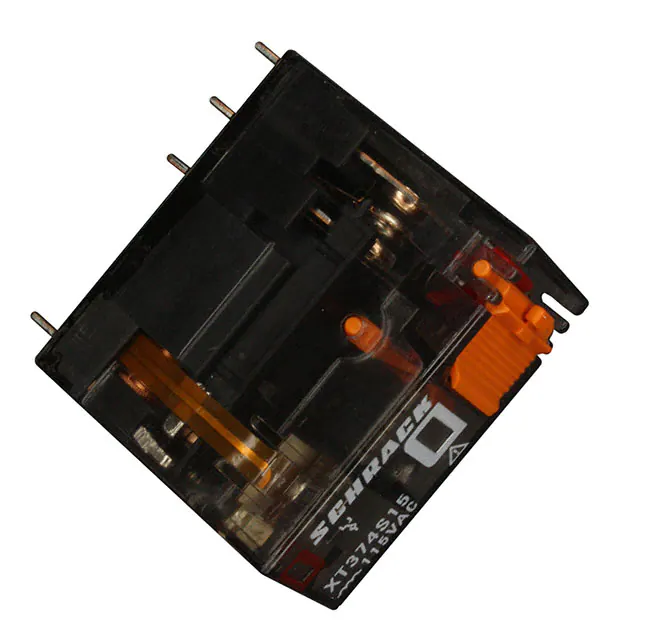

XT374S15RELAY GEN PURPOSE SPDT 16A 115V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 115VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 86.3 VAC | 17.3 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
XT374T30RELAY GEN PURPOSE SPDT 16A 230V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 230VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 172.5 VAC | 34.5 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
XT424524RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 18 VAC | 3.6 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
XT484R24RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VAC | 3.6 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
1887203-4RELAY GEN PURPOSE DPDT 8A 115V |
0 |
|
Технический лист |
XT, SCHRACK | Tube | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 86.3 VAC | 17.3 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
