Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6C-2114P-FD-US DC12RELAY GEN PURPOSE DPST 8A 12V |
0 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-2114P-US-AP DC12RELAY GEN PURPOSE DPST 8A 12V |
0 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6C-2117C-US DC3RELAY GEN PURPOSE DPST 8A 3V |
0 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-2BND-DC24RELAY GEN PURPOSE DPST 8A 24V |
0 |
|
Технический лист |
G6C-4 | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CSA, TUV, UR, VDE | General Purpose | - | - |
|

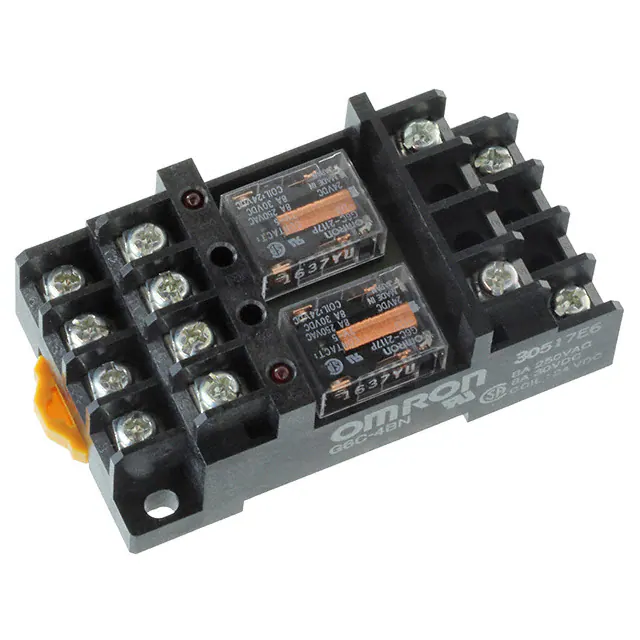

G6C-4BND DC24RELAY GEN PURPOSE DPST 8A 24V |
0 |
|
Технический лист |
G6C-4 | Bulk | Active | DIN Rail | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) x 2 | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-4BND DC5RELAY GEN PURPOSE DPST 8A 5V |
0 |
|
Технический лист |
G6C-4 | Bulk | Active | DIN Rail | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) x 2 | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | Socket Included | Screw Terminal | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6CU-1114P-FD-US DC5RELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6EU-134PL-ST-US-DC12RELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
Технический лист |
G6E | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
G6EU-134PL-ST-US-DC24RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
G6E | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
G6EU-134PL-ST-US-DC5RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
Технический лист |
G6E | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 79.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
G6EU-134P-ST-US-DC5RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
Технический лист |
G6E | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
G6EU-134P-ST-US-DC6RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
Технический лист |
G6E | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
G6EU-134P-ST-US-DC9RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
Технический лист |
G6E | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 22.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
G6RN-1A DC48RELAY GEN PURPOSE SPST 8A 48V |
0 |
|
Технический лист |
G6RN | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 2000VA, 240W | 5.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CSA, cURus, UR, VDE | General Purpose | - | - |
|
G7J-4A-T-KMDC24RELAY GEN PURPOSE 4PST 25A 24V |
0 |
|
- |
G7J | Bulk | Active | Chassis Mount | 24VDC | 4PST-NO (4 Form A) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | Silver Alloy | CE, CSA, UR | General Purpose | - | - |
|
|
G7L-1A-P-CB-AC100/120RELAY GEN PURPOSE SPST 20A 120V |
0 |
|
Технический лист |
G7L | Bulk | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 20.4 mA | Non Latching | - | PC Pin | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-1A-T-80-CB AC200/240RELAY GEN PURPOSE SPST 30A 240V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 10.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-T-CB-DC6RELAY GEN PURPOSE SPST 30A 6V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 317 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-1A-T-J-CB-AC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 142 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VAC | 1.8 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-T-J-CB-DC100RELAY GEN PURPOSE SPST 30A 100V |
0 |
|
Технический лист |
G7L | Bulk | Obsolete | Chassis Mount | 100VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 19 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
