Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-24-ASI AC240RELAY GEN PURPOSE DPDT 4A 240V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 240VAC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-24-ASI DC48RELAY GEN PURPOSE DPDT 4A 48V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-24-DC4RELAY GEN PURPOSE DPDT 4A 4V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 4VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.8 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-24-H-DC48RELAY GEN PURPOSE DPDT 3A 48V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-24-T130 DC16RELAY GEN PURPOSE DPDT 4A 16V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 16VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 33.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 11.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-2A4-DC48RELAY GEN PURPOSE DPST 4A 48V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A4-T130 DC15RELAY GEN PURPOSE DPST 4A 15V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 35.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 10.5 VDC | 2.25 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|

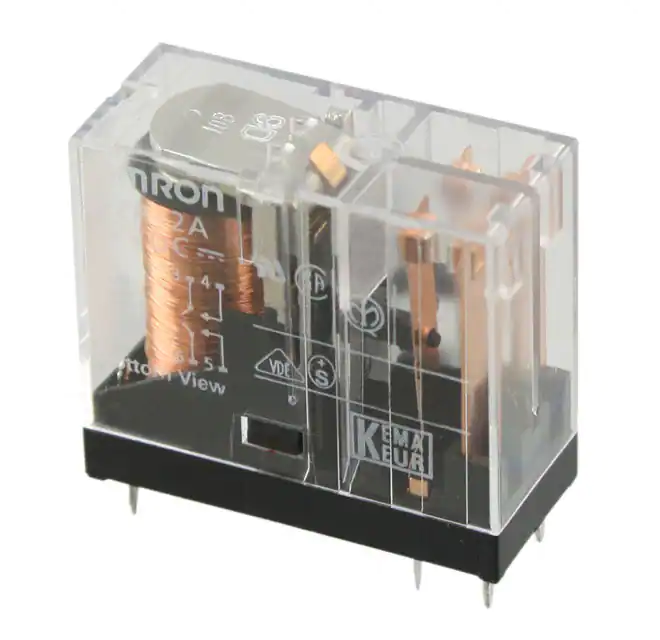

G2R-2A-AC110RELAY GEN PURPOSE DPST 5A 110V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 110VAC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-AC12RELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 12VAC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-AC6RELAY GEN PURPOSE DPST 5A 6V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 6VAC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 150 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.8 VAC | 1.8 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-ASI-DC5RELAY GEN PURPOSE DPST 5A 5V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-AUL DC24RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-2-AC6RELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 6VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 150 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.8 VAC | 1.8 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-DC18RELAY GEN PURPOSE DPST 5A 18V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 18VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 29.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 2.7 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A DC20RELAY GEN PURPOSE DPST 5A 20V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 20VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 26.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 14 VDC | 3 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-H-T130 DC24RELAY GEN PURPOSE DPST 3A 24V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-ASI DC12RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-ASI-DC5RELAY GEN PURPOSE DPDT 5A 5V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2A-SKVD-AC220RELAY GEN PURPOSE DPST 5A 220V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 220VAC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 4.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-AUL-AC120RELAY GEN PURPOSE DPDT 5A 120V |
0 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 120VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, TUV, UR, VDE | General Purpose | - | - |
