Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM607012RELAY GEN PURPOSE 3PST 10A 12V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 4000VA | 140 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM507024RELAY GEN PURPOSE DPST 16A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
9400-03Q1999RELAY GEN PURPOSE SPDT 18A 24V |
0 |
|
Технический лист |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
|
9400-04U1999RELAY GEN PURPOSE SPDT 18A 240V |
0 |
|
Технический лист |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 240VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
RY210005RELAY GEN PURPOSE SPDT 8A 5V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
SRUDH-SH-112DM1,000RELAY GEN PURPOSE SPST 12A 12V |
0 |
|
Технический лист |
SRUDH, OEG | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
|
9400-14Q1999RELAY GEN PURPOSE SPDT 18A 24V |
0 |
|
Технический лист |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
T90S5D12-18RELAY GEN PURPOSE SPDT 20A 18V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 47 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
OSA-SH-205DM5,000RELAY GEN PURPOSE DPST 5A 5V |
0 |
|
Технический лист |
OSA, OEG | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 108 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
T90S1D42-24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90S1D42-12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90S1D42-48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
OSZ-SS-124DM8,000RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Технический лист |
OSZ, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
T90S1D12-9RELAY GEN PURPOSE SPST 30A 9V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 93 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90S1D12-110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90S5D42-24RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T7CV5D-06RELAY GEN PURPOSE SPDT 12A 6V |
0 |
|
Технический лист |
T7C | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.3 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
|

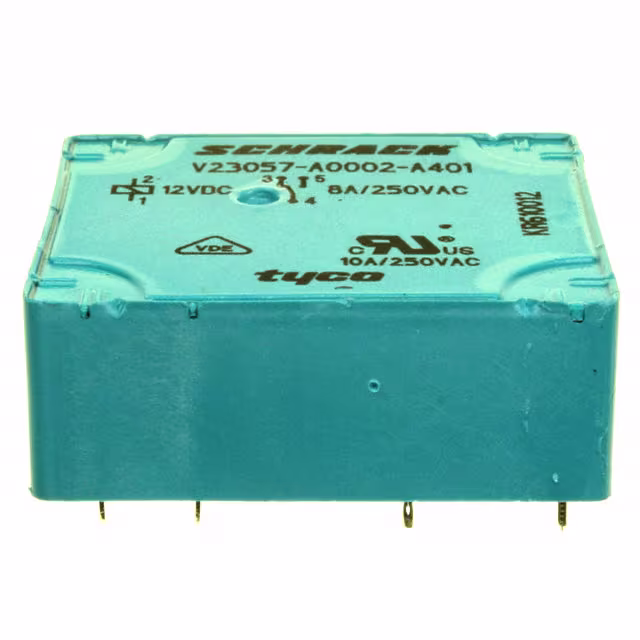

V23057A 2A401RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
Технический лист |
V23057, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
T7CS5D-09RELAY GEN PURPOSE SPDT 12A 9V |
0 |
|
Технический лист |
T7C | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
|
|
T7CS1D-24RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Технический лист |
T7C | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
