Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST2-L2-DC9VRELAY GEN PURPOSE DPST 8A 9V |
0 |
|
Технический лист |
ST | Tube | Obsolete | Through Hole | 9VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 25 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy | CSA, UR, VDE | General Purpose | - | - |
|
CSJ-38-70010RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
CS | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|
S89R11AAC1-120RELAY IMPULSE DPDT 15A 120V |
0 |
|
Технический лист |
S89R | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
KRP-3AH-120RELAY GEN PURPOSE SPST 20A 120V |
0 |
|
Технический лист |
KRP | Bulk | Obsolete | Socketable | 120VAC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | 4800VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KBP-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
KBP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 44 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
RY610005RELAY GEN PURPOSE SPDT 8A 5V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RY610012RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RY610024RELAY GEN PURPOSE SPDT 8A 24V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
PC1A-24VRELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
PC | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC - Max | 1250VA | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 6 ms | 3 ms | - | - | - | General Purpose | - | - |
|
G4B-112T1-C-US-AC240RELAY GEN PURPOSE SPDT 15A 240V |
0 |
|
Технический лист |
G4B | Bulk | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 5.4 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G9EB-1-B DC12RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
Технический лист |
G9EB-1 | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 25 A | 250VDC - Max | 6250W | 167 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 1.2 VDC | 30 ms | 15 ms | -40°C ~ 70°C | - | - | General Purpose | - | - |
|
|
G9EB-1-B DC24RELAY GEN PURPOSE SPST 25A 24V |
0 |
|
Технический лист |
G9EB-1 | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 25 A | 250VDC - Max | 6250W | 83.3 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 18 VDC | 2.4 VDC | 30 ms | 15 ms | -40°C ~ 70°C | - | - | General Purpose | - | - |
|
G6DS-1A DC5RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
G6DS-1A DC12RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
G6DS-1A DC24RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
G6DS-1A-H DC5RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 24 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
G6DS-1A-H DC12RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
G6DS-1A-H DC24RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
G6DS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|

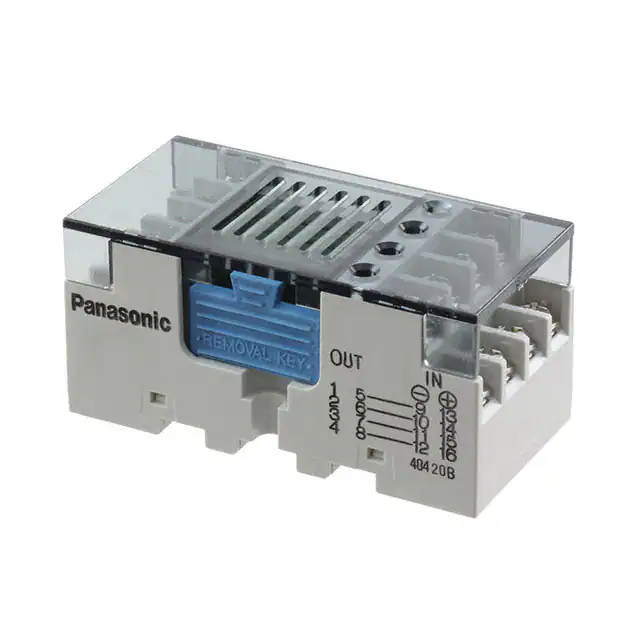

RT3S-24VRELAY GEN PURPOSE SPST 3A 24V |
0 |
|
Технический лист |
RT-3 | Bulk | Obsolete | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 7.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 16.8 VDC | 1.2 VDC | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
1432782-1RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
VF4 | Bulk | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | - | 133 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
