Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JW1AFSN-B-DC48VRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Технический лист |
JW | Tray | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 11 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
JW1AFSN-B-DC5VRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
JW | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
JW1AFSN-DC12V-TVRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Технический лист |
JW | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
JW1AFSN-DC9VRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
JW | Tray | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 58 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
LK1AF-5VRELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
LK | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
|
LKP1AF-5VRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
LK-P | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, RUV, UR VDE | General Purpose | - | - |
|
|
LKP1AF-6VRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Технический лист |
LK-P | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 88.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, RUV, UR VDE | General Purpose | - | - |
|
|
LKP1AF-9VRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
LK-P | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, RUV, UR VDE | General Purpose | - | - |
|
|
LKS1AF-9VRELAY GEN PURPOSE SPST 5A 9V |
0 |
|
Технический лист |
LK-S | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|

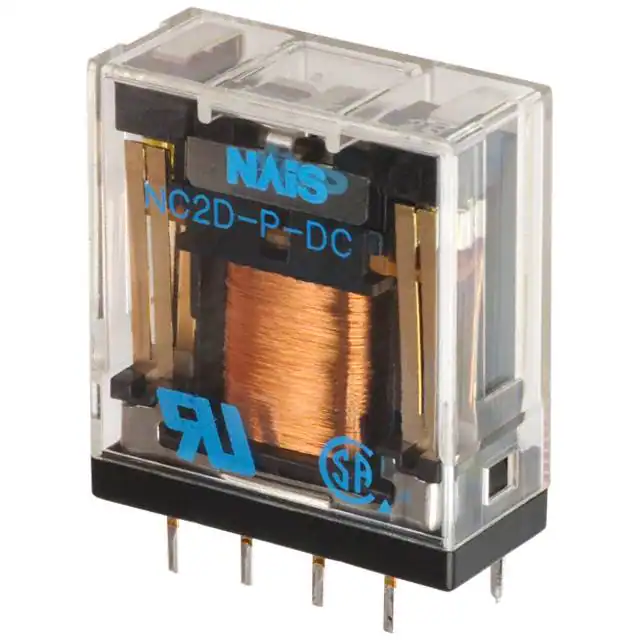

NC2D-JPL2-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-JPL2-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 19.2 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-JPL2-DC3VRELAY GEN PURPOSE DPDT 5A 3V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 267 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.4 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-JPL2-DC5VRELAY GEN PURPOSE DPDT 5A 5V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 160 mA | Latching, Dual Coil | - | PC Pin | - | - | 4 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC2D-K-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-L2-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 66.7 mA | Latching, Dual Coil | - | Plug In | - | - | 9.6 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-L2-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 33.3 mA | Latching, Dual Coil | - | Plug In | - | - | 19.2 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-PL2-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2D-PL2-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 19.2 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
NC2EBD-JP-DC6VRELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
Технический лист |
NC | Bag | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2EBD-JPL2-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
