Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F21CL5VDCS.9RELAY GEN PURPOSE SPDT 40A 5V |
210 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21AL220VACSRELAY GEN PURPOSE SPST 40A 220V |
295 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 220VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 16.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 165 VAC | 66 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J114AF2CS48VDC.53RELAY GEN PURPOSE DPDT 8A 48V |
1,147 |
|
Технический лист |
J114AF | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 11.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
3-1415899-9RELAY GEN PURPOSE SPST 12A 12V |
147 |
|
Технический лист |
RZ, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
J115F21AL48VDCS.9RELAY GEN PURPOSE SPST 40A 48V |
286 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

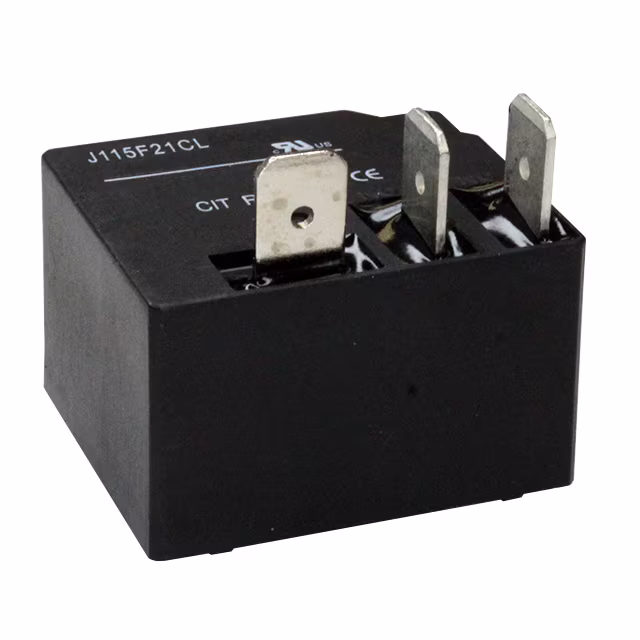

J115F21CL24VDCS.9RELAY GEN PURPOSE SPDT 40A 24V |
282 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F21A48VDCS.9RELAY GEN PURPOSE SPST 40A 48V |
586 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J116F11AW5VDCS1.5RELAY GEN PURPOSE SPST 50A 5V |
545 |
|
Технический лист |
J116F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 294.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR17-5V-540-1CRELAY GEN PURPOSE SPDT 16A 5V |
997 |
|
Технический лист |
PR17 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 108.7 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 15 ms | 8 ms | -30°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR22-12V-400-1CRELAY GEN PURPOSE SPDT 16A 12V |
863 |
|
Технический лист |
PR22 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 440VAC, 120VDC - Max | 7040VA, 1920W | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR22-5V-400-1CRELAY GEN PURPOSE SPDT 16A 5V |
820 |
|
Технический лист |
PR22 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 120VDC - Max | 7040VA, 1920W | 80 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
4-1415899-5RELAY GEN PURPOSE SPDT 12A 24V |
2,127 |
|
Технический лист |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
4-1415899-2RELAY GEN PURPOSE SPDT 12A 5V |
222 |
|
Технический лист |
RZ, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 83.3 mA | Non Latching | - | PC Pin | - | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
8-1415899-5RELAY GEN PURPOSE SPDT 12A 24V |
1,695 |
|
Технический лист |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
6-1415358-1RELAY GEN PURPOSE SPST 10A 9V |
859 |
|
Технический лист |
PB, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
J116F11A24VDCS.9RELAY GEN PURPOSE SPST 50A 24V |
573 |
|
Технический лист |
J116F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J115F11A48VDCSH.6RELAY GEN PURPOSE SPST 40A 48V |
278 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F11C9VDCSH.6RELAY GEN PURPOSE SPDT 40A 9V |
277 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F11C5VDCSH.9RELAY GEN PURPOSE SPDT 40A 5V |
263 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
AZ2100-1AE-110DEFRELAY GEN PURPOSE SPST 40A 110V |
227 |
|
Технический лист |
AZ2100 | Box | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
