Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AKE109D00GRELAY GEN PURPOSE SPST 8A 9V |
1,999 |
|
Технический лист |
AKE | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
|
AKE112D00GRELAY GEN PURPOSE SPST 8A 12V |
1,994 |
|
Технический лист |
AKE | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
J115F11C48VDCS6.9RELAY GEN PURPOSE SPDT 40A 48V |
279 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
RZ01-1A4-D024RELAY GEN PURPOSE SPST 12A 24V |
3,922 |
|
Технический лист |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AKE124D00GRELAY GEN PURPOSE SPST 8A 24V |
2,000 |
|
Технический лист |
AKE | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
OJ-SS-112LMH,000RELAY GEN PURPOSE SPST 8A 12V |
1,041 |
|
Технический лист |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
ALDP1F09WRELAY GEN PURPOSE SPST 5A 9V |
238 |
|
Технический лист |
ALDP | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 22.2 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
|
OJ-SS-109LMH2-WGRELAY SPST 8A 9V |
871 |
|
Технический лист |
OJ, OEG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
|
PR18-5V-540-1ARELAY GEN PURPOSE SPST 10A 5V |
1,000 |
|
Технический лист |
PR18 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 106.4 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 15 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR18-12V-540-1ARELAY GEN PURPOSE SPST 10A 12V |
997 |
|
Технический лист |
PR18 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44.9 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
ALDP1F06WRELAY GEN PURPOSE SPST 5A 6V |
400 |
|
Технический лист |
ALDP | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
|
AZ733-2AE-9DERELAY GEN PURPOSE DPST 12A 9V |
1,000 |
|
Технический лист |
AZ733 | Tray | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 56.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
J115F21CL110VDCS.9RELAY GEN PURPOSE SPDT 40A 110V |
296 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

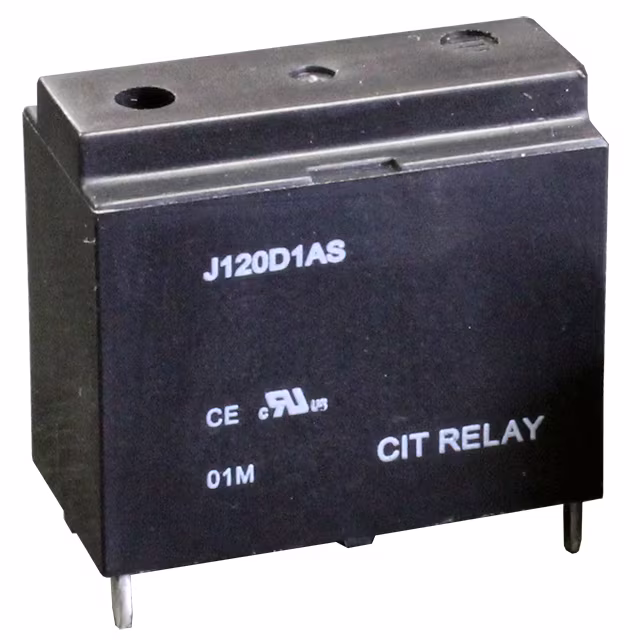

J120D1AS24VDCPRELAY GEN PURPOSE SPST 20A 24V |
137 |
|
Технический лист |
J120D | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR19-5V-250-1ARELAY GEN PURPOSE SPST 10A 5V |
1,000 |
|
Технический лист |
PR19 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 50 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 15 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR19-12V-250-1ARELAY GEN PURPOSE SPST 10A 12V |
998 |
|
Технический лист |
PR19 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 20.8 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR18-24V-540-1ARELAY GEN PURPOSE SPST 10A 24V |
991 |
|
Технический лист |
PR18 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22.5 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|
J114FL1CS1224VDC.41RELAY GEN PURPOSE SPDT 12A 24V |
685 |
|
Технический лист |
J114FL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 880W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J114AF1CS9VDC.53RELAY GEN PURPOSE SPDT 16A 9V |
441 |
|
Технический лист |
J114AF | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J114AF1CS6VDC.53RELAY GEN PURPOSE SPDT 16A 6V |
387 |
|
Технический лист |
J114AF | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 89.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
