Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K81BA57RELAY SPST 12V |
0 |
|
- |
K81B, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPST-NC (1 Form B) | - | 10000VDC - Nom | - | 171.4 mA | Non Latching | - | Stud | - | - | 8 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
MM2KP-AC120RELAY GEN PURPOSE DPDT 5A 120V |
0 |
|
Технический лист |
MMK | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 96W | 29.2 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 96 VAC | - | 30 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2KP AC220RELAY GEN PURPOSE DPDT 5A 220V |
0 |
|
Технический лист |
MMK | Bulk | Active | Socketable | 220VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 96W | 17.5 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 176 VAC | - | 30 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1449330000RSM-16 115VAC/DC 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 115VAC/DC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 3.3 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
ARA-120-AMERELAY GEN PURPOSE SPST 5A 120V |
0 |
|
Технический лист |
ARA | Box | Discontinued | Chassis Mount | 120VAC/DC | SPST-NO (1 Form A) x 3 | 5 A | 120VAC - Nom | - | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
|

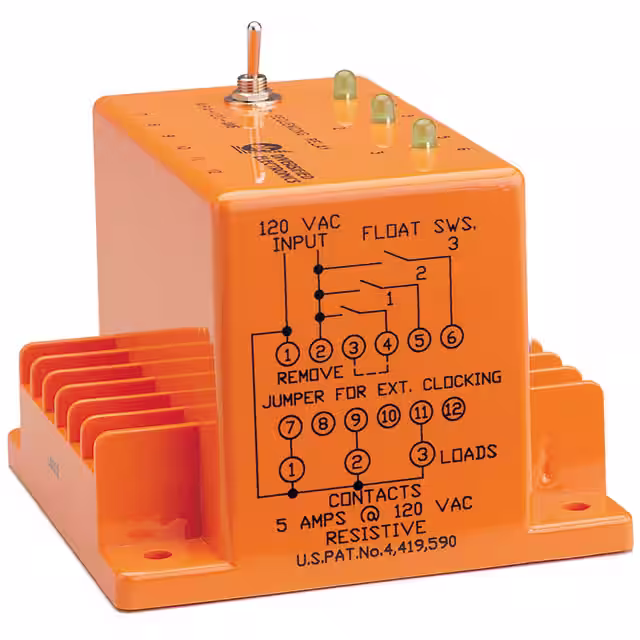

ARA-120-AMEEXPANDABLE ALTERNATING RELAY |
0 |
|
Технический лист |
ARA | Box | Active | Chassis Mount | 120VAC/DC | SPST-NO (1 Form A) x 3 | 5 A | 120VAC - Nom | 600VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
|
2-1393818-4RELAY GEN PURPOSE DPST 5A 72V |
0 |
|
Технический лист |
V23162, AXICOM | Bulk | Obsolete | Socketable | 72VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 48.4 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
PD10AC57RELAY GEN PURPOSE SPST 10A 125V |
0 |
|
Технический лист |
PD10, KILOVAC | Bulk | Discontinued | Chassis Mount | 125VDC | SPST-NO (1 Form A) | 10 A | 320VDC - Max | 3200VA | 26.6 mA | Non Latching | - | Screw Terminal | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
1449390000RSM-16I 24V+ 2CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
K43A332K43A332=RELAY, VACUUM, SPST-NO |
0 |
|
- |
K43, KILOVAC | Bulk | Active | Chassis Mount | 26.5VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
8-1618393-9RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Технический лист |
K81A, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 10000VDC - Nom | - | 171.4 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5A245RELAY SPST 12V |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | - | - | 171.4 mA | Non Latching | - | Stud | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5A345RELAY SPST 15A 24V |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Panel Mount | 24VDC | SPST-NO (1 Form A) | 15 A | - | - | 82.8 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5A535PD5A535=RELAY, VACUUM, SPST-NO |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Panel Mount | 125VDC | SPST-NO (1 Form A) | 15 A | - | - | 26.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5A545RELAY SPST 15A 125V |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Through Hole | 125VDC | SPST-NO (1 Form A) | 15 A | - | - | 26.6 mA | Non Latching | - | PC Pin | - | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5AA47PD5AA47=RELAY, VACUUM, SPST-NO |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPST-NO (1 Form A) | 15 A | - | - | 171.4 mA | Non Latching | - | - | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
PD5AB47RELAY GEN PURPOSE SPST 15A 24V |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Panel Mount | 24VDC | SPST-NO (1 Form A) | 15 A | - | - | 82.8 mA | Non Latching | - | Stud | - | - | 16 VDC | 10 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
9-1393818-0RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
V23162, AXICOM | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 7.1 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
3-1617001-3A07A932BC1-0233 = RELAY. |
0 |
|
- |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
K41C234K41C234=RELAY, VACUUM, SPDT |
0 |
|
Технический лист |
K41, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 171.4 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
