Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISO-120-ACERELAY GEN PURPOSE SPST 5A 120V |
0 |
|
Технический лист |
ISO | Box | Discontinued | Chassis Mount | 120VAC | SPST-NO (1 Form A) x 4 | 5 A | 120VAC - Nom | - | - | Non Latching | - | Screw Terminal | - | - | - | - | 6 ms | 2.5 ms | -20°C ~ 55°C | - | UL | General Purpose | - | - |
|
FCA-210-CY8RELAY DPDT 10A 115V |
0 |
|
- |
FCA-210, CII | Bulk | Active | Chassis Mount | 115VAC | DPDT (2 Form C) | 10 A | - | - | 40 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 90 VAC | 5 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
PD10A235PD10A235=RELAY, VACUUM, SPST-N |
0 |
|
- |
PD10, KILOVAC | Bulk | Discontinued | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 10 A | 320VDC - Max | 3200VA | 171.4 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
1129000000RSM-8 PLC C SW 1CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 8 | 2.5 A | 250VAC - Max | 625VA | 13 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
2-1618241-7K81B-09=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K81B, KILOVAC | Bulk | Active | - | - | SPST-NC (1 Form B) | - | 10000VDC - Nom | - | - | Non Latching | - | - | Sealed - Vacuum | - | - | - | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
8501XO33V02RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Active | Socketable | 120VAC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | 102 VAC | - | 15 ms | 16 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
7-1618240-1K47B-04=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K47B | Bulk | Active | Panel Mount | - | SPST-NC (1 Form B) | 12 A | - | - | - | Non Latching | - | Wire Leads | - | - | - | - | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
PD5A335RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
- |
PD5, KILOVAC | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | - | - | 82.8 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
4-1393818-4RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
V23162, AXICOM | Bulk | Obsolete | Socketable | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 14.5 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
K43B334K43B334=RELAY, VACUUM, SPST-NC |
0 |
|
Технический лист |
K43, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPST-NC (1 Form B) | 25 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|

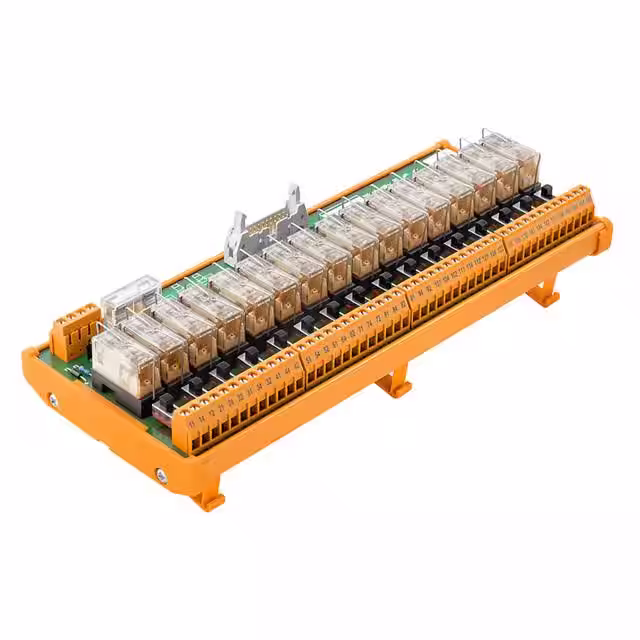

9445140000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
- |
RSM | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 1500VA | 17 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -25°C ~ 40°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
5-1393818-0RELAY GEN PURPOSE DPST 5A 32V |
0 |
|
Технический лист |
V23162, AXICOM | Bulk | Obsolete | Socketable | 32VDC | DPST-NO (2 Form A) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 16 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
7-1617748-7FCA-125-CX9 |
0 |
|
Технический лист |
FCA-125, CII | Bulk | Active | Chassis Mount | 115VAC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 30 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 95 VAC | 5 VDC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
K43A734K43A734=RELAY, VACUUM, SPST-NO |
0 |
|
- |
K43, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Nom | - | 171.4 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K81A335K81A335=RELAY, VACUUM, SPST-NO |
0 |
|
Технический лист |
K81A, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPST-NO (1 Form A) | 5 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
K81A345RELAY SPST 26.5V |
0 |
|
Технический лист |
K81A, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPST-NO (1 Form A) | 30 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | PC Pin, Wire Leads | - | - | 16 VDC | 10 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
B07B055AC1B07B055AC1 = 07 RELAY |
0 |
|
Технический лист |
07, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.4 VDC | 1.8 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
8501XO60XLV02RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Active | Chassis Mount | 120VAC | 6PST-NO (6 Form A) | 10 A | 600VAC - Max | 6000VA | - | Latching, Single Coil | - | Screw Terminal | - | - | - | - | 15 ms | 13 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
8501XDO80V62RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Active | Chassis Mount | 115 ~ 125VDC | 8PST-NO (8 Form A) | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | 37 ms | 21 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
K81BA47K81BA47=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K81B, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPST-NC (1 Form B) | 30 A | 10000VDC - Nom | - | 171.4 mA | Non Latching | - | Stud, Wire Leads | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
