Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE4284DV33NTMA1IC REG LINEAR 3.3V 1A TO252-3-11 |
0 |
|
Технический лист |
OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 40V | 3.3V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
TLE4473GV53NTIC REG LINEAR 3.3V/5V DSO12-11 |
0 |
|
Технический лист |
OPTIREG™ | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 42V | 3.3V, 5V | - | - | 300mA, 180mA | 265 µA | 20 mA | 65dB (100Hz), 65dB (100Hz) | Inhibit, Reset, Watchdog | Over Current, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-12-11 |
|
TLE4253GSXUMA2IC REG LINEAR POS ADJ 250MA DSO8 |
0 |
|
Технический лист |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued | Positive | Adjustable | 1 | 40V | Tracking | - | 0.6V @ 200mA | 250mA | 150 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
|
TLE4254GSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
0 |
|
Технический лист |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
TLE4296GV30NTSA1IC REG LINEAR 3V 30MA SCT595-5 |
0 |
|
Технический лист |
OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 45V | 3V | - | 0.3V @ 20mA | 30mA | 170 µA | 4.5 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4296GV50NTSA1IC REG LINEAR 5V 30MA SCT595-5 |
0 |
|
Технический лист |
OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 45V | 5V | - | 0.3V @ 20mA | 30mA | 170 µA | 5.2 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4295GV33NTSA1IC REG LINEAR 3.3V 30MA SCT595-5 |
0 |
|
Технический лист |
OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4274DV50ITJKKNTMA1IC REG LINEAR 5V 400MA TO252-3 |
0 |
|
Технический лист |
OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
|
TLE42742DV50NTMA1IC REG LINEAR 5V 400MA |
0 |
|
Технический лист |
OPTIREG™ | - | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | - | - |
|

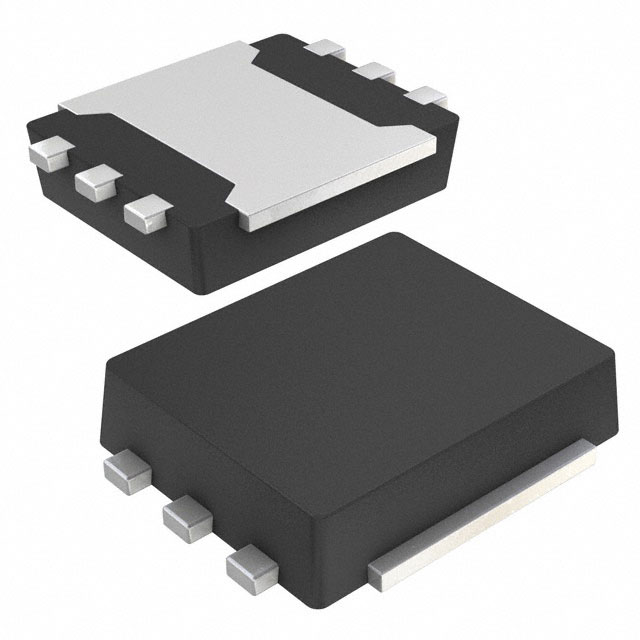

S-1135A11-A6T1UIC REG LINEAR 1.1V 300MA HSNT-6A |
0 |
|
- |
S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
S-1135A11-M5T1UIC REG LINEAR 1.1V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A13-M5T1UIC REG LINEAR 1.3V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A25-M5T1UIC REG LINEAR 2.5V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A29-A6T1UIC REG LINEAR 2.9V 300MA HSNT-6A |
0 |
|
- |
S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135A29-M5T1UIC REG LINEAR 2.9V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A33-M5T1UIC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B12-M5T1UIC REG LINEAR 1.2V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B16-M5T1UIC REG LINEAR 1.6V 300MA SOT23-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.6V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B25-A6T1UIC REG LINEAR 2.5V 300MA HSNT-6A |
0 |
|
- |
S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135B33-U5T1UIC REG LINEAR 3.3V 300MA SOT89-5 |
0 |
|
- |
S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
