Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP134AMX100TCGIC REG LINEAR 1V 500MA 4XDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 0.25V @ 500mA | 500mA | - | - | 80dB ~ 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
NCP720BMT100TBGIC REG LINEAR 1V 350MA 6WDFN |
0 |
|
Технический лист |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 1.4V @ 350mA | 350mA | - | - | 65dB ~ 25dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WDFN (2x2) |
|
AOZ2023PIIC REG LINEAR POS ADJ 3A 8SO |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1V | 5.25V | 0.25V @ 2A | 3A | 1 mA | - | - | Enable, Power Good | Over Current, Over Temperature, Power On Reset (POR), Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO-EP |
|
IFX1763LDV33XUMA1IC REG LINEAR 3.3V 500MA TSON-10 |
0 |
|
Технический лист |
- | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | 60 µA | 31 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
|
IFX1763LDV50XUMA1IC REG LINEAR 5V 500MA TSON-10 |
0 |
|
Технический лист |
- | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.48V @ 500mA | 500mA | 60 µA | 31 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
IFX54441LDV33XUMA1IC REG LINEAR 3.3V 300MA TSON-10 |
0 |
|
Технический лист |
- | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.4V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
IFX54441LDV50XUMA1IC REG LINEAR 5V 300MA TSON-10 |
0 |
|
Технический лист |
- | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.41V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
|
IFX54441LDVXUMA1IC REG LIN POS ADJ 300MA TSON-10 |
0 |
|
Технический лист |
- | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.4V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|

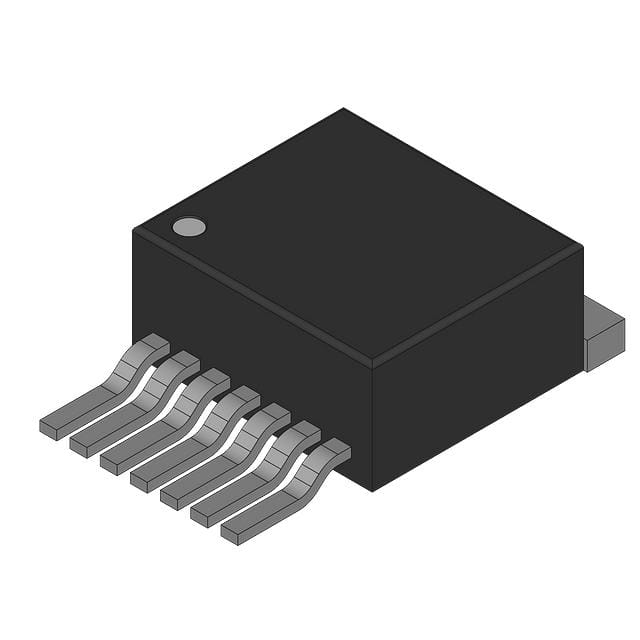

TLE42672GATMA2IC REG LINEAR 5V 400MA TO263-7-1 |
0 |
|
Технический лист |
OPTIREG™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 400mA | 400mA | 4 mA | 80 mA | 54dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-1 |
|
TLE4286GNTSA1IC REG LINEAR 5V 15MA SCT595-5 |
0 |
|
Технический лист |
OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 42V | 5V | - | 1.1V @ 10mA | 15mA | 100 µA | - | 60dB (100Hz) | Inhibit | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLS208D1LDV33XUMA1IC REG LINEAR 3.3V 800MA TSON-10 |
0 |
|
Технический лист |
OPTIREG™ | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1V @ 800mA | 800mA | 170 µA | 250 µA | 62dB (10kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-10 |
|
RT9073A-20GQZIC REG LINEAR 2V 250MA 4ZQFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.8V @ 250mA | 250mA | 3 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-ZQFN (1x1) |
|
PQ025ENAHZPHIC REG LINEAR ELECT COMP OPTO |
0 |
|
Технический лист |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQ033ENB1ZPHIC REG LINEAR ELECT COMP OPTO |
0 |
|
Технический лист |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQ070XNA2ZPHIC REG LINEAR ELECT COMP OPTO |
0 |
|
Технический лист |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQ070XNB1ZPHIC REG LINEAR ELECT COMP OPTO |
0 |
|
Технический лист |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQ1LA505MSPQIC REG LINEAR ELECT COMP OPTO |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IFX2931GV50XUMA2IC REG LINEAR 5V 100MA DSO8 |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-DSO-8 |
|
|
AS1351-ZIC REG LIN POS PROG 200MA 12QFN |
0 |
|
- |
- | 12-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Programmable | 2 | 5.5V | 1.8V | 3.3V | - | 200mA, 200mA | 200 µA | - | 70dB ~ 40dB (1KHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 12-QFN (3x3) |
|
|
AS1352V-T-ZIC REG LIN POS PROG 200MA 16QFN |
0 |
|
- |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Programmable | 4 | 5.5V | 1.8V | 3.3V | - | 200mA | 350 µA | - | 70dB ~ 40dB (1KHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
