Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPX5205M5-L-3-3IC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 150mA | 150mA | 5 µA | 2.5 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AS1374-BWLT1833IC REG LINEAR 1.8V/3.3V 6WLCSP |
0 |
|
Технический лист |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374BWLT18285IC REG LINEAR 1.8V/2.85V 6WLCSP |
0 |
|
Технический лист |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.85V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
AS13986-1833-TIC REG LINEAR 1.8V/3.3V 8WLP |
0 |
|
Технический лист |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-1225-TIC REG LINEAR 1.2V/2.5V 8WLP |
0 |
|
Технический лист |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 2.5V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-2828-TIC REG LINEAR 2.8V/2.8V 8WLP |
0 |
|
Технический лист |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 2.8V, 2.8V | - | 0.1V @ 150mA, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS1374-BWLT1818IC REG LINEAR 1.8V/1.8V 6WLCSP |
0 |
|
Технический лист |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1218IC REG LINEAR 1.2V/1.8V 6WLCSP |
0 |
|
Технический лист |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1214IC REG LINEAR 1.2V/1.4V 6WLCSP |
0 |
|
Технический лист |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.4V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|

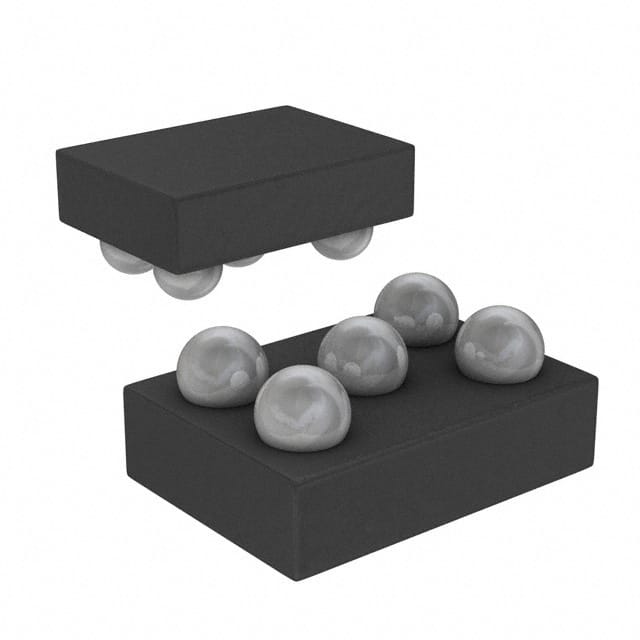

AS13985F-26-TIC REG LINEAR 2.6V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F27-TIC REG LINEAR 2.7V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F28-TIC REG LINEAR 2.8V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F33-TIC REG LINEAR 3.3V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F12-TIC REG LINEAR 1.2V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F18-TIC REG LINEAR 1.8V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F29-TIC REG LINEAR 2.9V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
AS1360-40-TIC REG LINEAR 4V 200MA SOT23-3 |
0 |
|
Технический лист |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 4V | - | 0.7V @ 200mA | 200mA | 1.5 µA | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
AS13985F30-TIC REG LINEAR 3V 150MA 5WLCSP |
0 |
|
Технический лист |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
,TO-226_bentlead.jpg)
|
LP2950ACN-L-3-3/TRIC REG LINEAR 3.3V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
LP2950ACN-L-5-0/TRIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
