Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP2960AIM-5.0IC REG LINEAR 5V 500MA 16SOIC |
0 |
|
Технический лист |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 500mA | 500mA | 600 µA | 40 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|

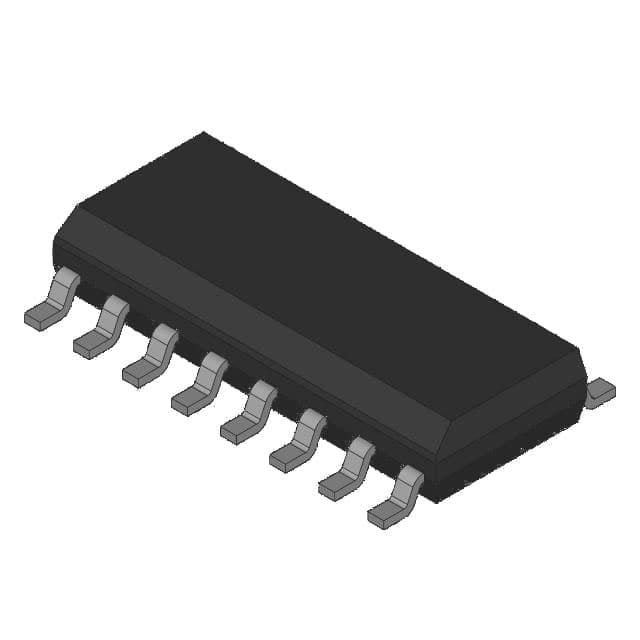

LP2960IM-5.0IC REG LINEAR 5V 500MA 16SOIC |
0 |
|
Технический лист |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 500mA | 500mA | 600 µA | 40 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
TPS70358MHKHIC REG LINEAR 3.3V/2.5V 20-CFP |
0 |
|
Технический лист |
- | 20-CDFF | Tube | Active | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.25V @ 1A, - | 1A, 2A | 250 µA | - | 65dB (1kHz), 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 20-CFP |
|

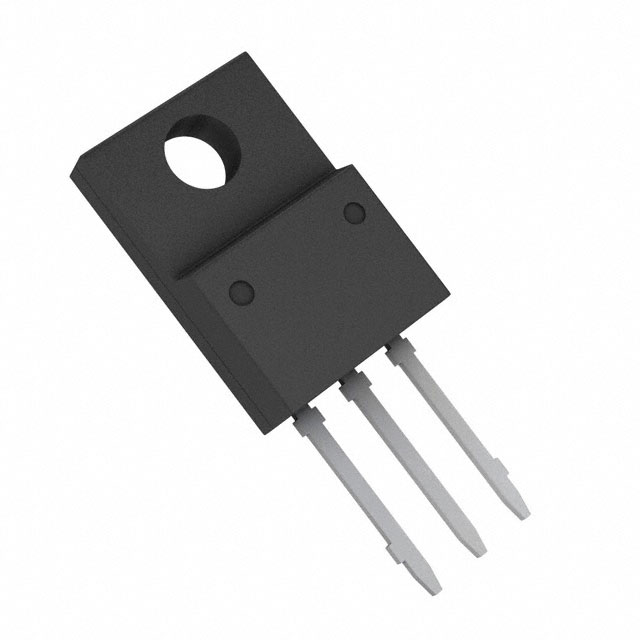

BA7808CP-E2IC REG LINEAR 8V 1A TO220CP-3 |
0 |
|
Технический лист |
- | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 23V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA7818CP-E2IC REG LINEAR 18V 1A TO220CP-3 |
0 |
|
Технический лист |
- | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 33V | 18V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA7824CP-E2IC REG LINEAR 24V 1A TO220CP-3 |
0 |
|
Технический лист |
- | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 33V | 24V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 58dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA78M12CP-E2IC REG LIN 12V 500MA TO220CP-3 |
0 |
|
Технический лист |
- | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 27V | 12V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | 800 µA | 63dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
NCV4279A50D1R2GIC REG LINEAR 5V 150MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 250 µA | 3 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
NCV4949ADR2GIC REG LINEAR 5V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 260 µA | 5 mA | - | Reset Output | Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NCV8606MNADJT2GIC REG LINEAR POS ADJ 500MA 6DFN |
0 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.25V | 5V | 0.47V @ 500mA | 500mA | 180 µA | - | 62dB ~ 40dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
|
NCV86601BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86602BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86603BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86603BD50R2GIC REG LINEAR 5V 150MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCP571MN09TBGIC REG LINEAR 0.9V 150MA 6DFN |
0 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 0.9V | - | 0.75V @ 10mA | 150mA | 1 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2.2) |
|
SP6201EM5-LIC REG LIN POS ADJ 200MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Adjustable | 1 | 6V | 2.5V | 6V | 0.5V @ 200mA | 200mA | - | - | 78dB ~ 40dB (100Hz ~ 400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
SP6201EM5-L-1-5IC REG LINEAR 1.5V 200MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Fixed | 1 | 6V | 1.5V | - | - | 200mA | 45 µA | 500 µA | 78dB ~ 40dB (100Hz ~ 400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
SP6201EM5-L-1-8IC REG LINEAR 1.8V 200MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Fixed | 1 | 6V | 1.8V | - | - | 200mA | 45 µA | 500 µA | 78dB ~ 40dB (100Hz ~ 400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
SP6201EM5-L-2-5IC REG LINEAR 2.5V 200MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Fixed | 1 | 6V | 2.5V | - | - | 200mA | - | - | 78dB ~ 40dB (100Hz ~ 400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
SP6201EM5-L-3-3IC REG LINEAR 3.3V 200MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Discontinued | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 200mA | 200mA | - | - | 78dB ~ 40dB (100Hz ~ 400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
