Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3875EMPX-2.5/NOPBIC REG LINEAR 2.5V 1.5A SOT223-5 |
0 |
|
Технический лист |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
LP3875EMPX-5.0/NOPBIC REG LINEAR 5V 1.5A SOT223-5 |
0 |
|
Технический лист |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LP3876ESX-3.3/NOPBIC REG LIN 3.3V 3A DDPAK/TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.2V @ 3A | 3A | 5 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3876ESX-5.0/NOPBIC REG LIN 5V 3A DDPAK/TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 1.2V @ 3A | 3A | 5 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3881EMRX-1.2/NOPBIC REG LIN 1.2V 800MA 8SO PWRPAD |
0 |
|
Технический лист |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.19V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
|
LP3883ESX-1.5/NOPBIC REG LIN 1.5V 3A DDPAK/TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.42V @ 3A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3883ESX-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.42V @ 3A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3892ESX-1.8/NOPBIC REG LINEAR 1.8V 1.5A DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.50V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

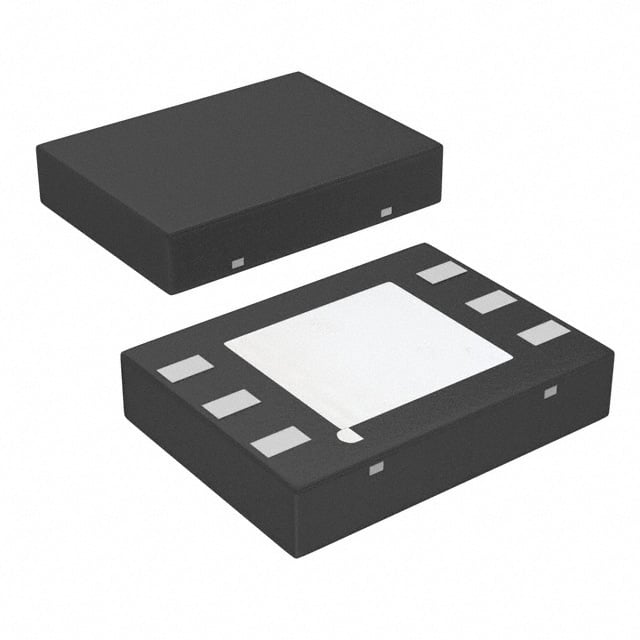

LP3981ILDX-3.3/NOPBIC REG LINEAR 3.3V 300MA 6WSON |
0 |
|
Технический лист |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 300mA | 300mA | 120 µA | 210 µA | 50dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x4) |
|
LP3982ILDX-2.5/NOPBIC REG LINEAR 2.5V 300MA 8WSON |
0 |
|
Технический лист |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.22V @ 200mA | 300mA | 270 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | 8-WSON (3x2.5) |
|
|
LP3982ILDX-2.77/NOPBIC REG LINEAR 2.77V 300MA 8WSON |
0 |
|
Технический лист |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.77V | - | 0.22V @ 200mA | 300mA | 270 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | 8-WSON (3x2.5) |
|
LP3982IMMX-3.3/NOPBIC REG LINEAR 3.3V 300MA 8VSSOP |
0 |
|
Технический лист |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.22V @ 200mA | 300mA | 270 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
LP3984IMFX-1.5/NOPBIC REG LINEAR 1.5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | 0.12V @ 150mA | 150mA | 125 µA | 150 µA | 60dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP3984IMFX-1.8/NOPBIC REG LINEAR 1.8V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.12V @ 150mA | 150mA | 125 µA | 150 µA | 60dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP3984IMFX-3.1/NOPBIC REG LINEAR 3.1V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.1V | - | 0.12V @ 150mA | 150mA | 125 µA | 150 µA | 60dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP3984ITPX-1.8/NOPBIC REG LINEAR 1.8V 150MA 4DSBGA |
0 |
|
Технический лист |
- | 4-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.12V @ 150mA | 150mA | 125 µA | 150 µA | 60dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-DSBGA |
|
|
LP3985IM5X-2.6/NOPBIC REG LINEAR 2.6V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.6V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP3985IM5X-2.9/NOPBIC REG LINEAR 2.9V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.9V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP3985IM5X-3.2/NOPBIC REG LINEAR 3.2V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.2V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP3990MFX-2.5/NOPBIC REG LINEAR 2.5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.2V @ 150mA | 150mA | 80 µA | 120 µA | 55dB ~ 35dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
