Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM9036DT-3.3IC REG LINEAR 3.3V 50MA TO252-3 |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.40V @ 50mA | 50mA | 20 µA | 2 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
LM9070S/NOPBIC REG LIN 5V 250MA DDPAK/TO263 |
0 |
|
Технический лист |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.8V @ 250mA | 250mA | 4 mA | 50 mA | 60dB (120Hz) | Enable | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LMS1585AISX-1.5/NOPBIC REG LIN 1.5V 5A DDPAK/TO263-3 |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.4V @ 5A | 5A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LMS1587ISX-1.5/NOPBIC REG LIN 1.5V 3A DDPAK/TO263-3 |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.3V @ 3A | 3A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LMS5214IMG-2.5/NOPBIC REG LINEAR 2.5V 80MA SC70-5 |
0 |
|
- |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.20V @ 100µA | 80mA | 1 µA | 10 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
LMS5258MFX-1.2/NOPBIC REG LINEAR 1.2V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | 0.20V @ 100µA | 150mA | 1 µA | 10 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LMS8117ADTX-1.8/NOPBIC REG LINEAR 1.8V 1A TO252-3 |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 1.8V | - | 1.25V @ 1A | 1A | 5 mA | 10 mA | 60 ~ 75 dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
LMS8117AMPX-3.3/NOPBIC REG LINEAR 3.3V 1A SOT223 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 1.25V @ 1A | 1A | 5 mA | 10 mA | 60 ~ 75 dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
|
LMS8117AMPX-ADJ/NOPBIC REG LINEAR POS ADJ 1A SOT223 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.25V @ 1A | 1A | 5 mA | 10 mA | 60 ~ 75 dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
LP2951ACSD-3.0/NOPBIC REG LIN POS ADJ 100MA 8WSON |
0 |
|
Технический лист |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (3V) | 29V | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
|
LP2951ACSD-3.3/NOPBIC REG LIN POS ADJ 100MA 8WSON |
0 |
|
Технический лист |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (3.3V) | 29V | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
|
LP2951ACSDX-3.0/NOPBIC REG LIN POS ADJ 100MA 8WSON |
0 |
|
Технический лист |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (3V) | 29V | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|

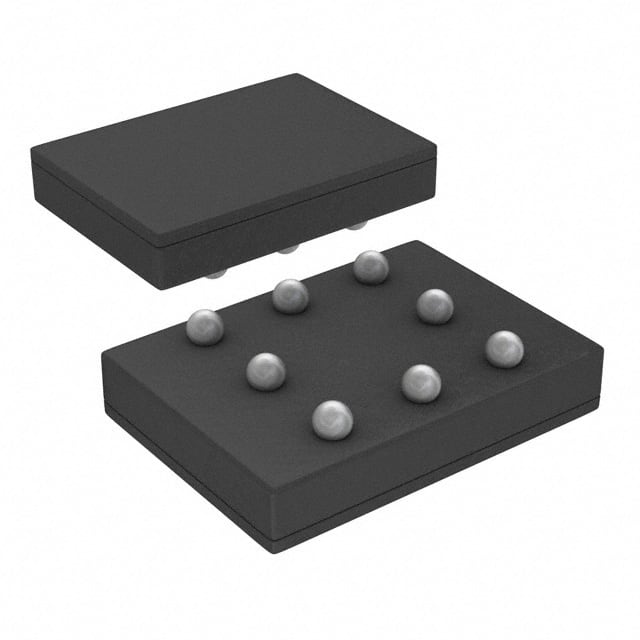

LP2967ITPX-1833/NOPBIC REG LIN 1.8V/3.3V 150MA 8USMD |
0 |
|
Технический лист |
- | 8-UFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 16V | 1.8V, 3.3V | - | 0.42V @ 150mA | 150mA | 300 µA | 5 mA | 52dB ~ 70dB (120Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-DSBGA |
|
|
LP2980AIM5-2.8/NOPBIC REG LINEAR 2.8V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.8V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2980AIM5-3.2/NOPBIC REG LINEAR 3.2V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.2V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2980AIM5-3.8/NOPBIC REG LINEAR 3.8V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.8V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2980AIM5X-3.2/NOPBIC REG LINEAR 3.2V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.2V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2980AIM5X-3.8/NOPBIC REG LINEAR 3.8V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.8V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP2980IM5-2.8/NOPBIC REG LINEAR 2.8V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.8V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2980IM5-3.2/NOPBIC REG LINEAR 3.2V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.2V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
