Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L78M24ABVIC REG LINEAR 24V 500MA TO220AB |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | - | 500mA | 6 mA | - | 50dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
KA7805ETUIC REG LINEAR 5V 1A TO220-3 |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
KA78L05AZTAIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|

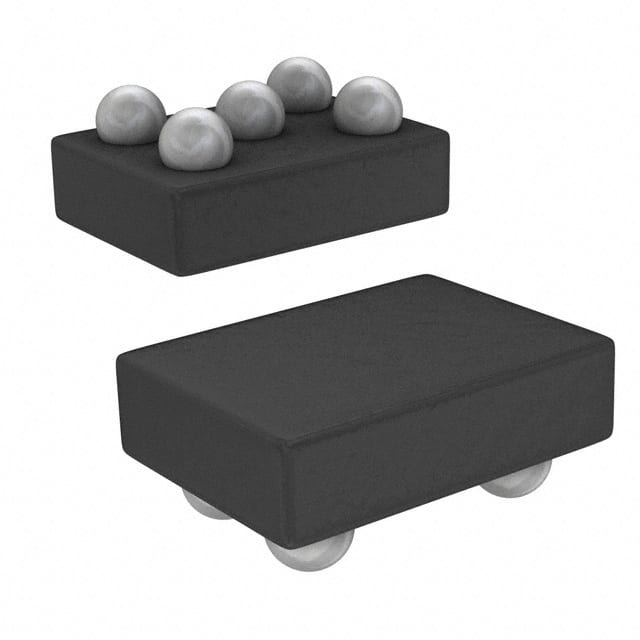

LP2980AITP-3.3/NOPBIC REG LINEAR 3.3V 50MA 5USMD |
0 |
|
Технический лист |
- | 5-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-µSMD (0.93x1.11) |
|
SC1563ISK2.5TRTIC REG LINEAR 2.5V 500MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.7V @ 500mA | 500mA | 2 µA | 150 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-23-5 |
|
SC1565I5M2.5TRTIC REG LINEAR 2.5V 1.5A TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
SC1565IST18TRTIC REG LINEAR 1.8V 1.5A SOT223-3 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-223-3 |
|
|
SC1565IST25TRTIC REG LINEAR 2.5V 1.5A SOT223-3 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-223-3 |
|
|
SC1566I5M2.5TRTIC REG LINEAR 2.5V 3A TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
|
SC1566IM-1.8TRTIC REG LINEAR 1.8V 3A TO263 |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263 |
|
FAN1084MCXIC REG LINEAR POS ADJ 4.5A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
FAN1084T15IC REG LINEAR 1.5V 4.5A TO220-3 |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN1086S25XIC REG LINEAR 2.5V 1.5A SOT223-4 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 2.5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1086SXIC REG LIN POS ADJ 1.5A SOT223-4 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7.5V | 1.25V | 6V | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1117AS5XIC REG LINEAR 5V 1A SOT223-4 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1117ATIC REG LINEAR POS ADJ 1A TO220-3 |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 18V | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN1581M25XIC REG LINEAR 2.5V 5A TO263-5 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
FAN1616AD25XIC REG LINEAR 2.5V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1616ADXIC REG LIN POS ADJ 500MA TO252AA |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 16.8V | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1616AS5XIC REG LINEAR 5V 500MA SOT223-4 |
0 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
