Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ1X181M2ZPHIC REG LINEAR 1.8V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 1.8V | - | - | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U441M2ZPHIC REG LINEAR 4.4V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.4V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U471M2ZPHIC REG LINEAR 4.7V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.7V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U491M2ZPHIC REG LINEAR 4.9V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.9V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U361M2ZPHIC REG LINEAR 3.6V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.6V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U521M2ZPHIC REG LINEAR 5.2V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5.2V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
PQ1M335M2SPQIC REG LINEAR 3.3V 500MA SOT89 |
0 |
|
Технический лист |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 500mA | 500mA | 1 mA | - | 65dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
PQ1MX55M2SPQIC REG LIN POS ADJ 500MA SOT89 |
0 |
|
Технический лист |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 9V | 1.3V | 5V | 0.7V @ 500mA | 500mA | 1.2 mA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
|
PQ015Y053ZZHIC REG LINEAR 1.5V 5A TO263 |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | - | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | TO-263 |
|
|
PQ1U201M2ZPHIC REG LINEAR 2V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U291M2ZPHIC REG LINEAR 2.9V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.9V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|

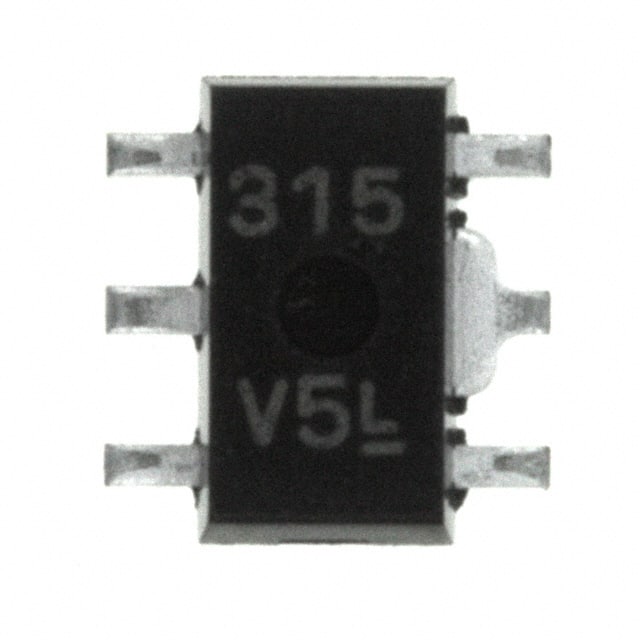

PQ1N333MASPQIC REG LINEAR 3.3V 350MA SOT89 |
0 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 350mA | 350mA | 2 mA | - | 55dB (400Hz) | Reset | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
|
PQ1U221M2ZPHIC REG LINEAR 2.2V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.2V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U271M2ZPHIC REG LINEAR 2.7V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.7V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U321M2ZPHIC REG LINEAR 3.2V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.2V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
PQ200WNA1ZPHIC REG LINEAR POS ADJ 1A SC63 |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | - | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|
|
PQ1U231M2ZPHIC REG LINEAR 2.3V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.3V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U311M2ZPHIC REG LINEAR 3.1V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.1V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U341M2ZPHIC REG LINEAR 3.4V 150MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.4V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ2L3182MSPQIC REG LINEAR 1.8V/3.3V SOT89 |
0 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 9V | 1.8V, 3.3V | - | 1V @ 200mA, 1V @ 200mA | 250mA, 250mA | 400 µA | - | 60dB (400kHz) | - | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-89 |
