Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2311M8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
0 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
AP2401ASN-7IC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
AP2141AS-13IC PWR SWITCH P-CHANNEL 1:1 8SO |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
AP2301M8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
0 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ULN2003VAS16-13IC INTEGRATED CIRCUIT |
0 |
|
- |
16-SOIC (0.154", 3.90mm Width) | ULx200xA | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 7 | 1:1 | Low Side | Darlington | Parallel | 20V (Max) | Not Required | 700mA | - | Inverting | - | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
AP2141AW-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
0 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP2401B14KTR-E1IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
AP2401B14KTR-G1IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
AP2401B34DNTR-G1IC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Технический лист |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2018-6 |
|

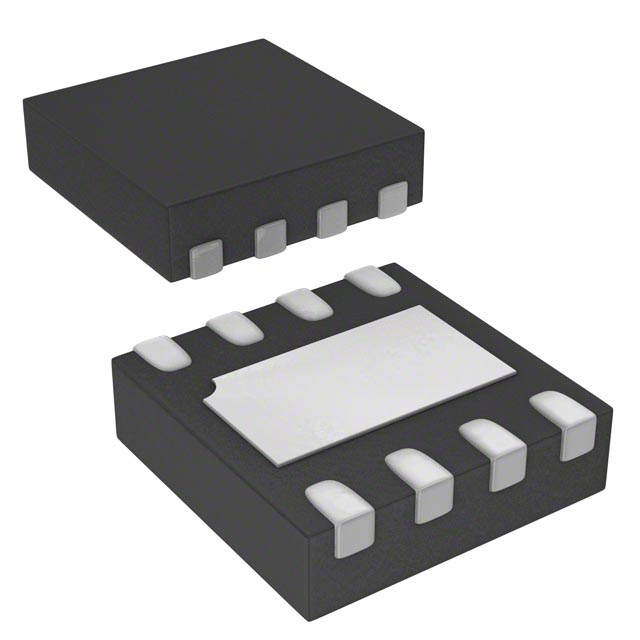

AP2411AFGE-7IC PWR SWITCH P-CHAN 1:1 8UDFN |
0 |
|
- |
8-UDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN3030-8 (Type E) |
|
|
AP2822DKETR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
0 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2822GKETR-G1-01IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
0 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
AP91352MN1-DT8-7RIC PWR REGULATOR N-CH 1:1 12WQFN |
0 |
|
- |
12-WFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3.6V ~ 12V | Not Required | 2.5A | 50mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | W-QFN3020-12 |
|
BTS118DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2.4A | 70mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
BTS134DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 3.5A | 35mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
BTS142DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 4.6A | 23mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
BTS3134NXTIC PWR SWTCH N-CHAN 1:1 SOT223-4 |
0 |
|
- |
TO-261-4, TO-261AA | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 3A | 35mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
MAX14713EWL+IC PWR DRIVER 1:2 15WLP |
0 |
|
Технический лист |
15-WFBGA, WLBGA | - | Strip | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|
|
MAX14714EWL+IC PWR PATH SELECTOR 1:2 15WLP |
0 |
|
Технический лист |
15-WFBGA, WLBGA | - | Strip | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|
|
NCP81391AMNTXGIC PWR DRIVER N-CHAN 1:1 31QFN |
0 |
|
Технический лист |
34-PowerVFQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side or Low Side | N-Channel | Logic | 20V | 4.5V ~ 13.2V | 65A | 1.7mOhm, 2mOhm | Non-Inverting | PWM Input | Over Temperature, UVLO | -40°C ~ 100°C (TA) | - | - | Surface Mount | 31-QFN (5x5) |
