Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

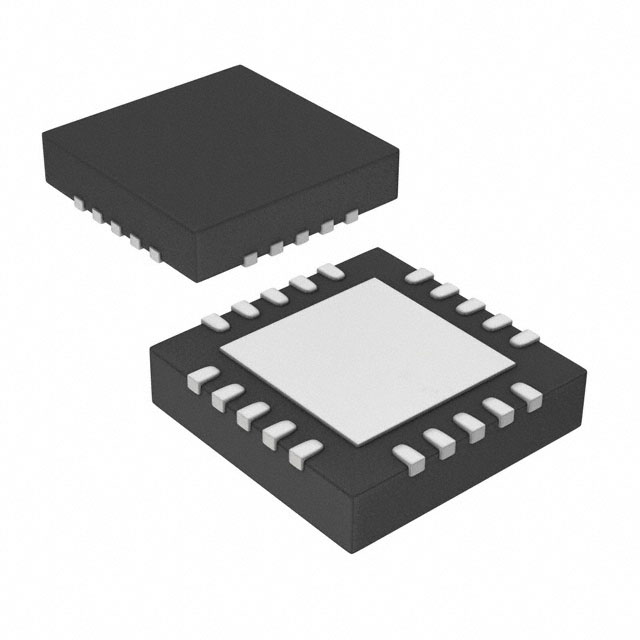

UCS2112T-2-V/G4-V02IC PWR SWITCH 1:1 20QFN |
0 |
|
Технический лист |
20-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 2 | 1:1 | High Side | - | I2C, SMBus | 2.9V ~ 5.5V | 4.5V ~ 5.5V | 3A | 40mOhm | - | - | Current Limiting (Adjustable), UVLO | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
|
UCS2112-2-V/G4-V02IC PWR SWITCH 1:1 20QFN |
0 |
|
Технический лист |
20-VFQFN Exposed Pad | - | Tube | Active | USB Switch | 2 | 1:1 | High Side | - | I2C, SMBus | 2.9V ~ 5.5V | 4.5V ~ 5.5V | 3A | 40mOhm | - | - | Current Limiting (Adjustable), UVLO | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
BSP752RNUMA1IC PWR SWITCH N-CHAN 1:1 DSO-8 |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 52V | Not Required | 1.3A | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-24 |
|
RT9733GFIC POWER SWITCH USB 8MSOP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RT9733GSIC POWER SWITCH USB 8SOP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RT9741AGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Технический лист |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
RT9741CGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Технический лист |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 700mA | 120mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
RT9741DGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Технический лист |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
BTF60702EKVXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
0 |
|
- |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5 ~ 36V | Not Required | 2.3A | 120mOhm | Non-Inverting | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14-40-EP |
|
|
AOZ1335DIIC SMART LOAD SW 2CH 14DFN |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

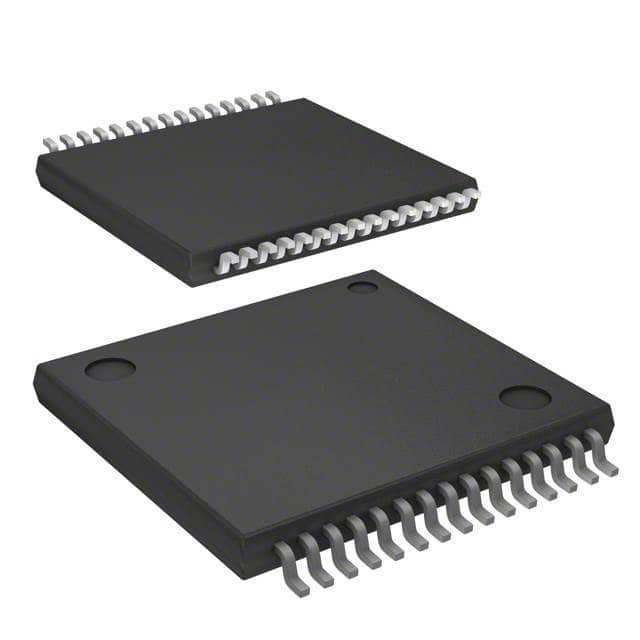

VND5004DSP30TR-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Технический лист |
30-PowerSOP (0.630", 16.00mm Width) | VIPOWER™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|

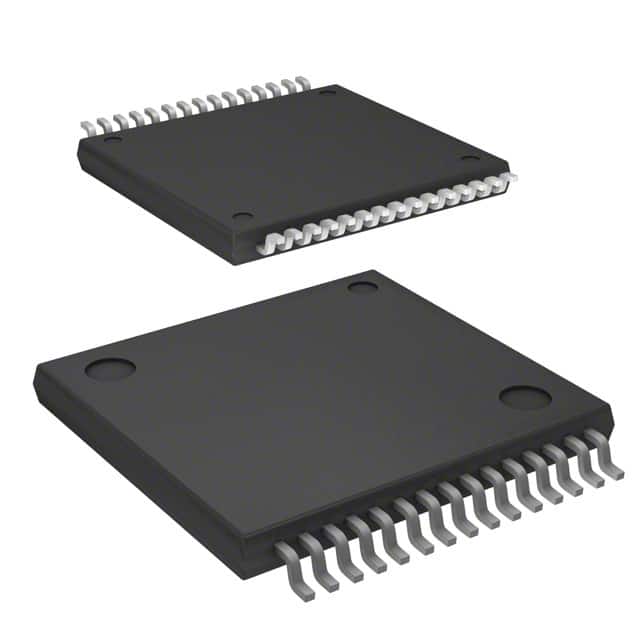

VND5E004C30TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO30 |
0 |
|
Технический лист |
30-PowerSOP (0.630", 16.00mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 65A | 3mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|
L9301IC PWR DRIVER N-CHANNEL PWRSSO36 |
0 |
|
Технический лист |
36-PowerFSOP (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 12 | - | High Side or Low Side | N-Channel | SPI, Parallel | 5V ~ 18V | 4.75V ~ 5.25V | - | - | - | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | PowerSSO-36 EPD |
|
|
VND5004CSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Технический лист |
30-PowerSOP (0.630", 16.00mm Width) | VIPower™ | Tube | Discontinued | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 27V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | MultiPowerSO-30 |
|
|
VND5004DSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Технический лист |
30-PowerSOP (0.630", 16.00mm Width) | VIPOWER™ | Tube | Discontinued | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|
|
VND5E004C30-EIC PWR DRVR N-CH 1:1 MULTIPWRSO |
0 |
|
Технический лист |
30-PowerSOP (0.630", 16.00mm Width) | - | Tube | Discontinued | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 65A | 3mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|
NCV8402AMNT2GIC PWR DRIVER N-CHAN 1:1 6DFN |
0 |
|
Технический лист |
6-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
|
TLE75242EMDXUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Технический лист |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24 |
|
|
TLE75242EMHXUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Технический лист |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24 |
|
|
TLE75620EMTXUMA1IC PWR DRIVER N-CHAN 1:8 SSOP14 |
0 |
|
Технический лист |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-14 |
