Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3043-20-61-C21-R65LINE FILTER 20A DIN RAIL |
16 |
|
Технический лист |
FN3040 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 20 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | DIN Rail | Terminal Block | - |
|
B84144A0016R140LINE FILTER 16A CHASSIS MOUNT |
6 |
|
Технический лист |
B84144 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 16 A | 50/60Hz | General Purpose | cUR, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3025HP-40-71LINE FILTER 40A CHASSIS MOUNT |
7 |
|
Технический лист |
FN 3025 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 40 A | DC ~ 60Hz | General Purpose | CE,CSA, ENEC,UKCA, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3041-30-61-C21-R65LINE FILTER 30A CHASSIS MOUNT |
16 |
|
Технический лист |
FN3040 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 30 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3042-30-61-C21-R65LINE FILTER 30A DIN RAIL |
16 |
|
Технический лист |
FN3040 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 30 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | DIN Rail | Terminal Block | - |
|
|
FN3043-30-61-C21-R65LINE FILTER 30A DIN RAIL |
16 |
|
Технический лист |
FN3040 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 305 V | 530 V | 30 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | DIN Rail | Terminal Block | - |
|
|
FN3026HP-40-71LINE FILTER 40A DIN RAIL |
10 |
|
Технический лист |
FN 3026 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 40 A | DC ~ 60Hz | General Purpose | CE,CSA, ENEC,UKCA, UR | -25°C ~ 100°C | DIN Rail | Terminal Block | - |
|
RTEN-5060LINE FILTER 500VAC/VDC 60A CHASS |
5 |
|
Технический лист |
RTEN | Bulk | Active | Three Phase (Delta) | Single Stage | 500V | 500V | - | - | 60 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
RTAN-5040LINE FILTER 500VAC/VDC 40A CHASS |
10 |
|
Технический лист |
RTAN | Bulk | Active | Three Phase (Delta) | Single Stage | 500V | 500V | - | - | 40 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FMBD-B92A-1612LINE FILTER 300V/520VAC 16A CHAS |
2 |
|
Технический лист |
FMBD NEO | Bulk | Active | Three Phase (Wye) | Two Stage | - | 300V, 520V | - | - | 16 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.3mH, L2 - 12µH |
|

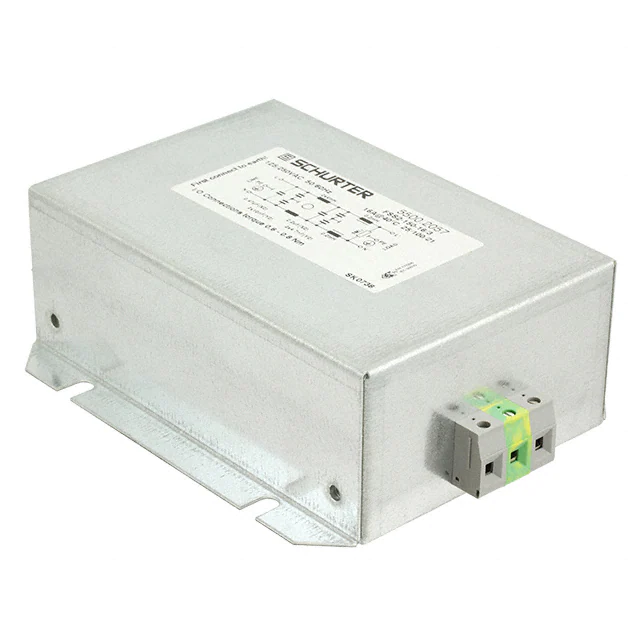

5500.2057LINE FILTER 125V/250VAC 16A CHAS |
10 |
|
Технический лист |
FSS | Bulk | Active | Single Phase | Two Stage | - | 125V, 250V | - | - | 16 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FD00DD025LINE FILTER 80VDC 25A CHASS MNT |
9 |
|
Технический лист |
FD | Box | Active | DC | Single Stage | 80V | - | - | - | 25 A | - | General Purpose | cUR, TUV, UR | - | Chassis Mount | Threaded Post (8-32) | - |
|
B86305L0030R000LINE FILTER 30A CHASSIS MOUNT |
4 |
|
Технический лист |
B86305 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | - | 520 V | 30 A | 50 ~ 60Hz | Converter | cURus | -25°C ~ 100°C | Chassis Mount | Terminal Block | 130µH |
|
B84143A0025R000LINE FILTER 480V/275VAC 25A CHAS |
6 |
|
Технический лист |
B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 480V, 275V | 275 V | 480 V | 25 A | 50 ~ 60Hz | Inverters, Power Drive Systems | cUL, ENEC, UL | - | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|
|
FD00DD050LINE FILTER 80VDC 50A CHASS MNT |
11 |
|
Технический лист |
FD | Box | Active | DC | Single Stage | 80V | - | - | - | 50 A | - | General Purpose | cUR, TUV, UR | - | Chassis Mount | Threaded Post (8-32) | - |
|
RSHN-2040LINE FILTER 250VAC/VDC 40A CHASS |
9 |
|
Технический лист |
RSHN | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 40 A | - | General Purpose | - | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
B86301U0045R000LINE FILTER 45A CHASSIS MOUNT |
4 |
|
Технический лист |
B86301 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | - | 520 V | 45 A | 50 ~ 60Hz | General Purpose | cURus | -25°C ~ 100°C | Chassis Mount | Terminal Block | 130µH |
|
|
FN3280H-16-29-R69LINE FILTER 16A CHASSIS MOUNT |
6 |
|
Технический лист |
FN 3280 | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | 300 V | 520 V | 16 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

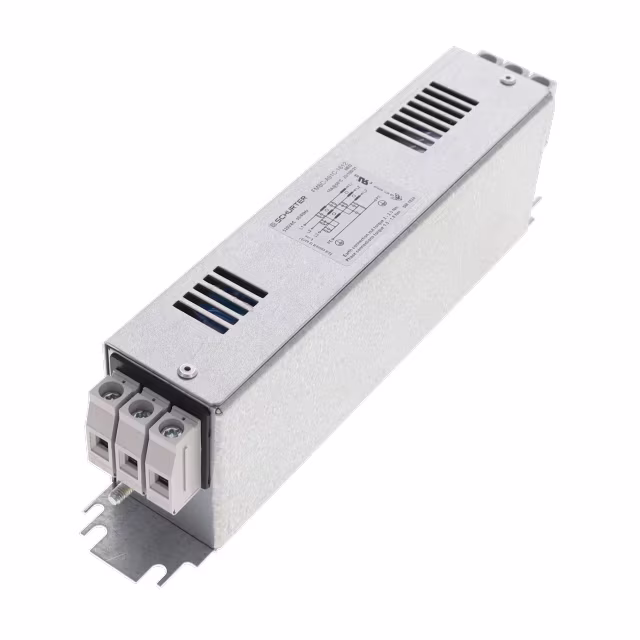

FMBC-A91C-1612LINE FILTER 480V/520VAC 16A CHAS |
5 |
|
Технический лист |
FMBC NEO | Bulk | Active | Three Phase (Delta) | Two Stage | - | 480V, 520V | - | - | 16 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 1.9mH, L2 - 10µH |
|
RTHN-5020LINE FILTER 500VAC/VDC 20A CHASS |
4 |
|
Технический лист |
RTHN | Bulk | Active | Three Phase (Delta) | Two Stage | 500V | 500V | - | - | 20 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
