Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2520-20-07-C1111LINE FLTR 400VDC 277VAC 20A CHAS |
9 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 20 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Wire Leads | L1 - 2.4mH, L2 - 2.4mH |
|
|
B84742A0016R725LINE FILTER 250VAC/VDC 16A DIN |
3 |
|
Технический лист |
B84742AxR725 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 16 A | 50/60Hz | Converter | UL | - | DIN Rail | Terminal Block | - |
|
|
FN2640-20-103-C11LINE FILTER 250VAC 20A CHASS MNT |
20 |
|
Технический лист |
FN2640 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 60Hz | General Purpose | CE, CQC, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | IEC 320-C14, Terminal Block | 2.4mH |
|
|
RTEN-5006DLINE FILTER 500VAC/VDC 6A DIN |
10 |
|
Технический лист |
RTEN | Bulk | Active | Three Phase (Delta) | Single Stage | 500V | 500V | - | - | 6 A | - | General Purpose | EN, UL | -25°C ~ 85°C | DIN Rail | Terminal Block | - |
|

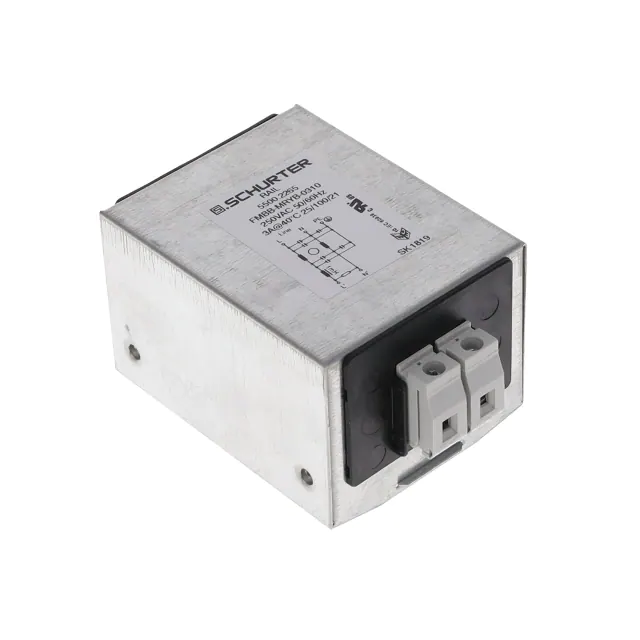

5500.2265LINE FILTER 125V/250VAC 3A DIN |
6 |
|
Технический лист |
FMBB RAIL | Bulk | Active | Single Phase | Two Stage | - | 125V, 250V | - | - | 3 A | - | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | DIN Rail | Terminal Block | 12mH |
|
|
FN2660-20-05-C0909LINE FILTER 250VAC 20A CHASS MNT |
14 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Quick Connect | L1 - 2.4mH, L2 - 2.4mH |
|
F1400BB06LINE FILTER 250VAC 6A CHASS MNT |
2 |
|
Технический лист |
F1400 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Wire Leads | - |
|
|
FN2660-16-07-C0909LINE FILTER 250VAC 16A CHASS MNT |
15 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Wire Leads | L1 - 4mH, L2 - 4mH |
|
|
FN2520-15-103-C1111LINE FLTR 400VDC 277VAC 15A CHAS |
11 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 15 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Terminal Block | L1 - 4mH, L2 - 4mH |
|
|
FN2415B-6-29LINE FILTER 250VAC 6A CHASS MNT |
20 |
|
Технический лист |
FN 2415 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN2520-20-08-C1111LINE FLTR 400VDC 277VAC 20A CHAS |
12 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 20 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Threaded Post (M4) | L1 - 2.4mH, L2 - 2.4mH |
|
|
FN2660-20-07-C0909LINE FILTER 250VAC 20A CHASS MNT |
15 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Wire Leads | L1 - 2.4mH, L2 - 2.4mH |
|
|
FN2660-15-103-C0909LINE FILTER 250VAC 15A CHASS MNT |
13 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Terminal Block | L1 - 4mH, L2 - 4mH |
|
|
FN2660-16-08-C0909LINE FILTER 250VAC 16A CHASS MNT |
15 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C20, Threaded Post (M4) | L1 - 4mH, L2 - 4mH |
|

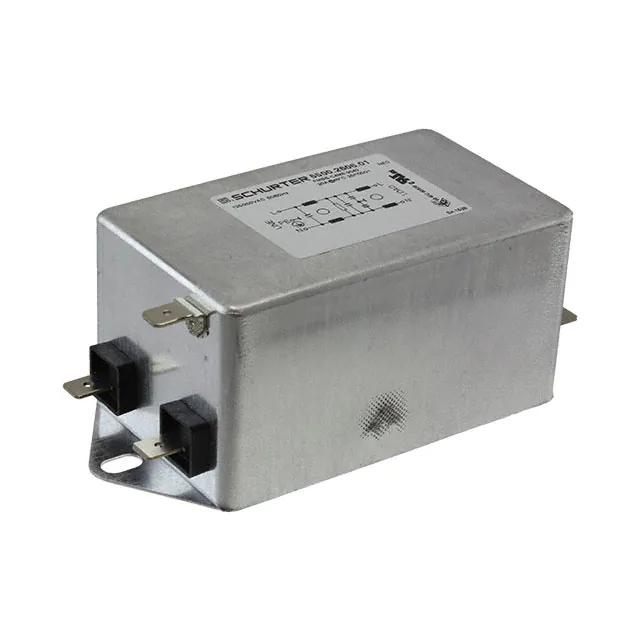

5500.2606.01LINE FILTER 125V/250VAC 20A CHAS |
19 |
|
Технический лист |
FMBB NEO | Bulk | Active | Single Phase | Two Stage | - | 125V, 250V | - | - | 20 A | - | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
|
|
FN2520-25-07-C1111LINE FLTR 400VDC 277VAC 25A CHAS |
15 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 25 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Wire Leads | L1 - 1.5mH, L2 - 1.5mH |
|
|
FN2500-32-103-C13LINE FLTR 400VDC 277VAC 32A CHAS |
16 |
|
Технический лист |
FN2500 | Bulk | Active | Single Phase | Single Stage | 400V | 277V | - | - | 32 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | 1.5mH |
|
|
FN2660-20-08-C0909LINE FILTER 250VAC 20A CHASS MNT |
15 |
|
Технический лист |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C20, Threaded Post (M4) | L1 - 2.4mH, L2 - 2.4mH |
|
|
FN2520-25-08-C1111LINE FLTR 400VDC 277VAC 25A CHAS |
15 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 25 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Threaded Post (M4) | L1 - 1.5mH, L2 - 1.5mH |
|
|
FN2520-20-103-C1111LINE FLTR 400VDC 277VAC 20A CHAS |
6 |
|
Технический лист |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 20 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Terminal Block | L1 - 2.4mH, L2 - 2.4mH |
