Фототранзисторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Ток - темный (Id) (макс.) | Длина волны | Угол обзора | Мощность - макс. | Тип крепления | Ориентация | Рабочая температура | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

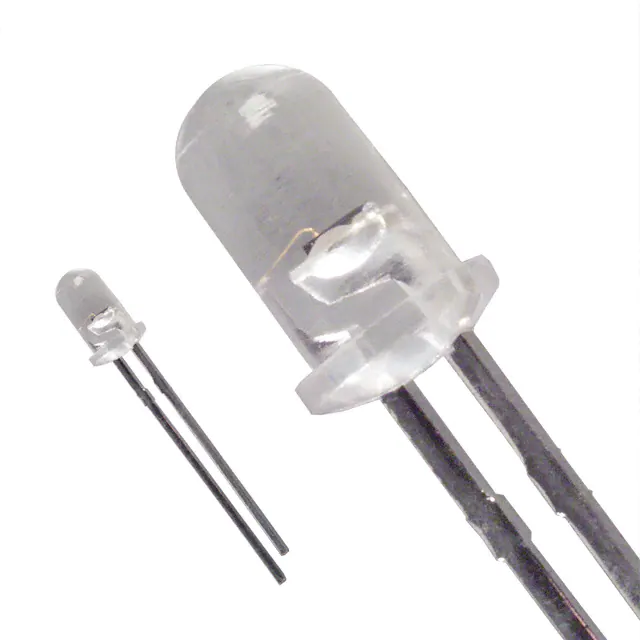

SDP8405-002SENSOR PHOTO 935NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | 14 mA | 100 nA | 935nm | 20° | 70 mW | Through Hole | Top View | -40°C ~ 85°C | - | - |
|
|
SDP8405-003SENSOR PHOTO 935NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | 24 mA | 100 nA | 935nm | 20° | 70 mW | Through Hole | Top View | -40°C ~ 85°C | - | - |
|
|
SDP8405-013SENSOR PHOTO 935NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 920 µA | 100 nA | 935nm | 20° | 70 mW | Through Hole | Top View | -40°C ~ 85°C | - | - |
|
|
SDP8405-014SENSOR PHOTO 935NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 1.85 mA | 100 nA | 935nm | 20° | 70 mW | Through Hole | Top View | -40°C ~ 85°C | - | - |
|

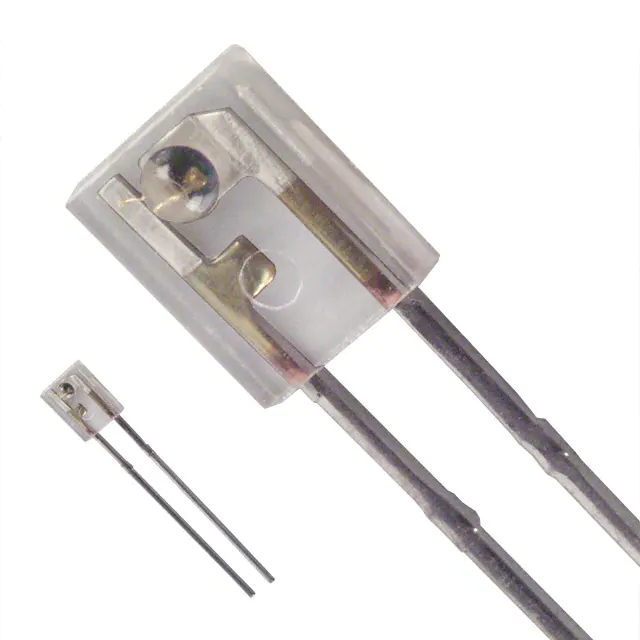

SDP8406-002SENSOR PHOTO 935NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 3.6 mA | 100 nA | 935nm | 50° | 100 mW | Through Hole, Right Angle | Side View | -40°C ~ 85°C | - | - |
|
|
SDP8406-003SENSOR PHOTO 935NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 6.5 mA | 100 nA | 935nm | 50° | 100 mW | Through Hole, Right Angle | Side View | -40°C ~ 85°C | - | - |
|

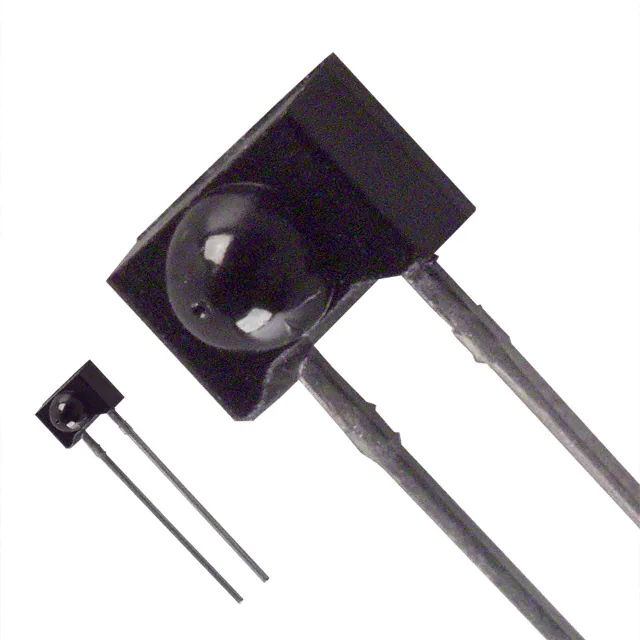

SDP8436-002SENSOR PHOTO 880NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 10 mA | 100 nA | 880nm | 18° | 100 mW | Through Hole, Right Angle | Side View | -40°C ~ 85°C | - | - |
|
|
SDP8436-003SENSOR PHOTO 880NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | 30 V | 17 mA | 100 nA | 880nm | 18° | 100 mW | Through Hole, Right Angle | Side View | -40°C ~ 85°C | - | - |
|
SDP8476-201SENSOR PHOTO 935NM SIDE VIEW RAD |
0 |
|
- |
- | Radial | Bulk | Obsolete | 30 V | 6 mA | 100 nA | 935nm | 20° | 100 mW | Through Hole | Side View | -40°C ~ 85°C | - | - |
|
SD1440-003LSENSOR PHOTO TOP VIEW COAXIAL |
0 |
|
Технический лист |
- | Coaxial, Metal Can | Bulk | Obsolete | 30 V | 3 mA | 100 nA | - | 24° | 75 mW | Through Hole | Top View | -55°C ~ 125°C | - | - |
|
SD2440-003SENSOR PHOTO TOP VIEW MINI-PILL |
0 |
|
Технический лист |
- | Mini-pill | Bulk | Obsolete | 30 V | 4 mA | 100 nA | - | 48° | 125 mW | Surface Mount | Top View | -55°C ~ 125°C | - | - |
|
|
SD2440-004SENSOR PHOTO TOP VIEW MINI-PILL |
0 |
|
Технический лист |
- | Mini-pill | Bulk | Obsolete | 30 V | 7 mA | 100 nA | - | 48° | 125 mW | Surface Mount | Top View | -55°C ~ 125°C | - | - |
|
SD5491-004SENSOR PHOTO 935NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Obsolete | 30 V | 4 mA | 100 nA | 935nm | 12° | 150 mW | Through Hole | Top View | -55°C ~ 125°C | - | - |
|
PT381SENSOR PHOTO 800NM TOP VIEW T1 |
0 |
|
Технический лист |
- | T-1 | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 40° | 75 mW | Through Hole | Top View | -25°C ~ 85°C | - | - |
|
PT4810E0000FSENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
- |
- | Radial | Tube | Obsolete | 35 V | 50 mA | 1 µA | 800nm | 70° | 75 mW | Through Hole | Side View | - | - | - |
|

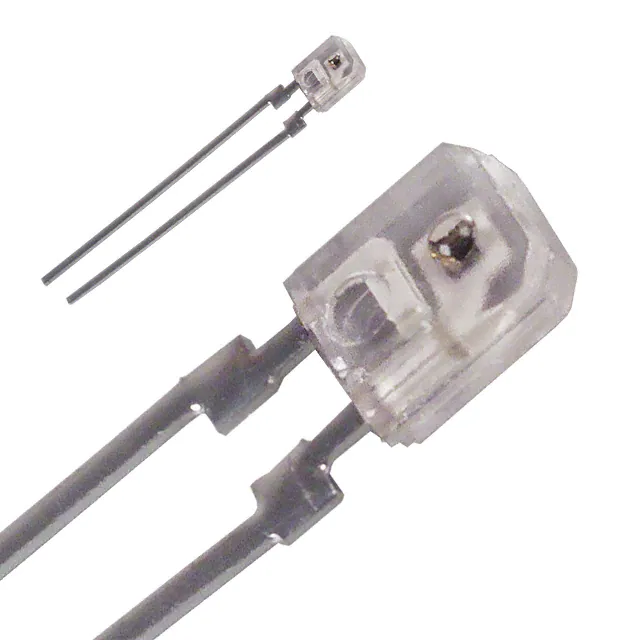

PT4800E0000FSENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|

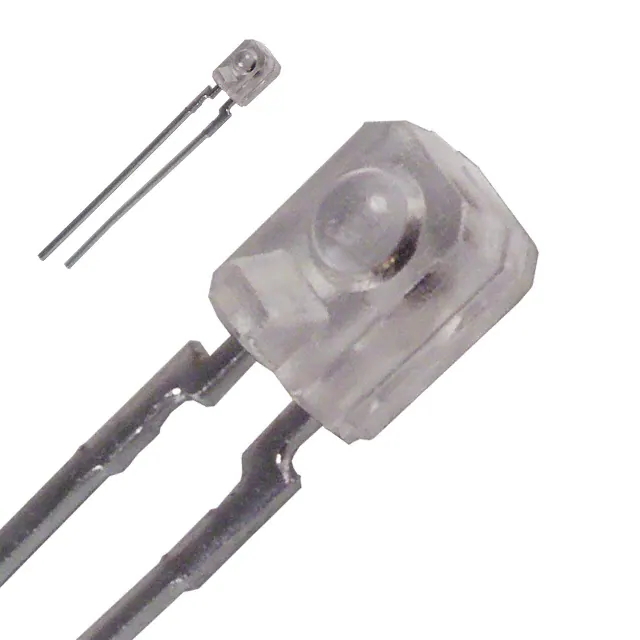

PT480E00000FSENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
- |
- | Radial | Tube | Obsolete | 35 V | 20 mA | 100 nA | 800nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|
PT480FE0000FSENSOR PHOTO 860NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | Bag | Obsolete | 35 V | 20 mA | 100 nA | 860nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|

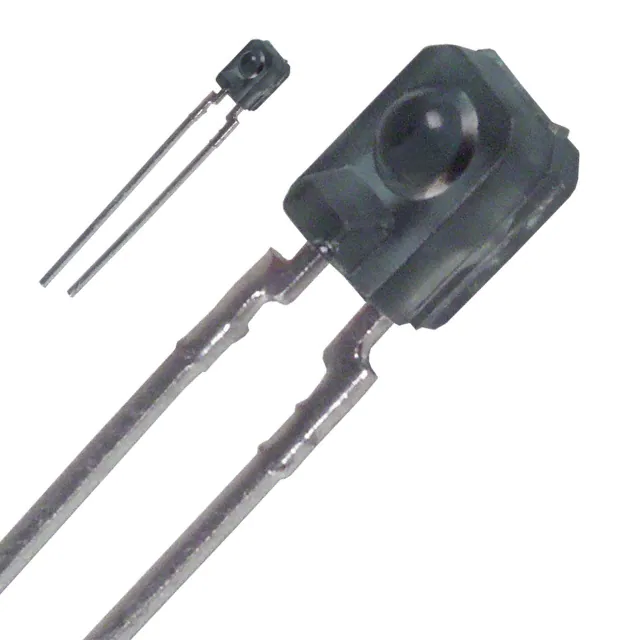

PT481E00000FSENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
- |
- | Radial | Tube | Obsolete | 35 V | 50 mA | 1 µA | 800nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
|

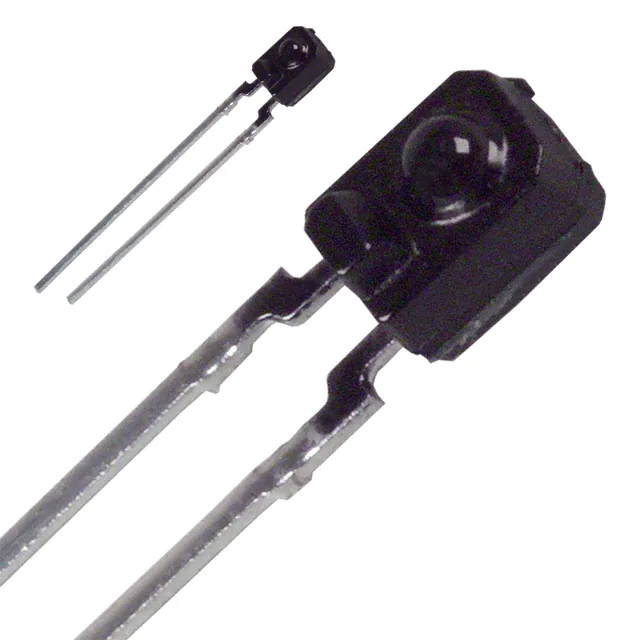

PT481FE0000FSENSOR PHOTO 860NM SIDE VIEW RAD |
0 |
|
- |
- | Radial | Tube | Obsolete | 35 V | 50 mA | 1 µA | 860nm | 70° | 75 mW | Through Hole | Side View | -25°C ~ 85°C | - | - |
