Фототранзисторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Ток - темный (Id) (макс.) | Длина волны | Угол обзора | Мощность - макс. | Тип крепления | Ориентация | Рабочая температура | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L14F2SENSOR PHOTO 880NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 25 V | - | 100 nA | 880nm | 16° | 300 mW | Through Hole | Top View | -65°C ~ 125°C | - | - |
|

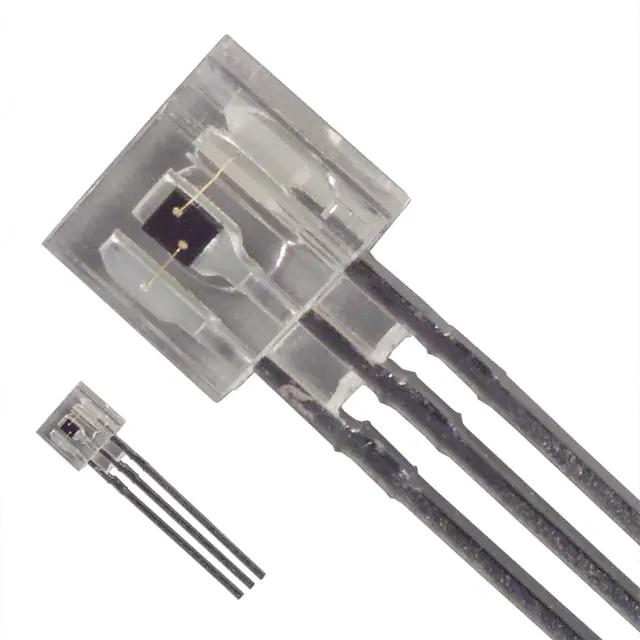

PNA1605FSENSOR PHOTO 900NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 140° | 100 mW | Through Hole | Side View | - | - | - |
|
PNZ12700SSENSOR PHOTO 800NM TOP VIEW AXL |
0 |
|
Технический лист |
- | Axial, Flat Leads | - | Obsolete | 20 V | 20 mA | 100 nA | 800nm | 28° | 50 mW | Through Hole | Top View | - | - | - |
|

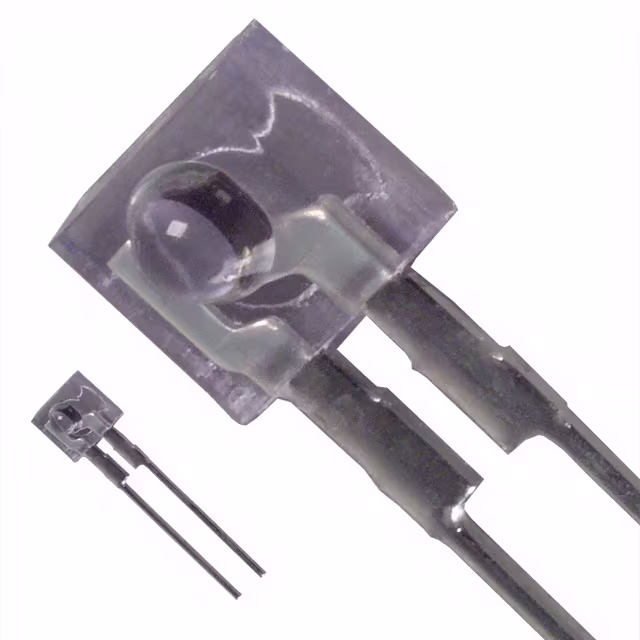

PNZ154SENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 800nm | 54° | 100 mW | Through Hole | Side View | - | - | - |
|
PNA1801LSENSOR PHOTO 800NM TOP VIEW T1 |
0 |
|
Технический лист |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|

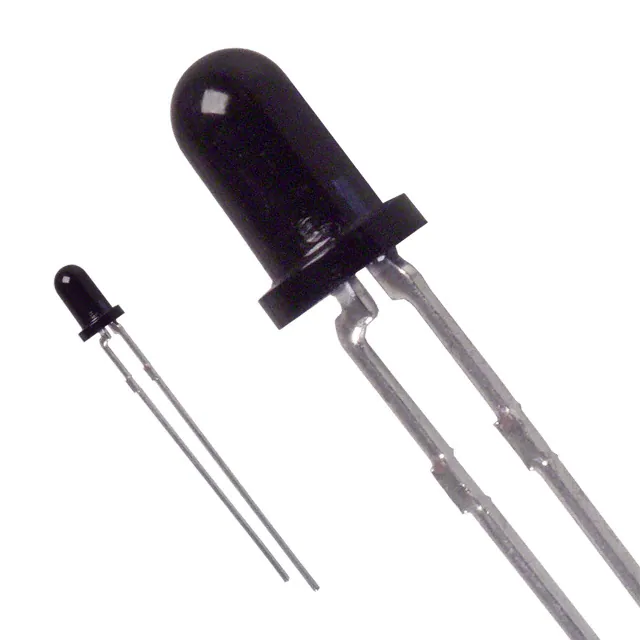

QSC113SENSOR PHOTO 880NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 8° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
QSC114SENSOR PHOTO 880NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 8° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
QSD122SENSOR PHOTO 880NM TOP VIEW RAD |
0 |
|
Технический лист |
- | Radial, 5mm Dia (T 1 3/4) | - | Obsolete | 30 V | - | 100 nA | 880nm | 24° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
QSD722SENSOR PHOTO 880NM TOP VIEW TO18 |
0 |
|
Технический лист |
- | TO-18-2 | - | Obsolete | 30 V | - | 100 nA | 880nm | 40° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
QSD723SENSOR PHOTO 880NM TOP VIEW TO18 |
0 |
|
Технический лист |
- | TO-18-2 | - | Obsolete | 30 V | - | 100 nA | 880nm | 40° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
PNA1401LSENSOR PHOTO 800NM TOP TO18-2 |
0 |
|
Технический лист |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|

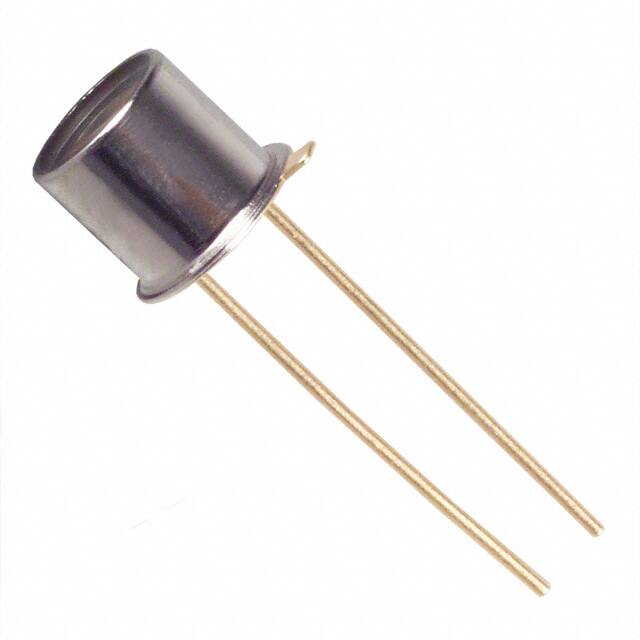

PNA1401LFSENSOR PHOTO 800NM TOP TO18-2 |
0 |
|
Технический лист |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
|
PNZ102SENSOR PHOTO 800NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108SENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108FSENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108CLSENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 160° | 100 mW | Through Hole | Top View | - | - | - |
|
|
PNZ109CLSENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 160° | 100 mW | Through Hole | Top View | - | - | - |
|
|
PNZ109LSENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Технический лист |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
PNZ147SENSOR PHOTO 800NM TOP VIEW AXL |
0 |
|
Технический лист |
- | Axial, Flat Leads | - | Obsolete | 20 V | 20 mA | 500 nA | 800nm | 48° | 50 mW | Through Hole | Top View | - | - | - |
|
PNZ150SENSOR PHOTO 800NM SIDE VIEW RAD |
0 |
|
Технический лист |
- | Radial | - | Obsolete | 20 V | 20 mA | 1 µA | 800nm | 70° | 100 mW | Through Hole | Side View | - | - | - |
