Фотоника - счетчики, детекторы, SPCM (модуль подсчета одиночных фотонов)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Эффективность обнаружения фотонов | Диапазон длин волн | Скорость счета темных частиц | Длина волны - пиковая | Макс. скорость счета | Мертвое время | Напряжение - Питание | Выход | Тип детектора | Активная область | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFBR-S4N22P014MSIPM PCB 1X1 2MM 40UM NUV-MT |
1,843 |
|
Технический лист |
- | Bulk | Active | Single Photon Detector | 63% | 420nm | 0.5Mcps | 420nm | - | - | - | - | - | 40µm | - | -20°C ~ 60°C |
|

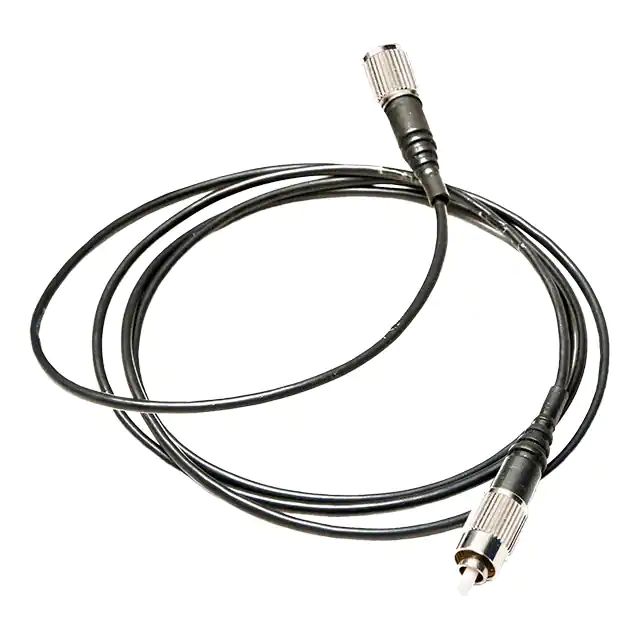

SPCM-QC9 FIBERSPCM-QC9 MULTIMODE 100 FC + FC |
12 |
|
Технический лист |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|

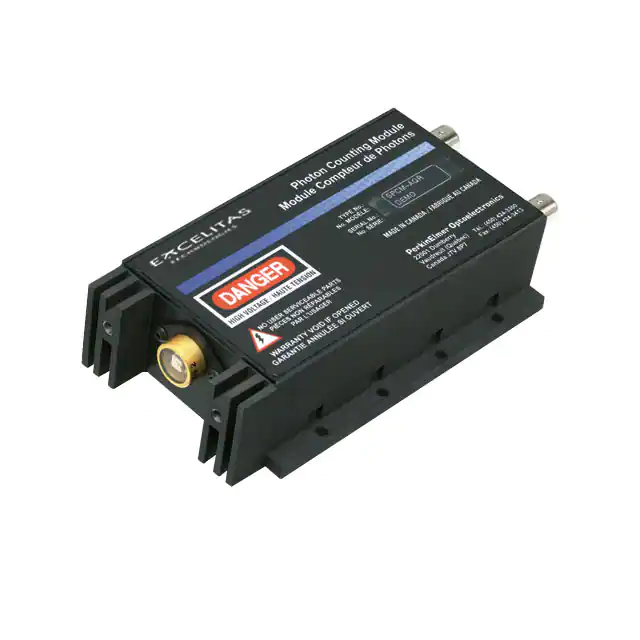

SPCM-AQRH-10PHOTON COUNT MODULE <1500CPS |
4 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-FCPHOTON COUNT MODULE <1500CPS FC |
6 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-11-FCPHOTON COUNT MODULE 1000CPS FC |
5 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-12-FCPHOTON COUNT MODULE 500CPS FC |
2 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-13PHOTON COUNT MODULE 250CPS |
2 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
SPCM-AQRH-13-FCPHOTON COUNT MODULE 250CPS FC |
17 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

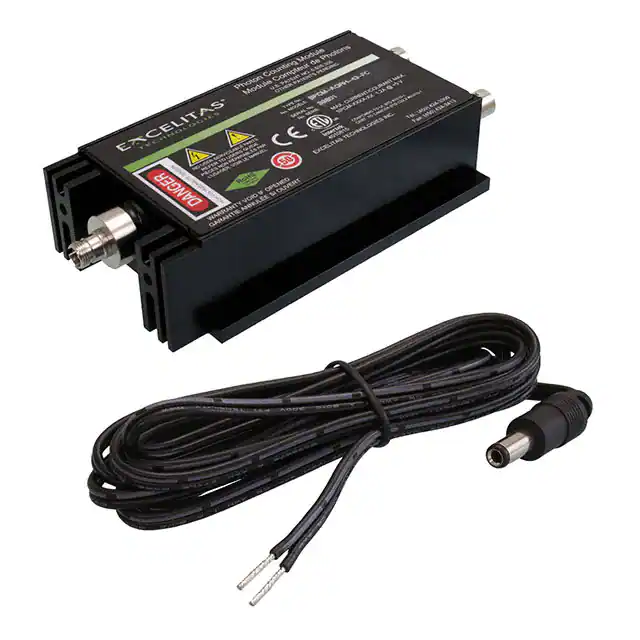

SPCM-AQRH-43-FCPHOTON COUNTING MODULE 4.4V |
4 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-14PHOTON COUNT MODULE 100CPS |
4 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 100cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-15-FCPHOTON COUNT MODULE <50CPS FC |
2 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 50cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

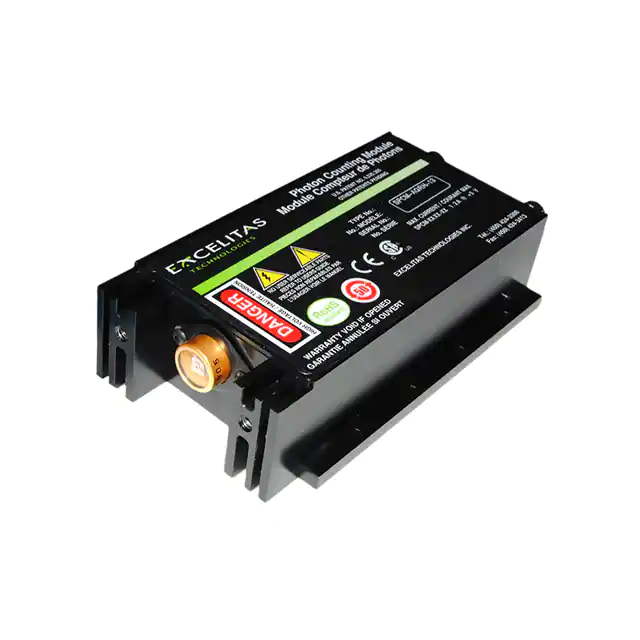

SPCM-AQRH-16PHOTON COUNT MODULE <25CPS |
11 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|

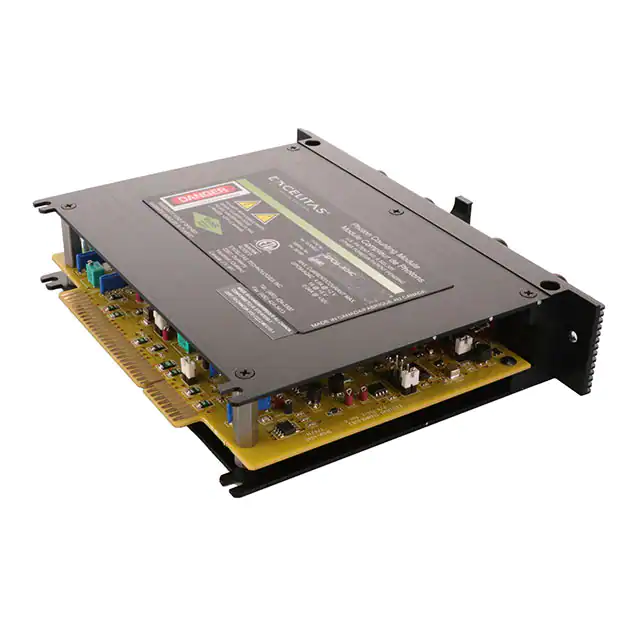

SPCM-AQ4CPHOTON COUNT MODULE 4 CHANNEL <5 |
3 |
|
Технический лист |
SPCM-AQ4C | Bulk | Active | Single Photon Detector, 4 Channel | 60% | 400 ~ 1060nm | 500cps | 650nm | - | 50ns | 2, 5, 30VDC | TTL 25ns | Avalanche Photodiode | 180μm | - | 5°C ~ 40°C |
|
|
SPCM-AQRH-15PHOTON COUNT MODULE <50CPS |
3 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 50cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-QC8 FIBERSPCM-QC8 MULTIMODE 100 FC + SMA |
2 |
|
Технический лист |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-QC6 FIBERSPCM-QC6 MULTIMODE 100 |
2 |
|
Технический лист |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
CIPRM-210MODULE OPTICAL RCVR INGAAS PIN |
4 |
|
Технический лист |
CIPRM | Bulk | Active | Receiver | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CIPRM-110MODULE OPTICAL RCVR INGAAS PIN |
4 |
|
Технический лист |
CIPRM | Bulk | Active | Receiver | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-AQRH-14-FCPHOTON COUNT MODULE 100CPS FC |
1 |
|
Технический лист |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 100cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-14-TRPHOTON COUNTING MODULE |
0 |
|
Технический лист |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 100cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
