Двигатели - переменного тока, DC
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Функция | Тип двигателя | Напряжение - Номинальное | Об/мин | Крутящий момент - номинальный (унций-дюйм / мНм) | Мощность - Номинальная | Тип кодировщика | Размер/измерение | Диаметр - вал | Длина - вал и подшипник | Расстояние между монтажными отверстиями | Тип вывода | Особенности | Коэффициент редукции | Крутящий момент - макс. мгновенный (унций-дюйм / мНм) | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSME304G1GSERVOMOTOR 3000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 3000 RPM | 1352 / 9550 | 3kW | Incremental | Square - 4.724" x 4.724" (120.00mm x 120.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
|
|
MSME304G1HSERVOMOTOR 3000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 3000 RPM | 1352 / 9550 | 3kW | Incremental | Square - 4.724" x 4.724" (120.00mm x 120.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
|
|
MSME504G1GSERVOMOTOR 3000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 3000 RPM | 2252 / 15900 | 5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 6755 / 47700 | 0°C ~ 40°C |
|

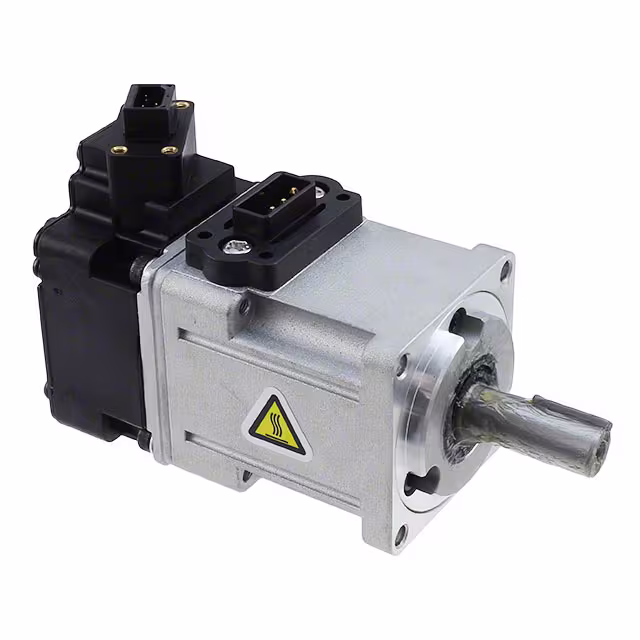

MSME5AZG1USERVOMOTOR 3000 RPM 100/200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 100, 200VAC | 3000 RPM | 22.7 / 160 | 50W | Incremental | Square - 1.496" x 1.496" (38.00mm x 38.00mm) | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.772" (45.00mm) | Connector | Key, Oil Seal | - | 67.97 / 480 | 0°C ~ 40°C |
|

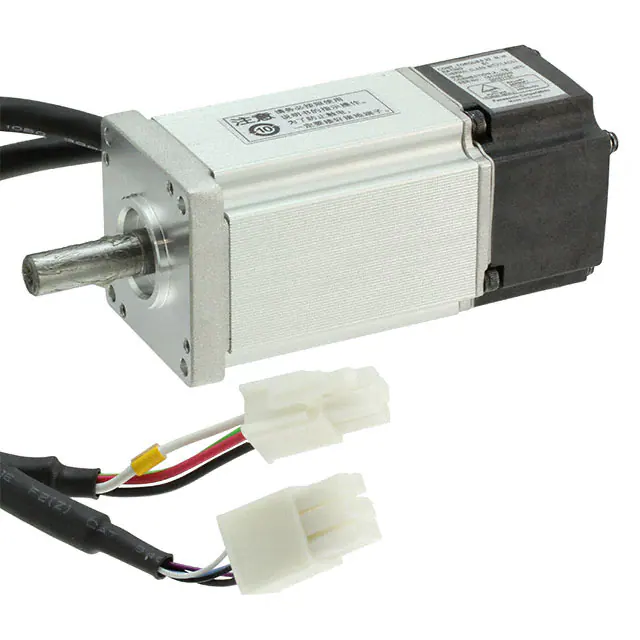

MUMA012P1SSERVOMOTOR 3000 RPM 200V |
0 |
|
Технический лист |
MINAS E | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 45.32 / 320 | 100W | Incremental | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.890" (48.00mm) | Cable with Connector | Key | - | 134.5 / 950 | 0°C ~ 40°C |
|
MUMA021P1SSERVOMOTOR 3000 RPM 100V |
0 |
|
Технический лист |
MINAS E | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Cable with Connector | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
|
MUMA022P1SSERVOMOTOR 3000 RPM 200V |
0 |
|
Технический лист |
MINAS E | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Cable with Connector | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
|
MAMA022P1ASERVOMOTOR 5000 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 5000 RPM | 53.81 / 380 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Cable with Connector | - | - | 311.6 / 2200 | 0°C ~ 40°C |
|
|
MAMA082P1ESERVOMOTOR 5000 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 5000 RPM | 202.5 / 1430 | 750W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Cable with Connector | - | - | 1014 / 7160 | 0°C ~ 40°C |
|
|
MDMA752P1GSERVOMOTOR 1500 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 1500 RPM | 6797 / 48000 | 7.5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 16852 / 119000 | 0°C ~ 40°C |
|
|
MDME102G1CSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 675.5 / 4770 | 1kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|

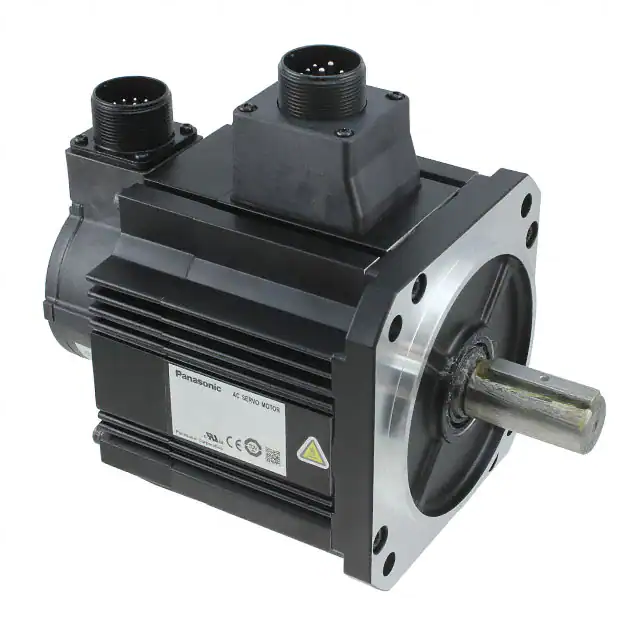

MDME102GCHSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 675.5 / 4770 | 1kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
|
MDME152GCGSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1014 / 7160 | 1.5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 3045 / 21500 | 0°C ~ 40°C |
|
|
MDME152GCHSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1014 / 7160 | 1.5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 3045 / 21500 | 0°C ~ 40°C |
|
|
MDME202GCHSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1352 / 9550 | 2kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
|
|
MGMA602P1GSERVOMOTOR 1000 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 1000 RPM | 8100 / 57200 | 6kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 19401 / 137000 | 0°C ~ 40°C |
|
|
MHMA152S1CSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1013 / 7150 | 1.5kW | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.760" (70.00mm) | 5.709" (145.00mm) | Connector | Oil Seal | - | 3045 / 21500 | 0°C ~ 40°C |
|
|
MHMA752P1GSERVOMOTOR 1500 RPM 200V |
0 |
|
- |
MINAS A4 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 1500 RPM | 6797 / 48000 | 7.5kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 16852 / 119000 | 0°C ~ 40°C |
|
MHMD021G1ASERVOMOTOR 3000 RPM 100V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | - | - | 270.5 / 1910 | 0°C ~ 40°C |
|

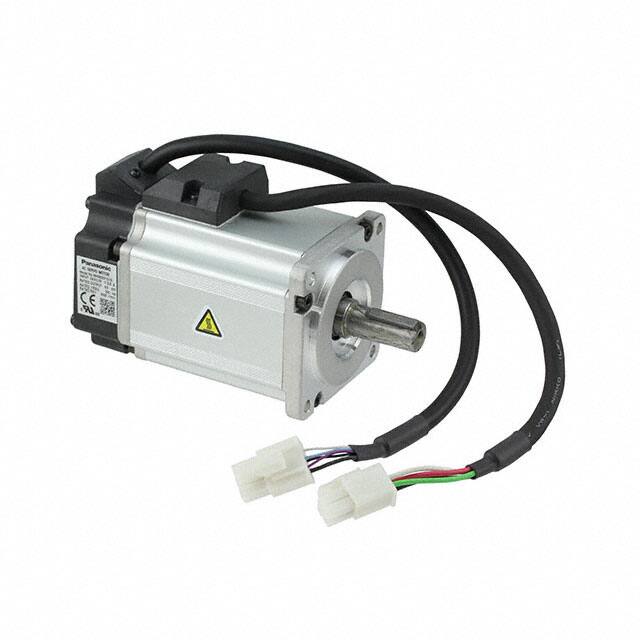

MHMD021G1SSERVOMOTOR 3000 RPM 100V |
0 |
|
Технический лист |
MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
