Двигатели - переменного тока, DC
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Функция | Тип двигателя | Напряжение - Номинальное | Об/мин | Крутящий момент - номинальный (унций-дюйм / мНм) | Мощность - Номинальная | Тип кодировщика | Размер/измерение | Диаметр - вал | Длина - вал и подшипник | Расстояние между монтажными отверстиями | Тип вывода | Особенности | Коэффициент редукции | Крутящий момент - макс. мгновенный (унций-дюйм / мНм) | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

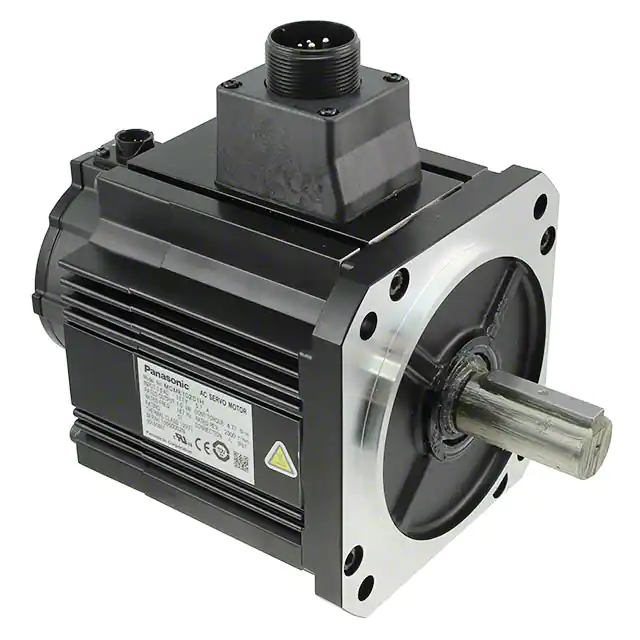

MDME102S1HSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 675.5 / 4770 | 1kW | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
MDME104G1GSERVOMOTOR 2000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 2000 RPM | 675.5 / 4770 | 1kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
MDME104G1HSERVOMOTOR 2000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 2000 RPM | 675.5 / 4770 | 1kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Brake, Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
MDME152G1GSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1014 / 7160 | 1.5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 3045 / 21500 | 0°C ~ 40°C |
|
|
MDME202G1GSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1352 / 9550 | 2kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
|
|
MDME302G1GSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 2025 / 14300 | 3kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 6089 / 43000 | 0°C ~ 40°C |
|
|
MDME302GCGSERVOMOTOR 2000 RPM 200V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 2025 / 14300 | 3kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 6089 / 43000 | 0°C ~ 40°C |
|
|
MDME304G1GSERVOMOTOR 2000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 2000 RPM | 2025 / 14300 | 3kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 6089 / 43000 | 0°C ~ 40°C |
|
|
MFMA252P1GSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1671 / 11800 | 2.5kW | Incremental | Square - 8.661" x 8.661" (220.00mm x 220.00mm) | 1.378" (35.00mm) | 2.559" (65.00mm) | 9.252" (235.00mm) | Connector | Key, Oil Seal | - | 4305 / 30400 | 0°C ~ 40°C |
|
|
MFMA452P1GSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 3045 / 21500 | 4.5kW | Incremental | Square - 8.661" x 8.661" (220.00mm x 220.00mm) | 1.378" (35.00mm) | 2.760" (70.00mm) | 9.252" (235.00mm) | Connector | Key, Oil Seal | - | 7774 / 54900 | 0°C ~ 40°C |
|
|
MFMA452S1HSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 3045 / 21500 | 4.5kW | Absolute | Square - 8.661" x 8.661" (220.00mm x 220.00mm) | 1.378" (35.00mm) | 2.760" (70.00mm) | 9.252" (235.00mm) | Connector | Brake, Key, Oil Seal | - | 7774 / 54900 | 0°C ~ 40°C |
|
|
MGMA452P1GSERVOMOTOR 1000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 1000 RPM | 6075 / 42900 | 4.5kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 15152 / 107000 | 0°C ~ 40°C |
|
|
MGMA452P1HSERVOMOTOR 1000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 1000 RPM | 6075 / 42900 | 4.5kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Brake, Key, Oil Seal | - | 15152 / 107000 | 0°C ~ 40°C |
|
|
MGMA452S1GSERVOMOTOR 1000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 1000 RPM | 6075 / 42900 | 4.5kW | Absolute | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 15152 / 107000 | 0°C ~ 40°C |
|
|
MGMA452S1HSERVOMOTOR 1000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 1000 RPM | 6075 / 42900 | 4.5kW | Absolute | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.654" (42.00mm) | 4.449" (113.00mm) | 7.874" (200.00mm) | Connector | Brake, Key, Oil Seal | - | 15152 / 107000 | 0°C ~ 40°C |
|
|
MHMA152P1GSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1013 / 7150 | 1.5kW | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.866" (22.00mm) | 2.760" (70.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 3045 / 21500 | 0°C ~ 40°C |
|
|
MHMA202P1HSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 1351 / 9540 | 2kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.378" (35.00mm) | 3.150" (80.00mm) | 7.874" (200.00mm) | Connector | Brake, Key, Oil Seal | - | 4036 / 28500 | 0°C ~ 40°C |
|
|
MHMA402P1GSERVOMOTOR 2000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 2000 RPM | 2662 / 18800 | 4kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.378" (35.00mm) | 3.150" (80.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 7987 / 56400 | 0°C ~ 40°C |
|
|
MHME304G1GSERVOMOTOR 2000 RPM 400V |
0 |
|
Технический лист |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 2000 RPM | 2025 / 14300 | 3kW | Incremental | Square - 6.929" x 6.929" (176.00mm x 176.00mm) | 1.378" (35.00mm) | 3.150" (80.00mm) | 7.874" (200.00mm) | Connector | Key, Oil Seal | - | 6089 / 43000 | 0°C ~ 40°C |
|
|
MQMA022P1SSERVOMOTOR 3000 RPM 200V |
0 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 3.543" (90.00mm) | Connector | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
