Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3UG55122BR20PHAS.AUSF.U.-FOLGE, ASYM. 3X160- |
0 |
|
Технический лист |
SIRIUS | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 760V AC | No Delay | 200 ~ 690VAC | Relay | DPDT (2 Form C) | 3A @ 400VAC | DIN Rail |
|
3UG45112AP20MONITORING RELAY,ANALOG,520V,60H |
0 |
|
Технический лист |
SIRIUS | Box | Active | Phase Sequence | - | - | No Delay | 360 ~ 520VAC | Relay | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|
UOA-110-DLAVOLTAGE MONITORING RELAY |
0 |
|
Технический лист |
UOA | Box | Discontinued | Voltage Sensing DC | Energized High/Low | 92 ~ 130V DC | 0.05 Sec ~ 0.5 Sec | 110VDC | Relay | DPDT (2 Form C) | 5A @ 240VAC | Socketable |
|
UOA-240-AFAVOLTAGE MONITORING RELAY |
0 |
|
Технический лист |
UOA | Box | Discontinued | Voltage Sensing AC | Energized High/Low | 205 ~ 260V AC | 0.05 Sec ~ 0.5 Sec | 240VAC | Relay | DPDT (2 Form C) | 5A @ 240VAC | Socketable |
|
|
PIB01CB2350MA115-230V CURRENT LEVEL RELAY |
0 |
|
Технический лист |
PIB01 | Box | Active | Current Sensing AC/DC | Energized High/Low | 1 ~ 50mA AC/DC | 0.1 Sec ~ 30 Sec | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
|
7760054165LIMIT MONITOR 3PH-INP RELAY-OUT |
0 |
|
- |
- | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence | - | 200 ~ 480V AC | - | 180 ~ 500VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|

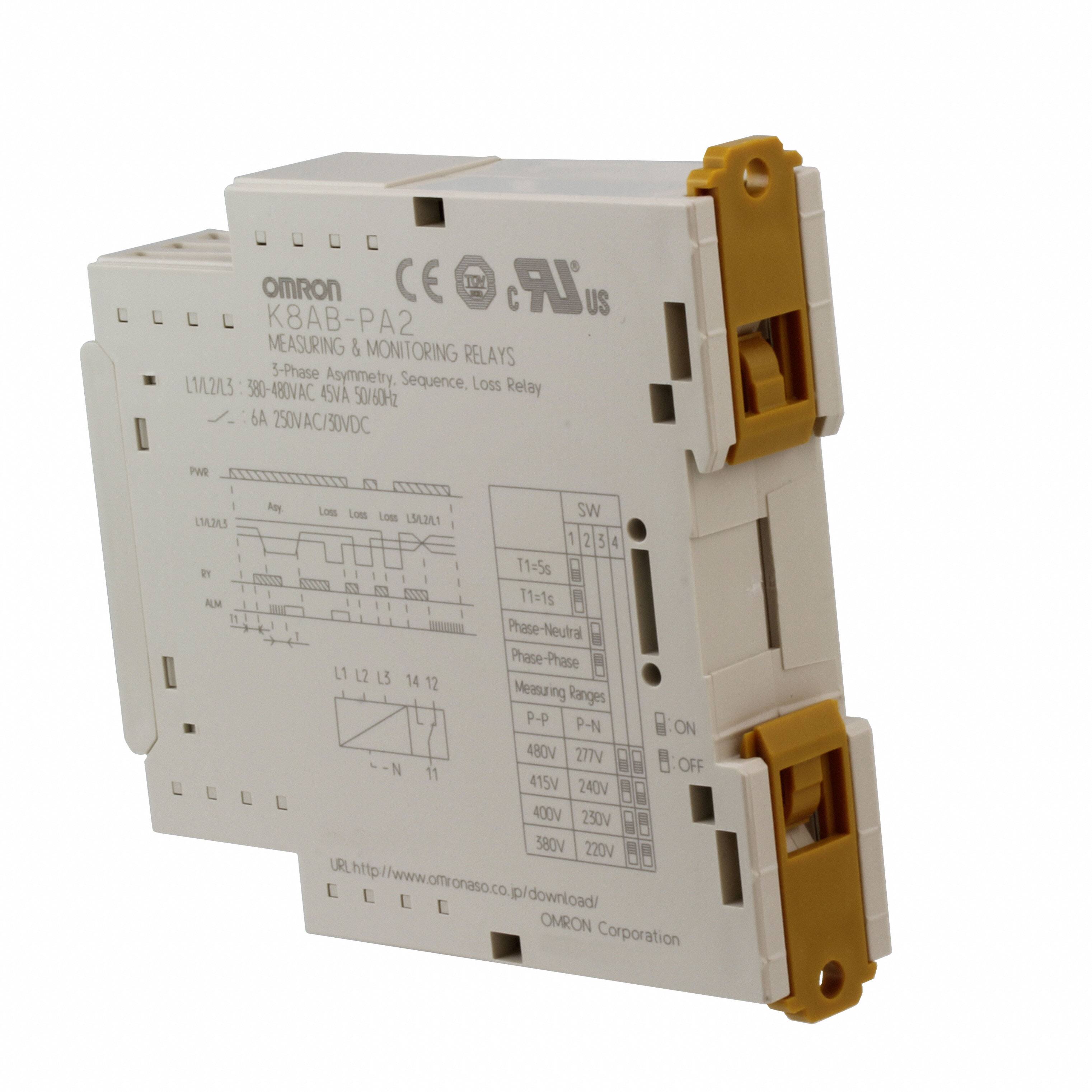

K8AB-PA2REL VOLT ASYMMETRY 220-480VAC |
0 |
|
- |
K8AB-PA | Bulk | Obsolete | Voltage Asymmetry, Phase Loss, Phase Sequence | - | - | 0.1 Sec ~ 30 Sec | 220 ~ 480VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
K8AB-VS2 200/230VACREL AC/DC VOLT SENS 200-230VAC |
0 |
|
- |
K8AB-VS | Bulk | Obsolete | Voltage Sensing AC/DC | - | 1 ~ 150V AC/DC | 0.1 Sec ~ 30 Sec | 200 ~ 230VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
K8AB-VS2 24VAC/DCREL AC/DC VOLT SENS 24VAC/DC DIN |
0 |
|
- |
K8AB-VS | Bulk | Obsolete | Voltage Sensing AC/DC | - | 1 ~ 150V AC/DC | 0.1 Sec ~ 30 Sec | 24VAC/DC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
K8AB-VS3 200/230VACREL AC/DC VOLT SENS 200-230VAC |
0 |
|
- |
K8AB-VS | Bulk | Obsolete | Voltage Sensing AC/DC | - | 20 ~ 600V AC/DC | 0.1 Sec ~ 30 Sec | 200 ~ 230VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
PIB01CB235A115-230V CURRENT LEVEL RELAY |
0 |
|
Технический лист |
PIB01 | Box | Active | Current Sensing AC/DC | Energized High/Low | 0.1 ~ 5A AC/DC | 0.1 Sec ~ 30 Sec | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
|
PIB01CD485A24-48V CURRENT LEVEL RELAY |
0 |
|
Технический лист |
PIB01 | Box | Active | Current Sensing AC/DC | Energized High/Low | 0.1 ~ 5A AC/DC | 0.1 Sec ~ 30 Sec | 24 ~ 48VAC/DC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
LSRU-115-AL-3LOAD SENSOR/ 115V/ 25-100A/ UC |
0 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | - | 25 ~ 100A AC | No Delay | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
LSRU-115-FC-1.5LOAD SENSOR/115V/0-10A/UC OC |
0 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | - | 0 ~ 10A AC | No Delay | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
LSRU-115-OU-3LOAD SENSOR/ 115V/ 25-100A/ OC |
0 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | Energized High/Low | 25 ~ 100A AC | No Delay | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
LSRU-115-UE-2LOAD SENSOR/ 115V/ 25-100A/ UC |
0 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | Energized Low | 5 ~ 25A AC | 0.02 Sec ~ 0.3 Sec | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
LSRU-115-UR-2LOAD SENSOR/ 115V/ 5-25A/ UC T |
0 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | Energized Low | 5 ~ 25A AC | 0.5 Sec ~ 300 Sec | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
DIB01CD4810A1-PHASE TRUE RMS MONITORING RELA |
0 |
|
- |
DIB01 | Bulk | Active | Current Sensing AC/DC | Energized, Latching High/Low | 1 ~ 5A AC/DC | 0.1 ~ 30 Sec | 24 ~ 48VAC/DC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
PLM65023 PHASE LINE MONITOR |
0 |
|
Технический лист |
PLM | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | Energized Low | 200 ~ 240V AC | Fixed, 2 Sec | 240VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
|
PLM68053 PHASE LINE MONITOR |
0 |
|
Технический лист |
PLM | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | Energized Low | 200 ~ 240V AC | Fixed, 5 Sec | 240VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
