Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM-120-ACASPM SERIES TEMPERATURE SWITCH RE |
0 |
|
Технический лист |
SPM | Box | Active | Temperature Monitoring | Energized High/Low | - | 0.01 Sec ~ 1 Sec | 120VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Socketable |
|
|
3UG55121AR21PHASAUSF.U-FOLGE, ASYM 3X160-690 |
0 |
|
Технический лист |
SIRIUS | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 760V AC | No Delay | 200 ~ 690VAC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
3UG55122AR21PHASAUSF.U-FOLGE, ASYM 3X160-690 |
0 |
|
Технический лист |
SIRIUS | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 760V AC | No Delay | 200 ~ 690VAC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
RM35UA11MWVOLTAGE RELAY 250V 5AMP RM35 |
0 |
|
Технический лист |
Harmony | Box | Active | Voltage Sensing AC/DC | Energized High/Low | 0.05 ~ 5V AC/DC | 0.3 Sec ~ 30 Sec | 24 ~ 240VAC/DC | Relay | DPDT (2 Form C) | 5A @ 250VAC/250VDC | DIN Rail |
|
LSRU-115-OT-2LOAD SENSOR/ 115V/ 5-25A/ OC T |
1 |
|
Технический лист |
LSRU | Bulk | Active | Current Sensing AC | Energized High | 5 ~ 25A AC | 0.5 Sec ~ 60 Sec | 115VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
11027205EIW-C18, 230 V AC (MEASURING AND |
0 |
|
- |
- | Bulk | Active | Current Sensing AC | Energized High/Low | 0.01 ~ 15A | 0.1 Sec ~ 9.9 Sec | 230VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
11027210EIW-C18 24V AC, 2WE. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
|
PWA01CM485A240VAC 3PH LOAD GUARD RELAY |
0 |
|
Технический лист |
PWA01 | Box | Active | Current Sensing AC, Voltage Sensing AC | Energized High/Low | 380 ~ 480V AC | Fixed, 1 Sec, 2 Sec, 6 Sec | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
K8AB-TH11S AC100-240RELAY TEMP MONITOR 0-399DEG C/F |
0 |
|
Технический лист |
K8AB-TH | Box | Obsolete | Temperature Monitoring | - | 0°C ~ 399°C | No Delay | 100 ~ 240VAC | - | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|
K8AB-TH11S AC/DC24RELAY TEMP MONITOR 0-399DEG C/F |
0 |
|
Технический лист |
K8AB-TH | Box | Obsolete | Temperature Monitoring | - | 0°C ~ 399°C | No Delay | 24VAC/DC | - | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|

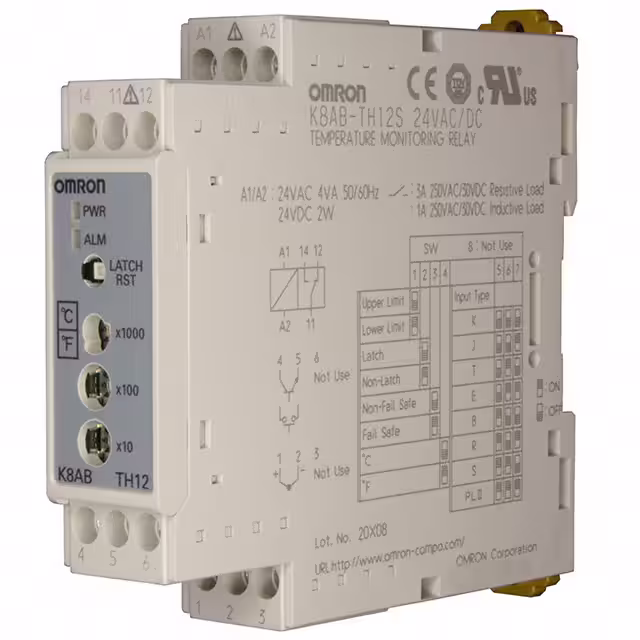

K8AB-TH12S AC/DC24RELAY TEMP MONITOR 0-1700DEG C |
0 |
|
Технический лист |
K8AB-TH | Box | Obsolete | Temperature Monitoring | - | 0°C ~ 1700°C | No Delay | 24VAC/DC | - | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|
|
84871024EIL CRNT CTRL RLY 200-500MA 230V |
0 |
|
Технический лист |
EIL | Box | Obsolete | Current Sensing AC/DC | Energized High | 2 ~ 500mA AC/DC | 0.1 Sec ~ 3 Sec | 230 ~ 240VAC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
HLMUDN0405N3 PHASE VOLTAGE MONITOR |
0 |
|
Технический лист |
HLMU | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | Energized High/Low | 200 ~ 480V AC | Fixed, 5 Sec | - | Relay | DPDT (2 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
HLMUDNAAN3 PHASE VOLTAGE MONITOR |
0 |
|
Технический лист |
HLMU | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | Energized High/Low | 200 ~ 480V AC | 1 Sec ~ 30 Sec | - | Relay | DPDT (2 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
PPB01CM233-PHASE OVER/UNDER VOLT. RELAY |
0 |
|
Технический лист |
PPB01 | Box | Active | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 177 ~ 275V AC | 0.1 Sec ~ 30 Sec | 208 ~ 240VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
|
RM35ATR5MWTEMPERATURE RELAY 250V 5AMP RM35 |
0 |
|
Технический лист |
Harmony | Box | Obsolete | Temperature Monitoring | Energized High/Low | -1°C ~ 46°C | 0.1 Sec ~ 10 Sec | 24 ~ 240VAC/DC | Relay | DPST-NO (2 Form A) | 5A @ 250VAC/250VDC | DIN Rail |
|
|
848734013X400VAC FFP MOTOR LOAD CONTROL |
0 |
|
- |
FFP | Bulk | Obsolete | Phase Loss, Phase Sequence | Energized High/Low | - | 0.3 Sec ~ 3 Sec | 400VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|

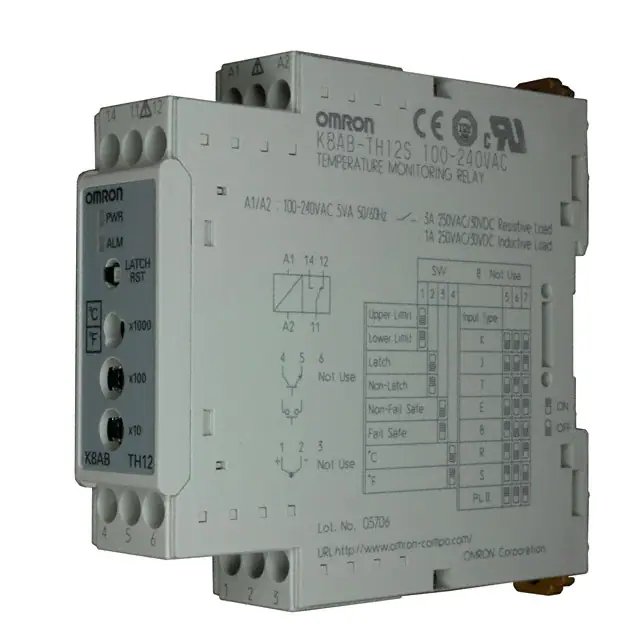

K8AB-TH12S AC100-240RELAY TEMP MONITOR 0-1700DEG C |
0 |
|
Технический лист |
K8AB-TH | Box | Obsolete | Temperature Monitoring | - | 0°C ~ 1700°C | No Delay | 100 ~ 240VAC | - | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|
K8AB-VS3 100/115VACRELAY MONITOR VOLT 60-600V 120V |
0 |
|
Технический лист |
K8AB-VS | Box | Obsolete | Voltage Sensing AC/DC | - | 20 ~ 600V AC/DC | 0.1 Sec ~ 30 Sec | 100 ~ 115VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
3UG55121BR20PHAS.AUSF.U.-FOLGE, ASYM. 3X160- |
0 |
|
Технический лист |
SIRIUS | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 760V AC | No Delay | 200 ~ 690VAC | Relay | DPDT (2 Form C) | 3A @ 400VAC | DIN Rail |
