Микрофоны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Тип выхода | Направление | Диапазон частот | Чувствительность | Отношение сигнал/шум | Импеданс | Напряжение - Номинальное | Диапазон напряжений | Ток - Питание | Расположение порта | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота (макс.) | Форма | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
POM-5042P-C3310-RMIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
- |
POM | Box | Active | Electret Condenser | Analog | Omnidirectional | - | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
POM-2246P-2-RMIC COND ANLG OMNI -46DB 0.236"D |
0 |
|
- |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -46dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|
POM-2246S-2-RMIC COND ANLG OMNI -46DB 0.236"D |
0 |
|
- |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | - | -46dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solderless (Bullseye) | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|

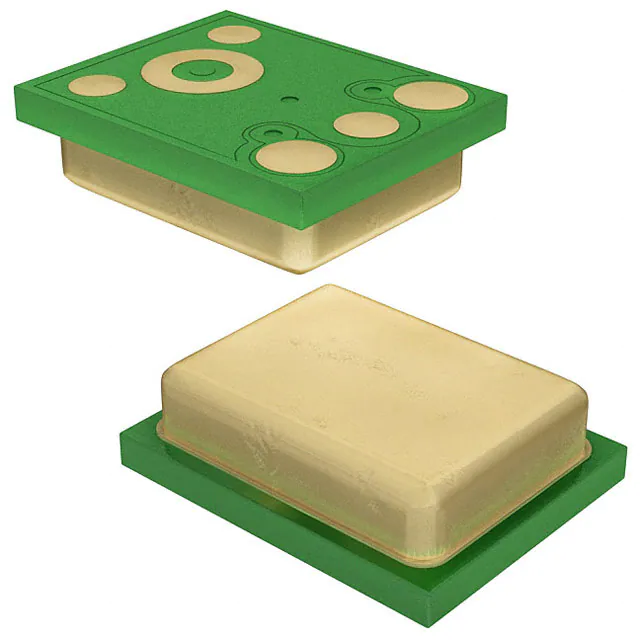

SPU1410LR5H-QBMIC MEMS ANALOG OMNI -38DB |
0 |
|
Технический лист |
SiSonic™ SP | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 10 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 63dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 160 µA | Bottom | - | Solder Pads | 0.148" L x 0.118" W (3.76mm x 3.00mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
SPM0408LE5H-TB-6MIC MEMS ANALOG OMNI -18DB |
0 |
|
Технический лист |
SiSonic™ SPM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -18dB ±3dB @ 94dB SPL | 63dB | 200 Ohms | - | 1.5 V ~ 5.5 V | 350 µA | Bottom | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
|
EM-4015PMICROPHONE, OMNIDIRECTIONAL, 1V, |
0 |
|
Технический лист |
- | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1 V ~ 10 V | 500 µA | Top | IP50 - Dust Protection | PC Pins | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Round | - | - |
|
SPUL409HE5H-PBMIC MEMS ANALOG OMNI -42DB |
0 |
|
Технический лист |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 190 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
WM7121PIMSE/RVMIC MEMS ANALOG OMNI -38DB |
0 |
|
Технический лист |
WM7121PE | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 62 Hz ~ 13 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 55 Ohms | - | 1.5 V ~ 3.7 V | 240 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
WM7236IMSE/RVMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
WM7236E | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 55 Hz ~ 12 kHz | -26dB ±1dB @ 94dB SPL | 63dB | - | 1.8 V | 1.62 V ~ 2 V | 1.3 mA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
|
CS7250B-CAZRMIC MEMS DIGITAL PDM OMNI -36DB |
0 |
|
Технический лист |
CS7250B | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 35 Hz ~ 13 kHz | -36dB ±1dB @ 94dB SPL | 66dB | - | 1.8 V | 1.62 V ~ 1.98 V | 650 µA | Bottom | - | Surface Mount | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
|
IA610-2MIC MEMS I2S PDM TDM OMNI |
0 |
|
Технический лист |
IA | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | I2S, PDM, TDM | Omnidirectional | 768 kHz ~ 200 MHz | -37.5dB ±1dB @ 94dB SPL | 66dB | - | 1.8 V | 1.71 V ~ 1.98 V | 7.5 mA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.051" (1.30mm) | Rectangular | - | - |
|

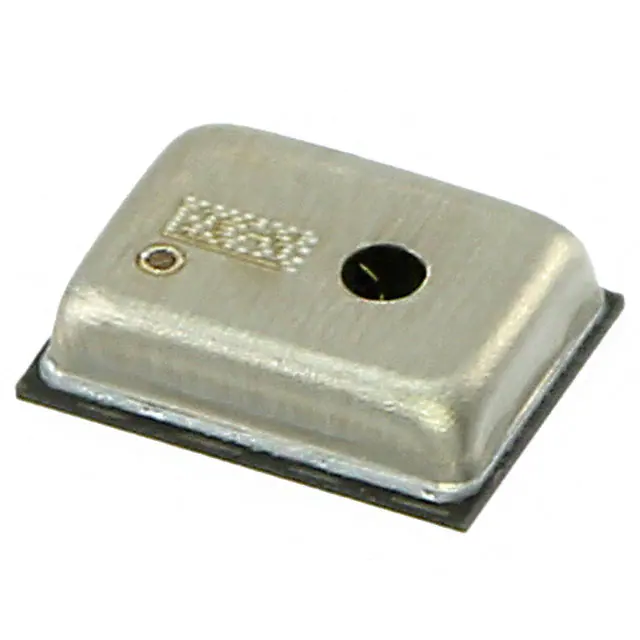

MP34DT01TR-MMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.046" (1.16mm) | Rectangular | - | - |
|
VM3011-U1MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 725 µA | Bottom | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.055" (1.40mm) | Rectangular | - | - |
|
SPK0833LM4H-BMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
SiSonic™ SP | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 63dB | - | - | 1.6 V ~ 3.6 V | 700 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
SPM0423HM4H-WBMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
SiSonic™ SPM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 56dB | - | - | 1.6 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|

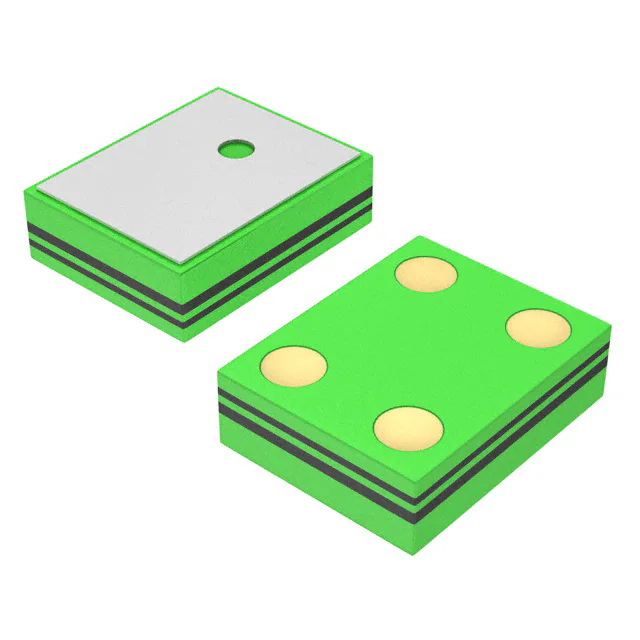

SPUL409HE5H-PB-2MIC MEMS ANALOG OMNI -42DB |
1 |
|
Технический лист |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 190 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
|
MP34DT05TRMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|

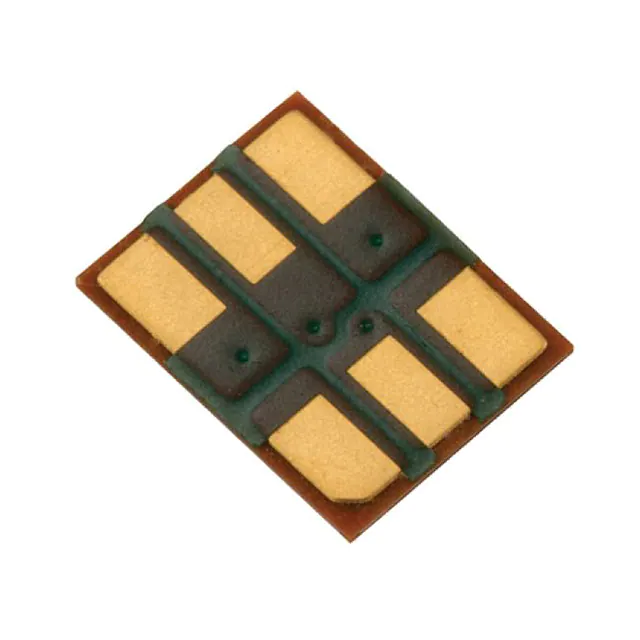

SPH0644HM4H-1MIC MEMS DIGITAL PDM OMNI -36DB |
0 |
|
Технический лист |
SiSonic™ SPH | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 50 Hz ~ 10 kHz | -36dB ±1dB @ 94dB SPL | 58dB | - | - | 1.6 V ~ 3.6 V | 1.025 mA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.037" (0.95mm) | Rectangular | - | - |
|
SPH1642HT5H-1MIC MEMS ANALOG OMNI -38DB |
0 |
|
Технический лист |
SiSonic™ SPH | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 500 Ohms | - | 1.5 V ~ 3.6 V | 185 µA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
|
EM-4105LR-40-3MICROPHONE 40DB, 2V, 4MM DIA. X |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
