Микрофоны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Тип выхода | Направление | Диапазон частот | Чувствительность | Отношение сигнал/шум | Импеданс | Напряжение - Номинальное | Диапазон напряжений | Ток - Питание | Расположение порта | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота (макс.) | Форма | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMOF-6050S-44UQMIC COND ANLG OMNI -44DB 0.236"D |
0 |
|
Технический лист |
PMOF | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -44dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.217" (5.50mm) | Circular | - | - |
|
VM3000MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 8 kHz | -26dB ±1dB @ 94dB SPL | 62dB | - | 1.8 V | 1.6 V ~ 3.6 V | 775 µA | Bottom | IP57 - Dust Protected, Waterproof | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.051" (1.30mm) | Rectangular | - | - |
|
MO064002-1MIC COND ANLG OMNI -40DB 0.236"D |
0 |
|
Технический лист |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -40dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|
CMEJ-0502-25-L075MIC COND ANLG OMNI -25DB 0.197"D |
0 |
|
Технический лист |
CMEJ | Bag | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -25dB ±3dB @ 94dB SPL | 60dB | - | 3 V | - | 500 µA | Top | IP65 - Dust Tight, Water Resistant | Wire Leads | 0.197" Dia (5.00mm) | 0.087" (2.20mm) | Circular | - | - |
|
MM042602-5MIC MEMS DIGITAL OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 7 kHz | -26dB ±3dB | 58dB | - | 2.1 V | 1.64 V ~ 3.6 V | 800 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.045" (1.15mm) | Rectangular | - | - |
|
MM042602-6MIC MEMS DIGITAL OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 7 kHz | -26dB ±3dB | 61dB | - | 2.1 V | 1.5 V ~ 3.6 V | 800 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.045" (1.15mm) | Rectangular | - | - |
|

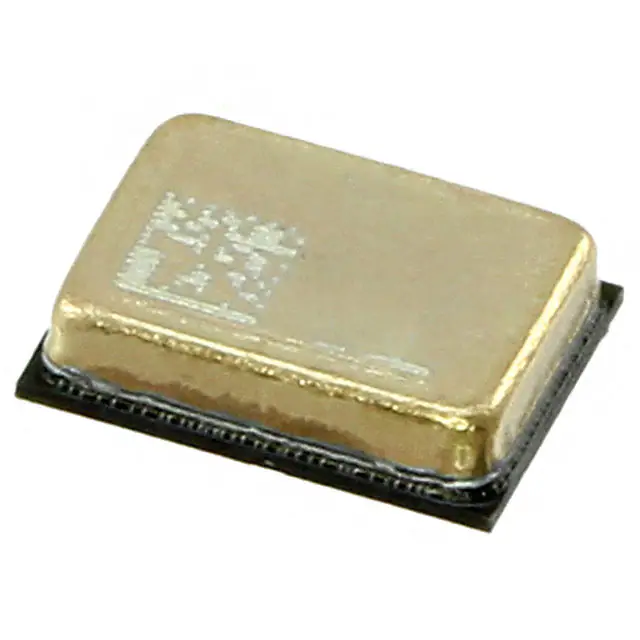

MP34DB02TRMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
INMP411ACEZ-R7MIC MEMS ANALOG OMNI -46DB |
0 |
|
Технический лист |
INMP411 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 28 Hz ~ 20 kHz | -46dB ±2dB @ 94dB SPL | 62dB | 200 Ohms | - | 1.5 V ~ 3.63 V | 250 µA | Bottom | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
COM-08635ELECTRET MICROPHONE |
0 |
|
- |
- | Bulk | Active | Electret Condenser | - | Omnidirectional | 100 Hz ~ 10 kHz | -46dB ±2dB @ 94dB SPL | 45dB | - | 1.5 V | 1 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
MO044402-1MIC COND ANLG OMNI -44DB 0.157"D |
0 |
|
Технический лист |
- | Bag | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 16 kHz | -44dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
SPM0423HD4H-WBMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 56dB | - | - | 1.6 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
|
INMP522ACEZ-R0MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
INMP522 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 75 Hz ~ 20 kHz | -26dB ±1dB @ 94dB SPL | 65dB | - | - | 1.62 V ~ 3.63 V | 1.4 mA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
CMC-6027-42TMIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Технический лист |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 57dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
MMICT4076-00-908MICROPHONE MEMS ANALOG -38DB |
0 |
|
Технический лист |
MMIC | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | - | 80 Hz ~ 20 kHz | -38db ±1dB @ 127dB | 63dB | - | - | 1.6 V ~ 3.6 V | - | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.035" (0.90mm) | Rectangular | - | - |
|
|
AOW-6540L-RMICROPHONE -40 DB 1.5VDC 2KOHM . |
0 |
|
Технический лист |
AOW | Box | Active | - | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -40dB ±3dB @ 94dB SPL | 65dB | 2 kOhms | 1.5 V | 1.5 V ~ 10 V | 300 µA | Top | IP57 - Dust Protected, Waterproof | Solder Pads | 0.382" Dia (9.70mm) | 0.264" (6.70mm) | Round | - | - |
|
VM1010MIC PIEZO MEMS ANLG OMNI -38DB |
0 |
|
Технический лист |
Vesper | Tape & Reel (TR) | Obsolete | Piezo MEMS | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 60dB | - | 1.8 V | - | 5 µA | Bottom | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.051" (1.30mm) | Rectangular | - | - |
|
SPA2629LR5H-BMIC MEMS ANALOG OMNI -38DB |
0 |
|
Технический лист |
SiSonic™, Zero-Height Mic™, SPA | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 65dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 165 µA | Bottom | - | - | - | - | - | - | - |
|
MO094001-1MIC COND ANALOG OMNI 0.382"DIA |
0 |
|
Технический лист |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | - | 60dB | - | 1.5 V | - | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
MO063001-4MIC COND ANLG OMNI -30DB 0.236"D |
0 |
|
Технический лист |
- | Bag | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -30dB ±3dB | 58dB | - | 2 V | 1 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
SPK0838HT4H-BMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Технический лист |
High-SNR SiSonic™ SPK | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 700 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
