Вентили и инверторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип логики | Количество цепей | Количество входов | Особенности | Напряжение - Питание | Ток - состояние покоя (макс.) | Ток - выход высокий, низкий | Входной логический уровень - низкий | Входной логический уровень - высокий | Макс. задержка распространения при V, макс. CL | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AC05SCXIC INVERTER OD 6CH 1IN 14SOIC |
0 |
|
Технический лист |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Open Drain | 2V ~ 6V | 4 µA | -, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 14ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74ACTQ08SJXIC GATE AND 4CH 2-INP 14SOP |
0 |
|
Технический лист |
74ACTQ | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 6.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74ALVC32MIC GATE OR 4CH 2-INP 14SOIC |
0 |
|
Технический лист |
74ALVC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74LCX00MIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
Технический лист |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74LCX38SJXIC GATE NAND 4CH 2-INP 14SOP |
0 |
|
Технический лист |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 3.6V | 10 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74LVQ86SCXIC GATE XOR 4CH 2-INP 14SOIC |
0 |
|
Технический лист |
74LVQ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 11.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS05AMXIC INVERTER 6CH 1-INP 14SOIC |
0 |
|
Технический лист |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Open Collector | 4.5V ~ 5.5V | - | -, 8mA | 0.8V | 2V | 54ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS1000AMIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
Технический лист |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 8ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
74AC11SJIC GATE AND 3CH 3-INP 14SOP |
0 |
|
Технический лист |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC11SJXIC GATE AND 3CH 3-INP 14SOP |
0 |
|
Технический лист |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC32SJIC GATE OR 4CH 2-INP 14SOP |
0 |
|
Технический лист |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|

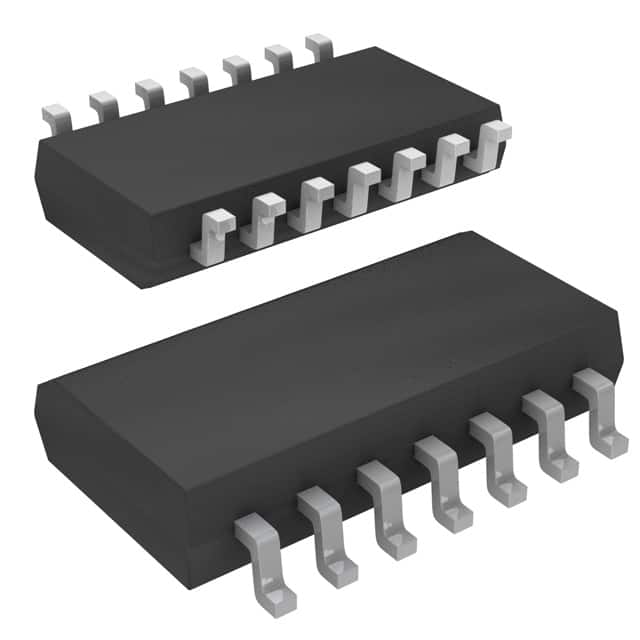

DM74ALS04BSJXIC INVERTER 6CH 1-INP 14SOP |
0 |
|
Технический лист |
74ALS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|
74AC11MTCIC GATE AND 3CH 3-INP 14TSSOP |
0 |
|
Технический лист |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74AC11MTCXIC GATE AND 3CH 3-INP 14TSSOP |
0 |
|
Технический лист |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74ACT04MTCIC INVERTER 6CH 1IN 14TSSOP |
0 |
|
Технический лист |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74ACTQ14MTCIC INVERT SCHMIT 6CH 1IN 14TSSOP |
0 |
|
Технический лист |
74ACTQ | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74ACTQ14MTCXIC INVERT SCHMIT 6CH 1IN 14TSSOP |
0 |
|
Технический лист |
74ACTQ | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX32MTCIC GATE OR 4CH 2-INP 14TSSOP |
0 |
|
Технический лист |
74LCX | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX86SJIC GATE XOR 4CH 2-INP 14SOP |
0 |
|
Технический лист |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
74LCX86SJXIC GATE XOR 4CH 2-INP 14SOP |
0 |
|
Технический лист |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
