Вентили и инверторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип логики | Количество цепей | Количество входов | Особенности | Напряжение - Питание | Ток - состояние покоя (макс.) | Ток - выход высокий, низкий | Входной логический уровень - низкий | Входной логический уровень - высокий | Макс. задержка распространения при V, макс. CL | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74VHC08DTR2G-QQUAD 2-INPUT AND GATE |
0 |
|
Технический лист |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
NC7SV08P5X-L22735TINYLOGIC ULP-A 2-INPUT AND GATE |
0 |
|
Технический лист |
- | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.5V ~ 0.8V | 0.5V ~ 2V | 2.3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NC7NZ04K8X-L22236TINYLOGIC UHS INVERTER |
0 |
|
Технический лист |
- | 8-VFSOP (0.091", 2.30mm Width) | Bulk | Discontinued | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
NC7SV04P5X-L22735TINYLOGIC ULP-A INVERTER |
0 |
|
Технический лист |
- | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued | Inverter | 1 | 1 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.5V ~ 0.8V | 0.5V ~ 2V | 2.3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5) |
|
|
NLVLCX08DTR2GLOW VOLTAGE QUAD 2-INPUT AND GAT |
0 |
|
Технический лист |
74LCX | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q101 | Surface Mount | 14-TSSOP |
|
|
MC74VHC1G86DFT2G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
0 |
|
Технический лист |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NLV74HC1G32DTT1GSINGLE 2-INPUT OR GATE |
0 |
|
Технический лист |
74HC | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
MC74VHC1G86DBVT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
0 |
|
Технический лист |
74VHC | SC-74A, SOT-753 | Bulk | Discontinued | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-74A |
|

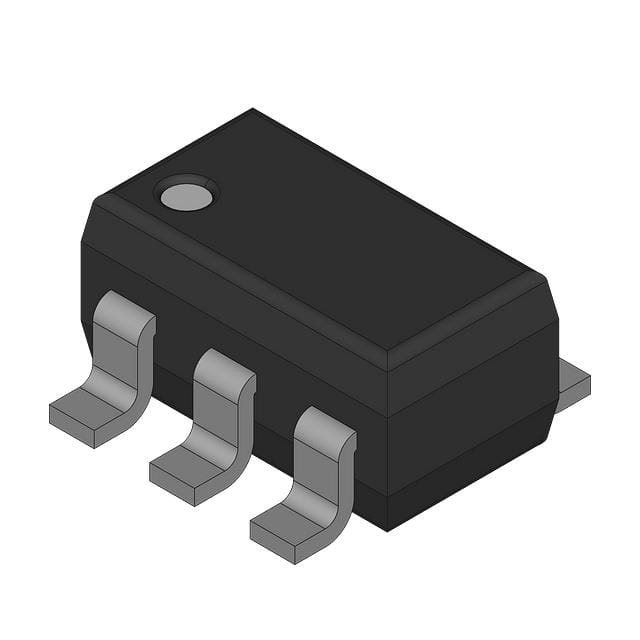

NLVHC1G08DTT1GHIGH-SPEED SINGLE CMOS 2-INPUT A |
0 |
|
Технический лист |
74HC | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued | AND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
SN54LS30JIC GATE NAND 1CH 8-INP 14CDIP |
0 |
|
Технический лист |
54LS | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 1.1 mA | 400µA, 4mA | 0.7V | 2V | 20ns @ 5V, 15pF | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
