Вентили и инверторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип логики | Количество цепей | Количество входов | Особенности | Напряжение - Питание | Ток - состояние покоя (макс.) | Ток - выход высокий, низкий | Входной логический уровень - низкий | Входной логический уровень - высокий | Макс. задержка распространения при V, макс. CL | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC74AC04FN(F,M)IC INVERTER 6CH 1IN 14SOL |
0 |
|
Технический лист |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 5.5V | 4 µA | 24mA, 24mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 6.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|
|
TC74AC86FN(F,M)IC GATE XOR 4CH 2-INP 14SOL |
0 |
|
Технический лист |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 5.5V | 4 µA | 24mA, 24mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|
|
TC74LCX00FN(F,M)IC GATE NAND 4CH 2-INP 14SOL |
0 |
|
Технический лист |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|

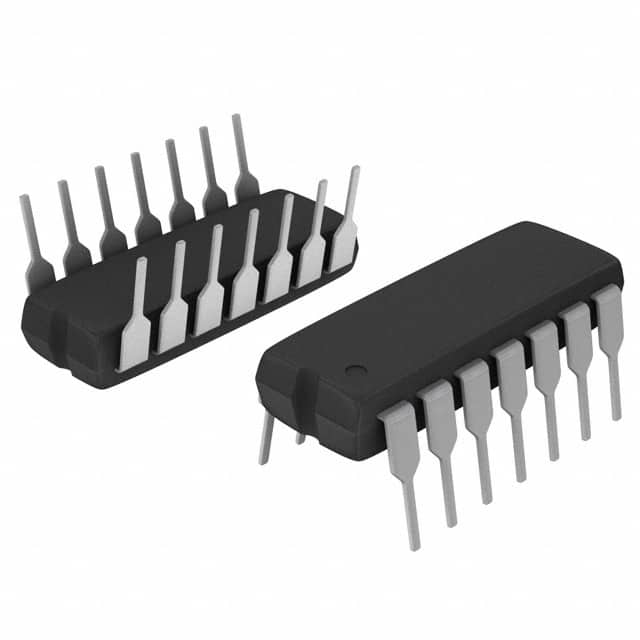

MC14001BCPGIC GATE NOR 4CH 2-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
MC14011UBCPGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14012BCPGIC GATE NAND 2CH 4-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14025BCPGIC GATE NOR 3CH 3-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
MC14049BCPGIC INVERTER 6CH 1-INP 16DIP |
0 |
|
Технический лист |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
|
MC14049UBCPGIC INVERTER 6CH 1-INP 16DIP |
0 |
|
Технический лист |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
|
MC14069UBCPGIC INVERTER 6CH 1-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 55ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14070BCPGIC GATE XOR 4CH 2-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 110ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14073BCPGIC GATE AND 3CH 3-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14081BCPGIC GATE AND 4CH 2-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14093BCPGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14106BCPGIC INVERT SCHMITT 6CH 1INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14584BCPGIC INVERT SCHMITT 6CH 1INP 14DIP |
0 |
|
Технический лист |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.6V ~ 4.6V | 3.4V ~ 10.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC00ANGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Технический лист |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC02ANGIC GATE NOR 4CH 2-INP 14DIP |
0 |
|
Технический лист |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC04ANGIC INVERTER 6CH 1-INP 14DIP |
0 |
|
Технический лист |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC132ANGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Технический лист |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
