Вентили и инверторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип логики | Количество цепей | Количество входов | Особенности | Напряжение - Питание | Ток - состояние покоя (макс.) | Ток - выход высокий, низкий | Входной логический уровень - низкий | Входной логический уровень - высокий | Макс. задержка распространения при V, макс. CL | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCT02APWRIC GATE NOR 4CH 2-INP 14TSSOP |
1,668 |
|
- |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 15ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
SN74LVC86ANSRIC GATE XOR 4CH 2-INP 14SO |
3,940 |
|
Технический лист |
74LVC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.58V ~ 0.8V | 1.07V ~ 2V | 4.4ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74LVC06ANSRIC INVERTER 6CH 1-INP 14SO |
3,755 |
|
Технический лист |
74LVC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Open Drain | 1.65V ~ 3.6V | 1 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74AUC2G32DCURIC GATE OR 2CH 2-INP 8VSSOP |
1,798 |
|
Технический лист |
74AUC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 0.8V ~ 2.7V | 10 µA | 9mA, 9mA | 0V ~ 0.7V | 1.7V | 1.7ns @ 2.5V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
SN74LVC04ANSRIC INVERTER 6CH 1-INP 14SO |
3,878 |
|
Технический лист |
74LVC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74AUP3G14DCURIC INVERT SCHMITT 3CH 3IN 8VSSOP |
8,358 |
|
Технический лист |
74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|

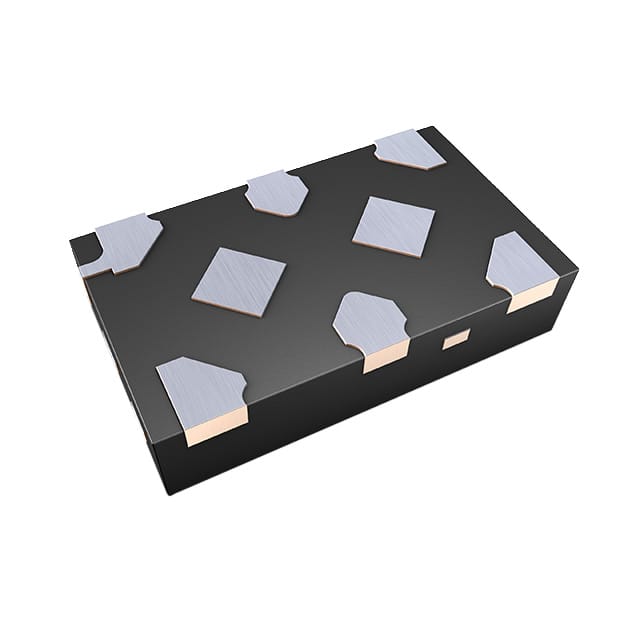

74AUP2G08GXXIC GATE AND 2CH 2-INP 8X2SON |
9,910 |
|
Технический лист |
74AUP | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
74HCT86S14-13IC GATE XOR 4CH 2-INP 14SO |
2,433 |
|
Технический лист |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 4.5V ~ 5.5V | 20 µA | 4mA, 4mA | 0.8V | 2V | 32ns @ 4.5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
|
SN74LVC2G06DRYRIC INVERTER 2CH 2-INP 6SON |
2,538 |
|
Технический лист |
74LVC | 6-UFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
NL17SZ08XV5T2GHSINGLE 2-INPUT AND GATE |
3,780 |
|
Технический лист |
17SZ | SOT-553 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOT-553 |
|
|
SN74AHCT02BQARIC GATE NOR 4CH 2-INP 14WQFN |
3,000 |
|
Технический лист |
74AHCT | 14-WFQFN Exposed Pad | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
SN74AHC86BQARIC GATE XOR 4CH 2-INP 14WQFN |
3,000 |
|
Технический лист |
74AHC | 14-WFQFN Exposed Pad | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
SN74AHCT86BQARIC GATE XOR 4CH 2-INP 14WQFN |
2,950 |
|
Технический лист |
74AHCT | 14-WFQFN Exposed Pad | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8.8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
SN74HC04APWRIC INVERTER 6CH 1-INP 14TSSOP |
2,858 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74HC86T14-13IC GATE XOR 4CH 2-INP 14TSSOP |
2,500 |
|
Технический лист |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 20 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
SN74AHCT04BQARIC INVERTER 6CH 6-INP 14WQFN |
2,750 |
|
Технический лист |
74AHCT | 14-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 6 | 6 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
74AHC86T14-13IC GATE XOR 4CH 2-INP 14TSSOP |
2,300 |
|
Технический лист |
74AHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 5.5V | 20 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC32APWRIC GATE OR 4CH 2-INP 14TSSOP |
778 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC86APWRIC GATE XOR 4CH 2-INP 14TSSOP |
1,980 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V | 15ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC00APWRIC GATE NAND 4CH 2-INP 14TSSOP |
1,946 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
