Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH 409EMITTER IR 950NM 100MA T-1 |
0 |
|
Технический лист |
- | T-1 | Bulk | Obsolete | Infrared (IR) | 100mA | 6.3mW/sr @ 100mA | 950nm | 1.3V | 40° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
SFH 4110EMITTER IR 950NM 60MA MINI |
0 |
|
Технический лист |
- | Mini | Bulk | Obsolete | Infrared (IR) | 60mA | 2.5mW/sr @ 20mA | 950nm | 1.2V | 18° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

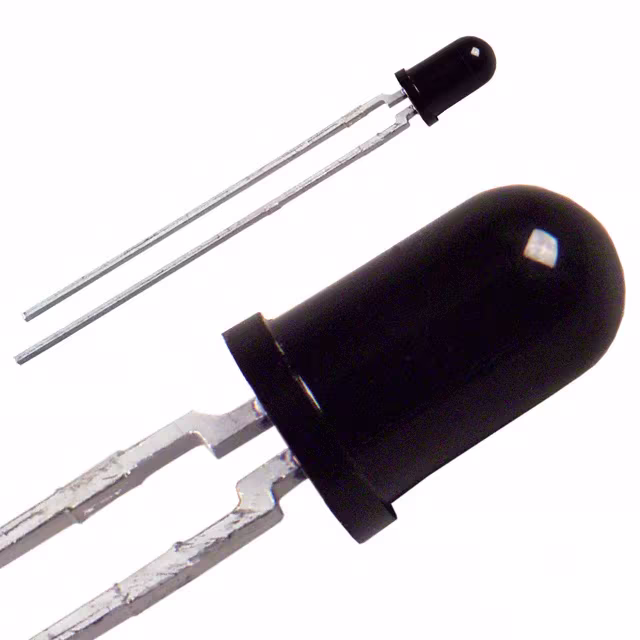

SFH 4301EMITTER IR 950NM 100MA T-1 |
0 |
|
Технический лист |
- | T-1 | Bulk | Obsolete | Infrared (IR) | 100mA | 16mW/sr @ 100mA | 950nm | 1.5V | 20° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

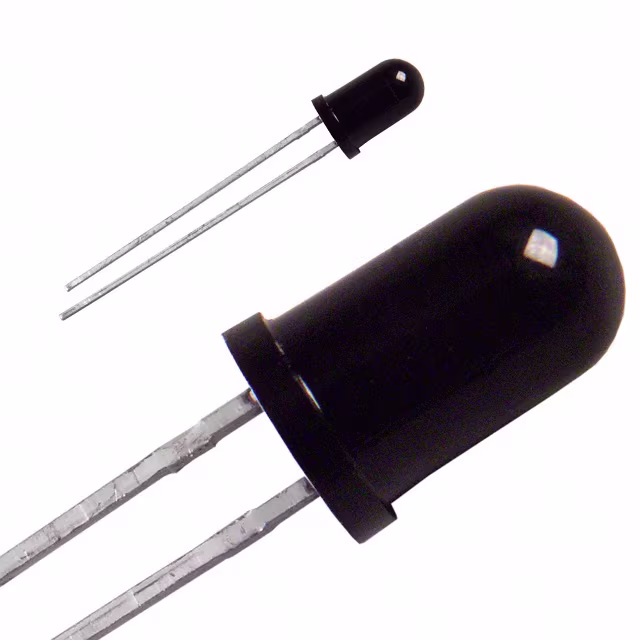

SFH 4501EMITTER IR 950NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 63mW/sr @ 100mA | 950nm | 1.5V | 14° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
SFH 4502EMITTER IR 950NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 25mW/sr @ 100mA | 950nm | 1.5V | 36° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
SFH 4503EMITTER IR 950NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 63mW/sr @ 100mA | 950nm | 1.5V | 8° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
SFH 480EMITTER IR 880NM 200MA TO-18 |
0 |
|
Технический лист |
- | TO-18-2 Metal Can | Bulk | Obsolete | Infrared (IR) | 200mA | 40mW/sr @ 100mA | 880nm | 1.5V | 12° | Top View | -40°C ~ 125°C (TA) | - | - | Through Hole |
|
SFH 484EMITTER IR 880NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 50mW/sr @ 100mA | 880nm | 1.5V | 16° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

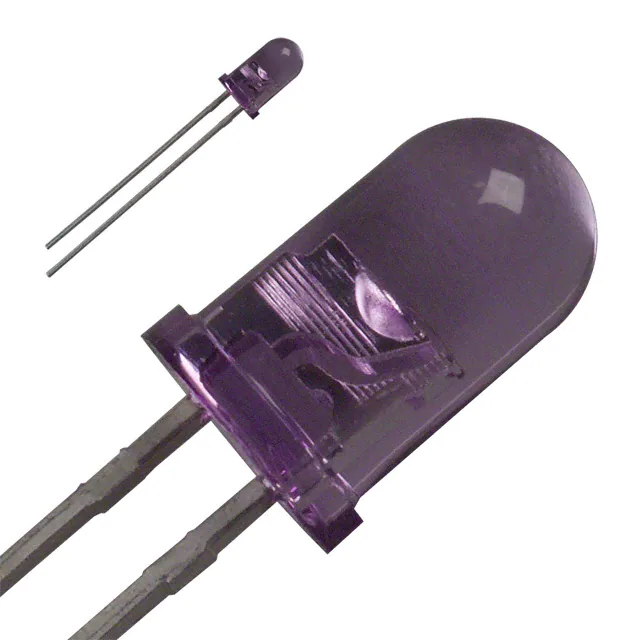

SFH 485EMITTER IR 880NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 25mW/sr @ 100mA | 880nm | 1.5V | 40° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

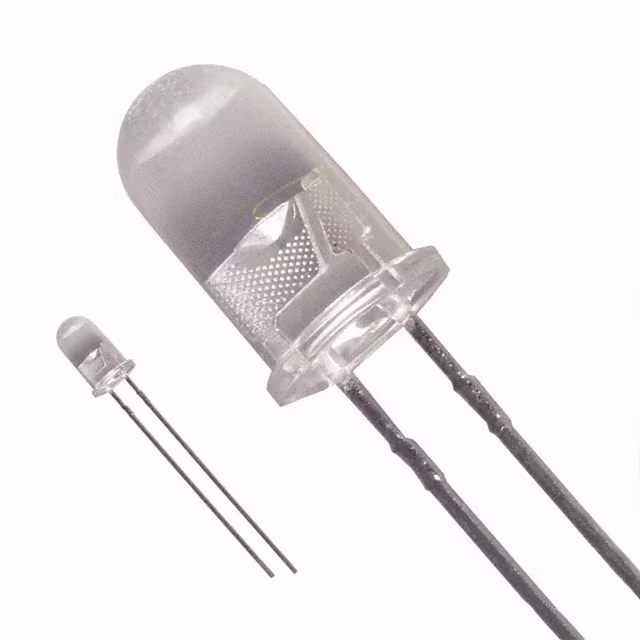

HEMT-3301EMITTER IR 940NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 2.5mW/sr @ 20mA | 940nm | 1.15V | 50° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
SIM-22STFEMITTER IR 950NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 0.8mW/sr @ 10mA | 950nm | 1.3V | 60° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
SIR-56ST3FFEMITTER IR 950NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 5.6mW/sr @ 50mA | 950nm | 1.3V | 30° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN162SEMITTER IR 950NM 50MA CERAMIC |
0 |
|
Технический лист |
- | Ceramic | Bulk | Obsolete | Infrared (IR) | 50mA | 1.5mW/sr @ 50mA | 950nm | 1.2V | 160° | - | -25°C ~ 85°C (TA) | - | - | Through Hole |
|

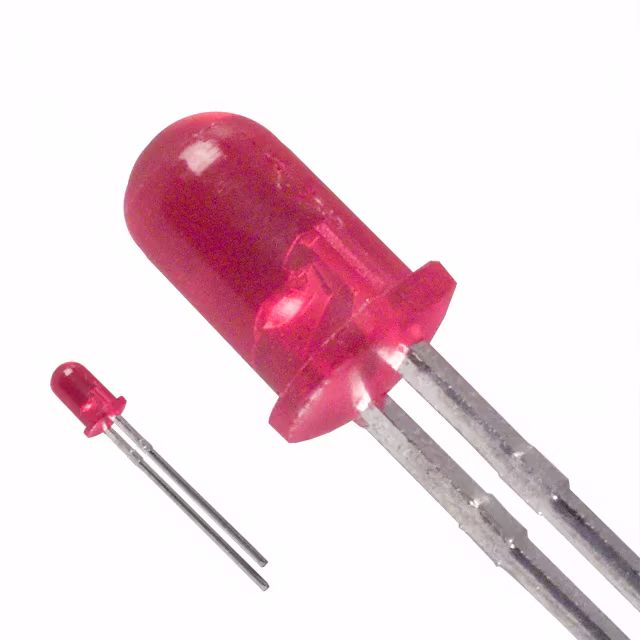

SEP8505-002EMITTER IR 935NM 50MA RADIAL |
0 |
|
- |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 1mW/cm² @ 20mA | 935nm | 1.5V | 15° | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

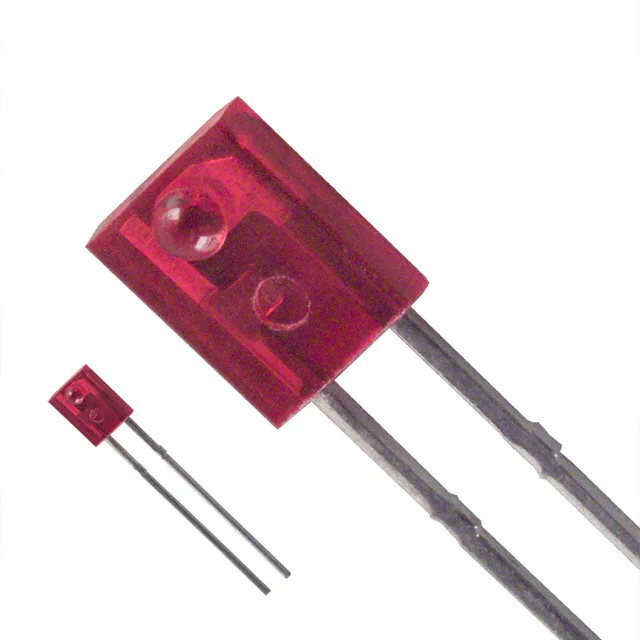

SEP8506-001EMITTER IR 935NM 50MA RADIAL |
0 |
|
- |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 0.05mW/cm² @ 20mA | 935nm | 1.5V | 50° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
|
SEP8506-002EMITTER IR 935NM 50MA RADIAL |
0 |
|
- |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 0.33mW/cm² @ 20mA | 935nm | 1.5V | 50° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
SEP8705-003EMITTER IR 880NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 2.7mW/cm² @ 20mA | 880nm | 1.7V | 15° | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
, SEP8506-00(1,2,3), SDP8406-00(2,3).jpg)
|
SEP8706-003EMITTER IR 880NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 0.45mW/cm² @ 20mA | 880nm | 1.7V | 50° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

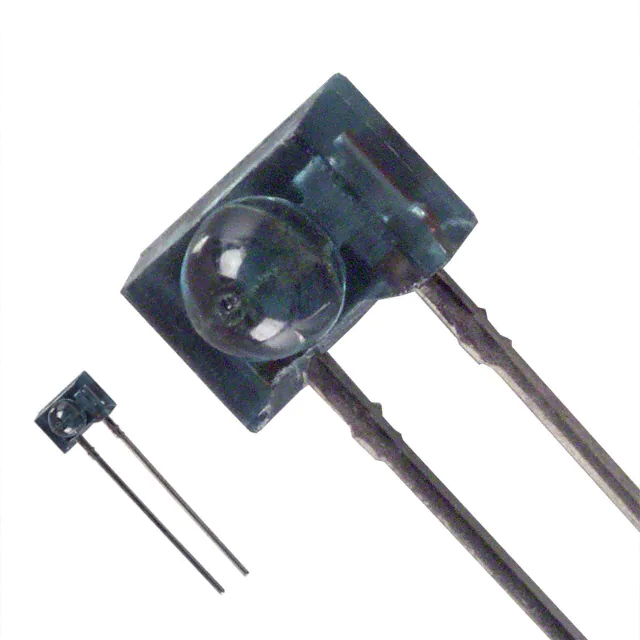

SEP8736-002EMITTER IR 880NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 1.2mW/cm² @ 20mA | 880nm | 1.7V | 10° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
|
SEP8736-003EMITTER IR 880NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 1.7mW/cm² @ 20mA | 880nm | 1.7V | 10° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
