Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LN78EMITTER IR 880NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial | - | Obsolete | Infrared (IR) | 100mA | 6mW/sr @ 50mA | 880nm | 1.5V | 80° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LNA2801LEMITTER IR 940NM 50MA T-1 |
0 |
|
Технический лист |
- | T-1 | Bulk | Obsolete | Infrared (IR) | 50mA | 6mW/sr @ 20mA | 940nm | 1.3V | 30° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LED55CEMITTER IR 940NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 16° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|
LN59EMITTER IR 940NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 1.8mW/sr @ 50mA | 940nm | 1.3V | 40° | Side View, Dual | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LNA2701LEMITTER IR 940NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | - | Obsolete | Infrared (IR) | 50mA | 1.2mW/sr @ 50mA | 940nm | 1.3V | 20° | Side View, Dual | -25°C ~ 65°C (TA) | - | - | Through Hole |
|
QEC122EMITTER IR 880NM 50MA RADIAL |
0 |
|
- |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 27mW/sr @ 100mA | 880nm | 1.7V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
QED222EMITTER IR 880NM 100MA RADIAL |
0 |
|
- |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 16mW/sr @ 100mA | 880nm | 1.7V | 30° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
LED55CFEMITTER IR 940NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 80° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|
|
LED56FEMITTER IR 940NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 80° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|
QEC112EMITTER IR 940NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 6mW/sr @ 100mA | 940nm | 1.5V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
QEC121EMITTER IR 880NM 50MA RADIAL |
0 |
|
- |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 14mW/sr @ 100mA | 880nm | 1.7V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
QEC123EMITTER IR 880NM 50MA RADIAL |
0 |
|
- |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 39mW/sr @ 100mA | 880nm | 1.7V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
QED121EMITTER IR 880NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 16mW/sr @ 100mA | 880nm | 1.7V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
QED122EMITTER IR 880NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 32mW/sr @ 100mA | 880nm | 1.7V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
QED221EMITTER IR 880NM 100MA RADIAL |
0 |
|
- |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 10mW/sr @ 100mA | 880nm | 1.7V | 40° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

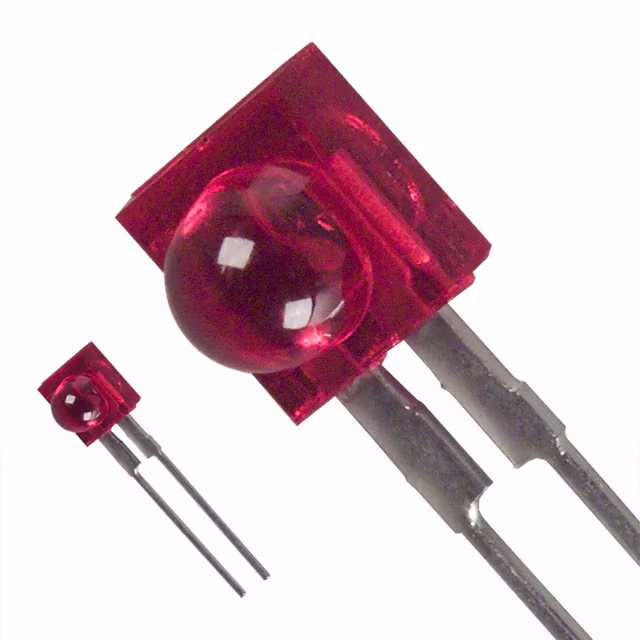

LN65EMITTER IR 950NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 100mA | 4.3mW/sr @ 100mA | 950nm | 1.3V | 70° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|

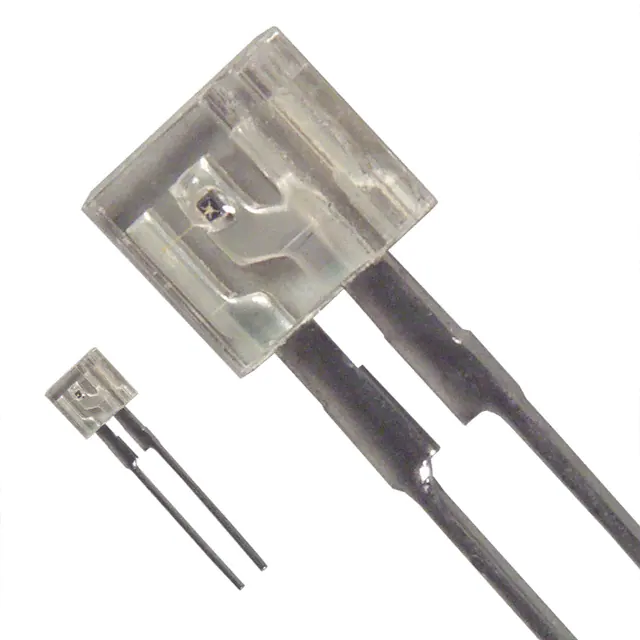

LNA2603FEMITTER IR 940NM 100MA RADIAL |
0 |
|
Технический лист |
- | Radial | - | Obsolete | Infrared (IR) | 100mA | 3mW/sr @ 100mA | 940nm | 1.3V | 160° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
|
AN306EMITTER IR 950NM 100MA AXIAL |
0 |
|
- |
- | Axial | - | Obsolete | Infrared (IR) | 100mA | - | 950nm | - | - | Top View | -30°C ~ 85°C (TA) | - | - | Through Hole |
|
|
AN304EMITTER IR 950NM 100MA T 1 3/4 |
0 |
|
Технический лист |
- | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 6mW/sr @ 50mA | 950nm | 1.3V | 50° | Top View | -30°C ~ 85°C (TA) | - | - | Through Hole |
|
|
AN501EMITTER IR 950NM AXIAL |
0 |
|
Технический лист |
- | Axial | Bulk | Obsolete | Infrared (IR) | - | 3mW/sr @ 50mA | 950nm | - | - | Top View | -30°C ~ 85°C (TA) | - | - | Through Hole |
