Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-C-10-CW-12VLED ENG VS WHT LNR STRP 6250K |
37 |
|
Технический лист |
VS | Box | Active | LED Engine | White, Cool | 6250K | - | Linear Light Strip, Plug and Play | 203lm | - | - | 12V | - | - | 80 | - | Dimming, IP50 | 254.00mm L x 23.90mm W | 8.20mm | - | Flat |
|
VS-F-10-WW-12VLED ENG VS WHT LNR STRP 3000K |
24 |
|
Технический лист |
VS | Box | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip, Plug and Play | 155lm | - | - | 12V | - | - | 80 | - | Dimming, IP50 | 254.00mm L x 23.90mm W | 8.20mm | - | Flat |
|
CXA3590-0000-000R0HBD40FLED COB XLAMP NEUT WHT SQU 4000K |
13 |
|
Технический лист |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 77V | 114 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
BXRC-50G10K1-C-74LED COB VERO 29 WHT RND 5000K |
92 |
|
Технический лист |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17235lm (Typ) | 1.71A | 25°C | 69.4V | 145 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
L2C2-40901208E1500LED COB LUXEON WHT RECT 4000K |
72 |
|
Технический лист |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 3767lm (Typ) | 900mA | 85°C | 35V | 120 lm/W | 1.8A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | Flat |
|
L2C5-PR001211E1900LED COB LUXEON WARM WHT SQ 3500K |
81 |
|
Технический лист |
LUXEON CoB FreshFocus | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4470lm (Typ) | 1.2A | 85°C | 34.8V | 107 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
LHC1-3090-1211CRSPLED COB LUXEON WM WHT SQ 3000K |
30 |
|
- |
LUXEON CoB, CrispWhite | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3750lm (Typ) | 1.2A | 85°C | 35.5V | 90 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|

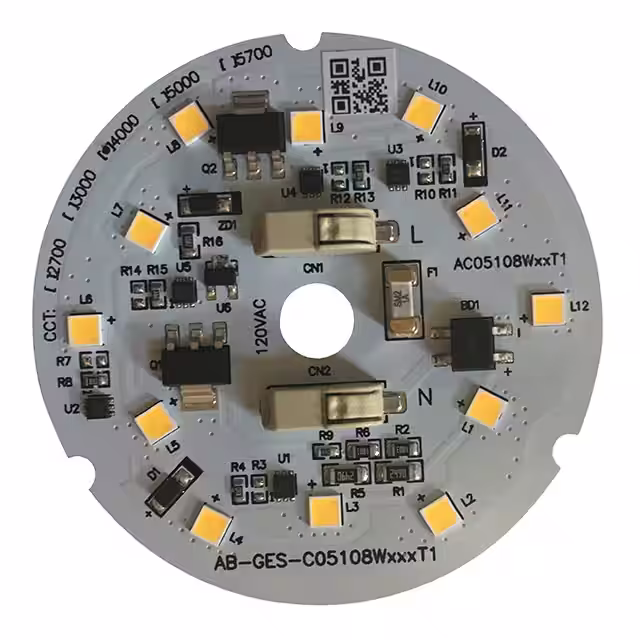

AB-GES-C05108W503T1LED ENG AB-GES COOL WH RND 5000K |
46 |
|
Технический лист |
AB-GES | Bag | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 760lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 55.00mm Dia | - | - | Flat |
|
BXRC-30E10K0-C-83-SELED COB VERO SE29C WH RND 3000K |
38 |
|
Технический лист |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 16003lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-40G10K0-C-83-SELED COB VERO SE 29C WH RND 4000K |
34 |
|
Технический лист |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13744lm (Typ) | 1.3A | 25°C | 66.7V | 159 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
BXRC-40E10K0-C-83-SELED COB VERO SE 29C WH RND 4000K |
13 |
|
Технический лист |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 16474lm (Typ) | 1.3A | 25°C | 66.7V | 190 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-30C10K1-C-84-SELED COB VERO SE 29C WH RND 3000K |
13 |
|
Технический лист |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 16756lm (Typ) | 1.3A | 25°C | 66.7V | 193 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
BXRC-65C10K1-C-83LED COB VERO 29C WHT ROUND 6500K |
45 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 16892lm (Typ) | 1.3A | 25°C | 66.7V | 195 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-50E10K1-C-83LED COB VERO 29C WHT ROUND 5000K |
41 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 16704lm (Typ) | 1.3A | 25°C | 66.7V | 193 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30H10K0-C-83LED COB VERO 29C WHT RND 3000K |
30 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 11796lm (Typ) | 1.3A | 25°C | 66.7V | 136 lm/W | 4.75A | 97 (Typ) | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
CMA3090-0000-000Q0B0A50ELED COB XLAMP COOL WHT SQU 5000K |
96 |
|
Технический лист |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 13396lm (Typ) | 1.8A | 85°C | 45V | 165 lm/W | 3.6A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
35 |
|
Технический лист |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11246lm (Typ) | 1.8A | 85°C | 45V | 139 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
SMJD-4846144G-XXN100E20E039ALLSUNLIKE CRI95 LINEAR MODULE 144L |
56 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

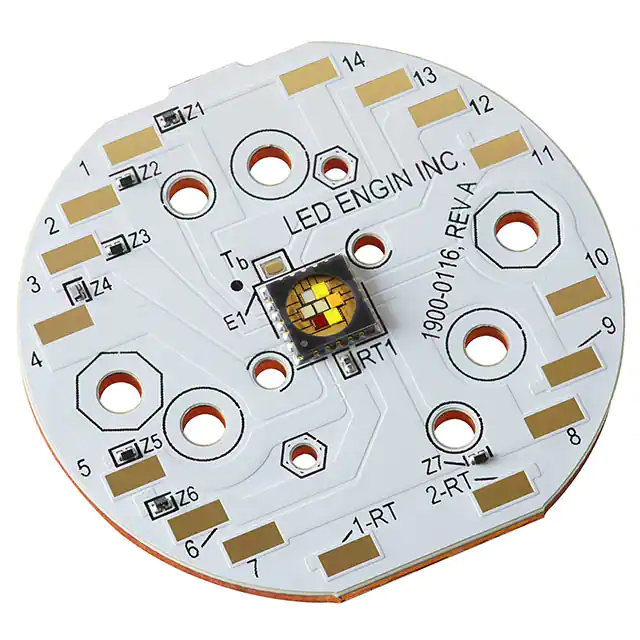

LZ7-A4M2PD-0000LED MOD LZ7 6-COLOR ROUND |
75 |
|
Технический лист |
LZ7 | Tray | Obsolete | LED Module | Red, Green, Blue, Amber, Cyan, Lime | - | 623nm Red, 520nm Green, 451nm Blue, 590nm Amber, 500nm Cyan | Round | 95lm Red, 180lm Green, 42lm Blue, 140lm Amber, 135lm Cyan, 620lm Lime | 1A Red, 1A Green, 1A Blue, 1A Amber, 1A Cyan, 1A Lime | 25°C | 2.3V Red, 3.55V Green, 3.05V Blue, 3.3V Amber, 3.45V Cyan, 6.1V Lime | 41 lm/W Red, 51 lm/W Green, 14 lm/W Blue, 42 lm/W Amber, 39 lm/W Cyan, 102 lm/W Lime | 2.5A Red, 3A Green, 3A Blue, 1.5A Amber, 1A Cyan, 2.5A Lime | - | 114° | - | 47.00mm Dia | 3.04mm | - | Flat |
|
L2M0-5070004MC2200LED MOD LUXEON COOL WH SQ 5000K |
11 |
|
Технический лист |
LUXEON XR-M | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Square | 4363lm (Typ) | 700mA | 85°C | 43.8V | 142 lm/W | 1.05A | 70 | - | - | 73.00mm L x 73.00mm W | 6.21mm | - | Domed |
