Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2287-0000-000P0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
96 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 10974lm (Typ) | 1.62A | 85°C | 50.5V | 134 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
LHC1-2280-1211LED COB LUXEON WM WHT SQ 2200K |
11 |
|
- |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Square | 3975lm (Typ) | 1.2A | 85°C | 35.5V | 93 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
CXA3070-0000-000N00AB30GLED COB XLAMP WARM WHT SQ 3000K |
7 |
|
Технический лист |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.9A | 85°C | 36V | 128 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
BXRC-27G10K0-L-23LED COB VERO 29 ARRAY RND 2700K |
23 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 8666lm (Typ) | 2.1A | 25°C | 38V | 109 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
SI-B8RZ91B2CUSLED MOD LT-VB24F LNR STRP 5000K |
23 |
|
Технический лист |
LT-VB24F | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 15632lm (14070lm ~ 17195lm) | 2.24A | 65°C | 48.8V | 143 lm/W | 3.24A | 80 | - | - | 1200.00mm L x 39.80mm W | 5.50mm | - | Flat |
|
|
SW-27-50-220-01-90LED MOD SELECTWHT LNR 5000K 22" |
91 |
|
Технический лист |
SelectWHITE™ | Box | Obsolete | LED Module | White, Warm / White, Cool | 2200K, 5000K | - | Linear Light Strip | 2265lm, 2694lm | 600mA | - | 28.8V | 131 lm/W, 156 lm/W | 660mA | 90 | 120° | - | 558.80mm L x 19.99mm W | - | - | Flat |
|

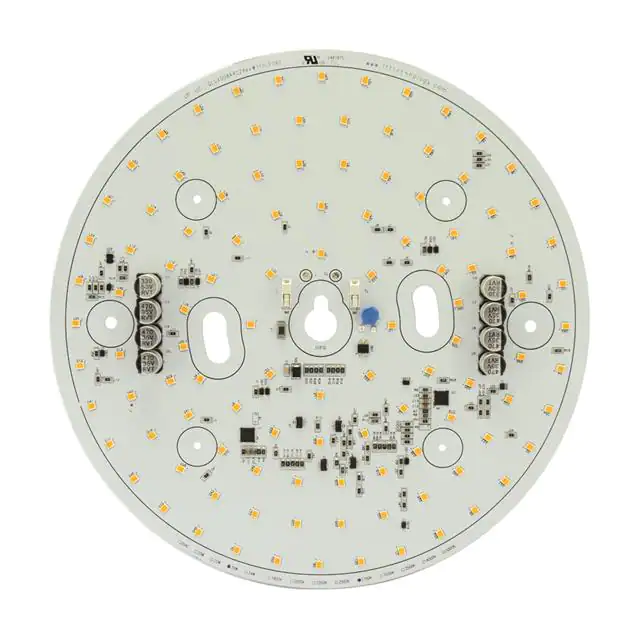

QLUXDOBAR22830W11927LED ENG QLUX NEUT WHT RND 2700K |
95 |
|
Технический лист |
QLUX | Bag | Active | LED Engine | White, Neutral | 2700K 3-Step MacAdam Ellipse | - | Round | 2500lm | - | 25°C | 120VAC | 80 lm/W | - | 90 | 160° | Dimming-ELV, Triac | 228.00mm Dia | - | - | Flat |
|
LXK8-PW27-0024ALED MOD LUXEON K WH STARBRD |
57 |
|
Технический лист |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 2378lm (2230lm ~ 2670lm) | 350mA | 85°C | 63V | 108 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - | Domed |
|
|
SI-B8U923B20WWLED MOD V SER GEN3 LNR 3500K |
60 |
|
Технический лист |
V Gen3 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 15360lm (14300lm ~ 16890lm) | 2.02A | 65°C | 45V | 169 lm/W | 2.02A | 80 | 118° | - | 1120.00mm L x 39.80mm W | 3.70mm | - | Flat |
|
|
SI-B8V923B20WWLED MOD V GEN3 WH LNR STR 3000K |
59 |
|
- |
V Gen3 | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 15140lm (Typ) | 2.02A | 65°C | 45V | 167 lm/W | 2.02A | 80 | 118° | - | 1120.00mm L x 39.80mm W | 3.70mm | - | Flat |
|
|
LXK8-PW40-0024ALED MOD LUXEON K WH STARBRD |
10 |
|
Технический лист |
LUXEON K | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 2660lm (2530lm ~ 3030lm) | 350mA | 85°C | 63V | 121 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - | Domed |
|

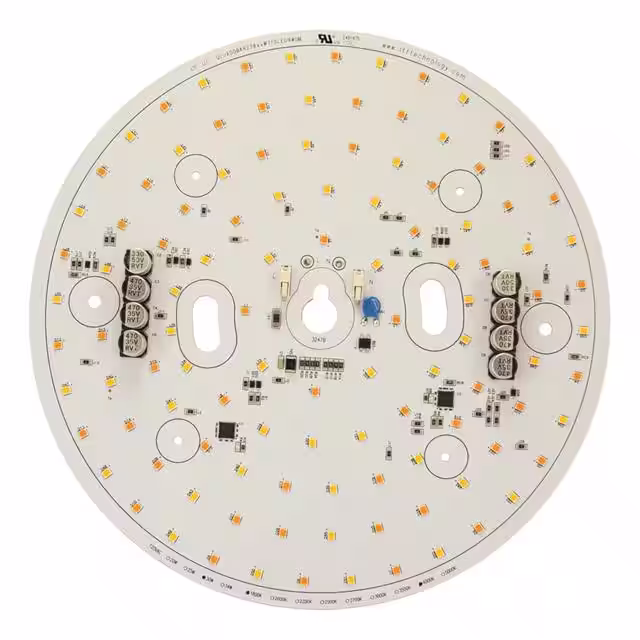

QLUXDOBAR22830W11WDMLED QLUX NEUT WHT ROUND 3000K |
78 |
|
Технический лист |
QLUX | Bag | Active | - | White, Neutral | 1800K ~ 3000K 3-Step MacAdam Ellipse | - | Round | 2400lm | - | 25°C | 120VAC | 80 lm/W | - | 90 | 160° | Dimming-ELV, Triac | 228.00mm Dia | - | - | - |
|
OPA729WLED MOD OPA729 WH LNR STR 6500K |
0 |
|
- |
OPA729 | Bulk | Obsolete | LED Module | White, Cool | 6500K | - | Linear Light Strip | 480lm (Typ) | 700mA | 25°C | 18V | 38 lm/W | 700mA | - | 120° | With Connector | 127.00mm L x 29.21mm W | 3.30mm | - | Flat |
|
BXRC-30G1KH0-C-83LED COB VERO 29C WHT RND 3000K |
50 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 13637lm (Typ) | 1.3A | 25°C | 66.7V | 157 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27G10K0-C-83LED COB VERO 29C WM WH RND 2700K |
50 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12457lm (Typ) | 1.3A | 25°C | 66.7V | 144 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27E10K0-C-83LED COB VERO 29C WM WH RND 2700K |
50 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 15099lm (Typ) | 1.3A | 25°C | 66.7V | 174 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30G10K0-C-83LED COB VERO 29C WHT RND 3000K |
50 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 13023lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27G1KH0-C-83LED COB VERO 29C WM WH RND 2700K |
48 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12995lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
BXRC-35G10K0-C-83-SELED COB VERO SE 29C WH RND 3500K |
40 |
|
Технический лист |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13461lm (Typ) | 1.3A | 25°C | 66.7V | 155 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
CLM-22-HS-12-36-AC30-P1-7LED COB CLM22 HORT WHITE SQU |
93 |
|
Технический лист |
CLM-22 Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
