Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SST-50-W40S-F21-H3500LED COB SST-50 NEUT WH SQ 4000K |
25 |
|
Технический лист |
SST-50 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 413lm (400lm ~ 425lm) | 1.75A | 25°C | 3.2V | 74 lm/W | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia | Domed |
|
BXRC-30C4001-C-84-SELED COB VERO SE 18C WH RND 3000K |
96 |
|
Технический лист |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 6614lm (Typ) | 1.05A | 25°C | 33.9V | 186 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
|
BXRC-65C4001-C-84-SELED COB VERO SE 18C WH RND 6500K |
95 |
|
Технический лист |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 6651lm (Typ) | 1.05A | 25°C | 33.9V | 187 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXRC-65E4001-C-84-SELED COB VERO SE 18C WH RND 6500K |
54 |
|
Технический лист |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 6391lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
|
BXRC-57C4001-C-84-SELED COB VERO SE 18C WH RND 5700K |
39 |
|
Технический лист |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 6651lm (Typ) | 1.05A | 25°C | 33.9V | 187 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
CXA2011-0000-000P00H00E7LED COB XLAMP WARM WHT SQ 3000K |
55 |
|
- |
XLamp® CXA2011 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 80 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - | Flat |
|
SPHWHAHDNM271ZR3DBLED COB D GEN2 COOL WHT SQ 5000K |
47 |
|
Технический лист |
COB D Gen2 Plus | Box | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 13196lm (Typ) | 1.62A | 85°C | 51.1V | 159 lm/W | 3.24A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
4850LED COB PINK LINEAR STRIP |
18 |
|
Технический лист |
- | Bulk | Obsolete | Chip On Board (COB) | Pink | - | - | Linear Light Strip, Flexible | - | - | - | 9V ~ 12V | - | 800mA | - | - | - | - | - | - | Flat |
|
SI-B8R11156HUSLED MOD LT-H562D LNR STRP 5000K |
20 |
|
Технический лист |
LT-H562D | Bulk | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 2080lm (Typ) | 480mA | 50°C | 22.5V | 193 lm/W | - | 80 | - | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
|
SPHWHAHDNF27Y3WRT1LED COB T-SERIES WHITE SQ 3850K |
76 |
|
Технический лист |
COB T-Series | Bulk | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 2116lm (1956lm ~ 2275lm) | - | 25°C | 35.5V | - | 800mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.60mm | - | Flat |
|
BXRC-57E4001-C-83LED COB VERO 18C WHT ROUND 5700K |
100 |
|
Технический лист |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
BXRC-57C4001-C-83LED COB VERO 18C WHT ROUND 5700K |
100 |
|
Технический лист |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 6739lm (Typ) | 1.05A | 25°C | 33.9V | 189 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
BXRC-65E4001-C-83LED COB VERO 18C WHT ROUND 6500K |
97 |
|
Технический лист |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 6475lm (Typ) | 1.05A | 25°C | 33.9V | 182 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
CXA2011-0000-000P00G00E7LED COB XLAMP WARM WHT SQ 3000K |
69 |
|
- |
XLamp® CXA2011 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 840lm (780lm ~ 900lm) | 270mA | 85°C | 40V | 78 lm/W | 1A | 80 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - | Flat |
|
|
CLU03Q-1210E1-402H5X3LED COB CLU03Q NEUT WHT SQ 4000K |
35 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4800lm | 900mA | 85°C | 33.8V | 147 lm/W | 2.3A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1210E1-402M2X2LED COB CLU03Q NEUT WHT SQ 4000K |
33 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5194lm (Typ) | 900mA | 85°C | 33.8V | 159 lm/W | 2.3A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1210E1-403L7X4LED COB CLU03Q NEUT WHT SQ 4000K |
23 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5534lm (Typ) | 900mA | 85°C | 33.8V | 169 lm/W | 2.3A | 70 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU04Q-1212E1-352M2X2LED COB CLU04Q WARM WHT SQ 3500K |
30 |
|
Технический лист |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 6493lm (Typ) | 1.08A | 85°C | 33.8V | 165 lm/W | 2.76A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|

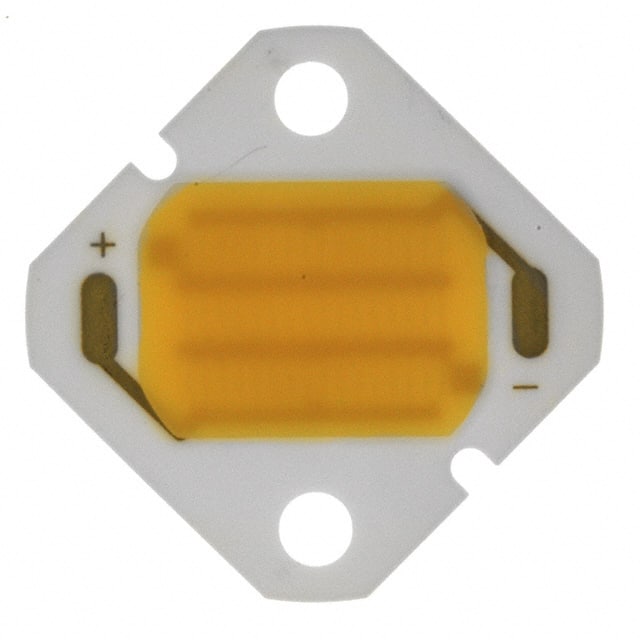

GW5BDF15L00LED MOD 7WATT ZENIGATA 2800K |
27 |
|
Технический лист |
- | Tray | Obsolete | LED Module | White, Warm | 2800K | - | Square | 400lm (Typ) | 640mA | 25°C | 10.2V | - | 700mA | - | - | - | 18.00mm L x 18.00mm W | 2.00mm | - | Flat |
E0900.jpg)
|
L2C5-40801202E0900LED COB LUXEON WHT RECT 4000K |
48 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 999lm (Typ) | 200mA | 85°C | 34.5V | 145 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
