Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB1820-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
70 |
|
Технический лист |
XLamp® CXB1820 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2708lm (Typ) | 550mA | 85°C | 35V | 141 lm/W | 1.044A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CLU03Q-1208E1-403L7X4LED COB CLU03Q NEUT WHT SQ 4000K |
48 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4523lm (Typ) | 720mA | 85°C | 33.8V | 173 lm/W | 1.84A | 70 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1205E1-402H7X5LED COB CLU03Q NEUT WHT SQ 4000K |
45 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1988lm (Typ) | 450mA | 85°C | 33.8V | 131 lm/W | 1.15A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1205E1-302H7X5LED COB CLU03Q WARM WHT SQ 3000K |
39 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1883lm (Typ) | 450mA | 85°C | 33.8V | 124 lm/W | 1.15A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1205E1-272H7X5LED COB CLU03Q WARM WHT SQ 2700K |
34 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1789lm (Typ) | 450mA | 85°C | 33.8V | 118 lm/W | 1.15A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU713-1204E1-273H5X3LED COB CLU713 WARM WHT SQ 2700K |
43 |
|
Технический лист |
CLU713 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2886lm (Typ) | 700mA | 85°C | 36.5V | 106 lm/W | 1.2A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 8.50mm Dia | Flat |
|
|
CLU713-1204E1-353H5X3LED COB CLU713 WARM WHT SQ 3500K |
38 |
|
Технический лист |
CLU713 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3180lm (Typ) | 700mA | 85°C | 36.5V | 117 lm/W | 1.2A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 8.50mm Dia | Flat |
|
|
CMB1818-R096-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
96 |
|
Технический лист |
XLamp® CMB1818 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2047lm | 500mA | 85°C | 33.5V | 122 lm/W | 1.5A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CLU03Q-1206E1-503L7X4LED COB CLU03Q COOL WHT SQ 5000K |
46 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3459lm (Typ) | 540mA | 85°C | 33.8V | 176 lm/W | 1.38A | 70 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1206E1-352M2X2LED COB CLU03Q WARM WHT SQ 3500K |
40 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3203lm (Typ) | 540mA | 85°C | 33.8V | 163 lm/W | 1.38A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1206E1-402H5X3LED COB CLU03Q NEUT WHT SQ 4000K |
40 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2931lm (Typ) | 540mA | 85°C | 33.8V | 149 lm/W | 1.38A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1206E1-272M2X2LED COB CLU03Q WARM WHT SQ 2700K |
48 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3016lm (Typ) | 540mA | 85°C | 33.8V | 153 lm/W | 1.38A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1206E1-352H5X3LED COB CLU03Q WARM WHT SQ 3500K |
48 |
|
Технический лист |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2819lm (Typ) | 540mA | 85°C | 33.8V | 143 lm/W | 1.38A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
12523-A-279-2835LED MOD WM WHT LNR STRP 2700K |
50 |
|
Технический лист |
- | Box | Active | LED Module | White, Warm | 2700K | - | Linear Light Strip | 4831lm (Typ) | 1.2A | - | 32.45V | 124 lm/W | 1.8A | 90 | - | - | 1118.40mm L x 20.00mm W | - | - | Flat |
|

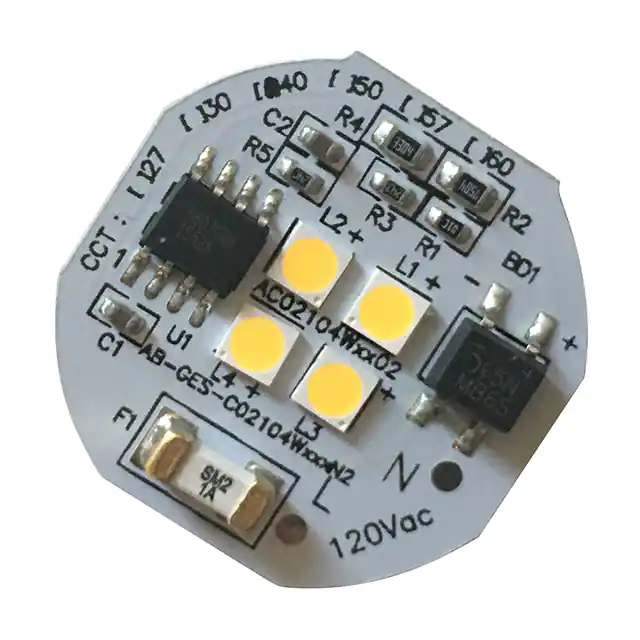

AB-GES-C02104W50NN2LED ENG AB-GES COOL WH RND 5000K |
78 |
|
Технический лист |
AB-GES | Bag | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 340lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 25.70mm Dia | - | - | Flat |
|

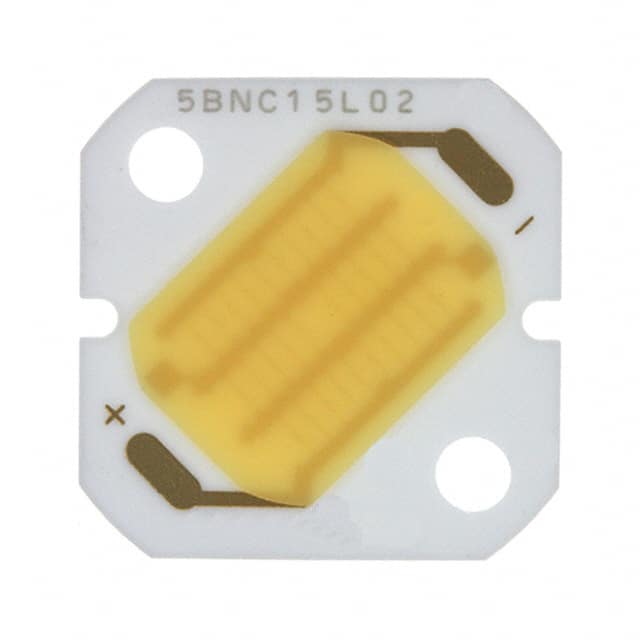

GW5BNC15L02LED MOD 3.5WATT ZENIGATA 5000K |
97 |
|
Технический лист |
- | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Square | 170lm (Typ) | 360mA | 25°C | 10.2V | - | 400mA | - | - | - | 18.00mm L x 18.00mm W | 2.00mm | - | Flat |
|
|
SL-B8T1N50L4WWLED MOD NEUT WHT SQUARE 4000K |
61 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Neutral | 4000K 7-Step MacAdam Ellipse | - | Square | 2430lm (Typ) | 700mA | 70°C | 19.7V | 176 lm/W | 770mA | 80 | 120° | - | 81.00mm L x 81.00mm W | 5.30mm | - | Flat |
|
|
AB-GES-C02104W30NN2LED ENG AB-GES WH ROUND 3000K |
30 |
|
Технический лист |
AB-GES | Bag | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 300lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 25.70mm Dia | - | - | Flat |
|
|
S4WM-1566308036-0D000G3S-00001LED COB MJT COB WM WHT SQ 3000K |
60 |
|
- |
MJT COB | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4650lm (Typ) | 900mA | 85°C | 34.4V | 150 lm/W | 2.25A | 80 | 118° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|
|
L2C5-30801205F1300LED COB LUXEON WHT RECT 3000K |
65 |
|
Технический лист |
LUXEON CoB Core Range Gen 4 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3137lm (Typ) | 600mA | 85°C | 35V | 149 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
