Переключатели блокировки клавиш
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Функция переключения | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Съемные позиции ключа | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Размеры выреза панели | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12BTW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V |
8 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BFW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
14 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-004SWITCH KEYLOCK 2POS SPDT 3A 250V |
21 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
25 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
16 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
28 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
5 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12AFW01-004SWITCH KEYLOCK 2POS SPDT 3A 250V |
26 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
12 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
16 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-013SWITCH KEYLOCK 2POS SPDT 3A 250V |
14 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-017SWITCH KEYLOCK 2POS SPDT 3A 250V |
11 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
2 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

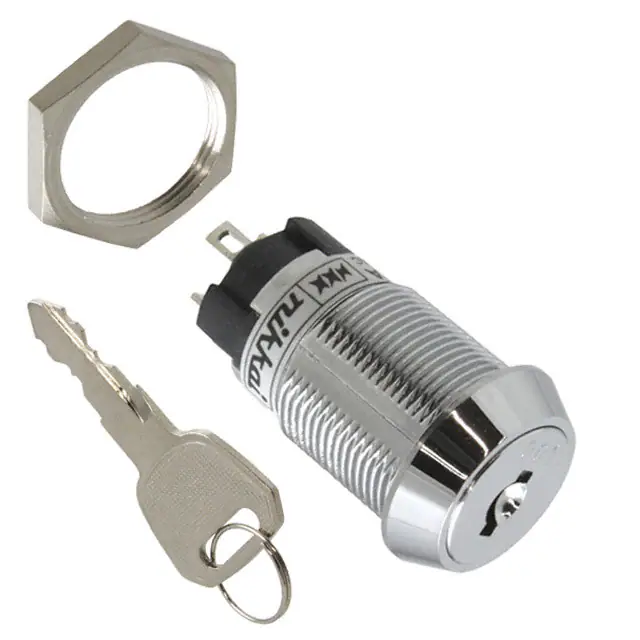

CKL12AFW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
6 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-017SWITCH KEYLOCK 2POS SPDT 3A 250V |
32 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK14DG13SWITCH KEYLK 3POS SP3T 0.4VA 28V |
36 |
|
Технический лист |
SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|

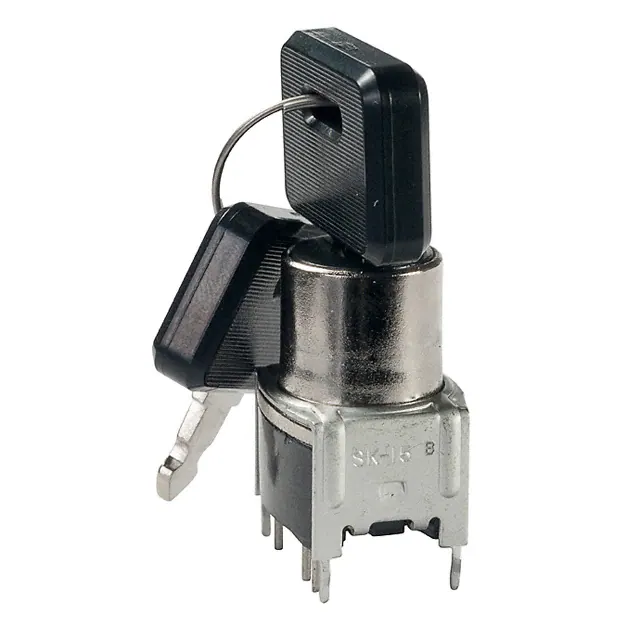

SK15BG13SWITCH KEYLK 2POS SPDT 0.4VA 28V |
21 |
|
Технический лист |
SK | Bulk | Active | SPDT | 2 | On-Mom | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
SK15BG30SWITCH KEYLK 2POS SPDT 0.4VA 28V |
46 |
|
Технический лист |
SK | Bulk | Active | SPDT | 2 | On-Mom | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
CKM13EFW01-002SWITCH KEYLOCK 3POS SPDT 3A 250V |
19 |
|
Технический лист |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM13EFW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
23 |
|
Технический лист |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
