Переключатели блокировки клавиш
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Функция переключения | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Съемные позиции ключа | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Размеры выреза панели | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

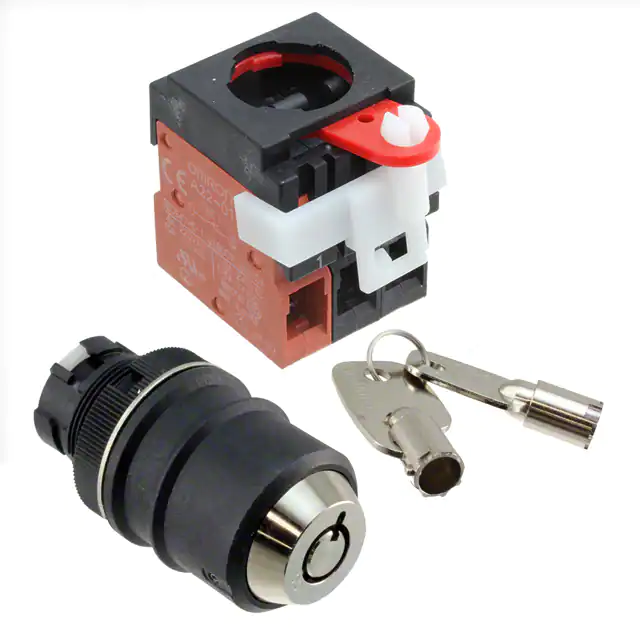

A22TK-2LL-21-K01SWITCH KEYLCK 2POS DPST 10A 110V |
11 |
|
Технический лист |
A22TK | Bulk | Active | DPST-NO + SPST-NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
SW-R-K10-ASWITCH KEYLOCK 2POS SPST 4A 125V |
29 |
|
Технический лист |
SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
CKL12BFW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V |
10 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
18 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BTW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
14 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
11 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

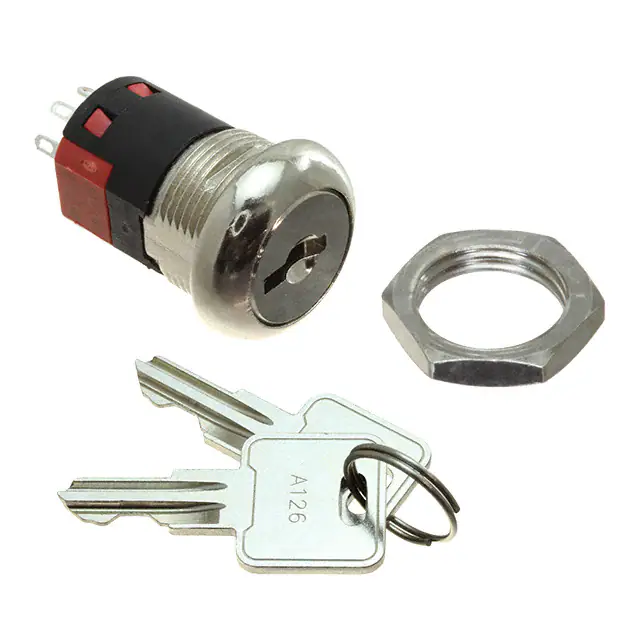

Y2011C2C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
76 |
|
Технический лист |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 2 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
CKL13ETW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
16 |
|
Технический лист |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y100AA2C203NQESWITCH KEYLOCK 3POS SP3T 4A 125V |
36 |
|
Технический лист |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|

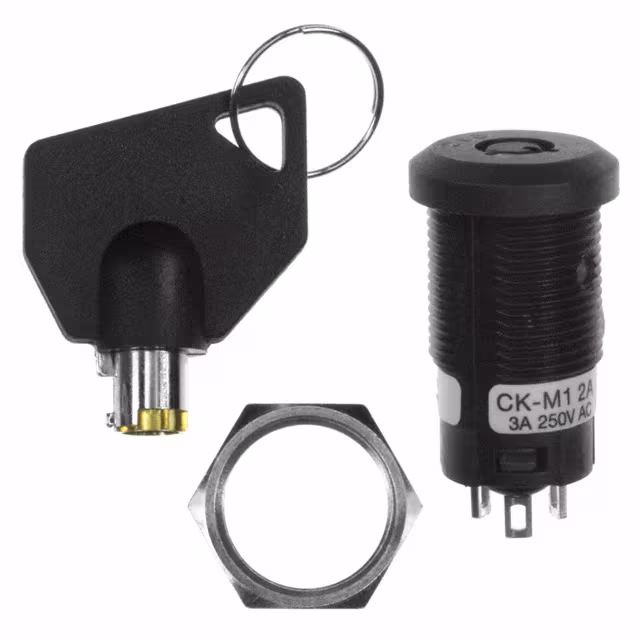

CKM12ATW01-012SWITCH KEYLOCK 2POS SPDT 3A 250V |
79 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BTW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
7 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
50 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
46 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

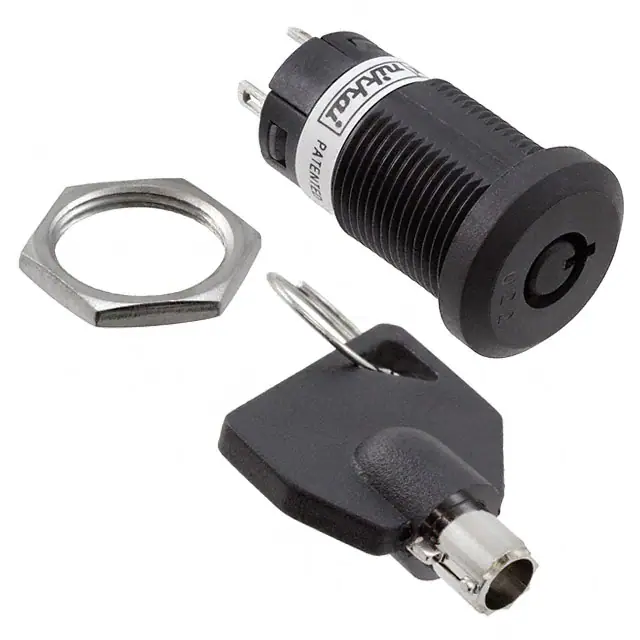

CKM12BTW01-022SWITCH KEYLOCK 2POS SPDT 3A 250V |
37 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM12ATW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
16 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-008SWITCH KEYLOCK 2POS SPDT 3A 250V |
3 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12ATW01-021SWITCH KEYLOCK 2POS SPDT 3A 250V |
98 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

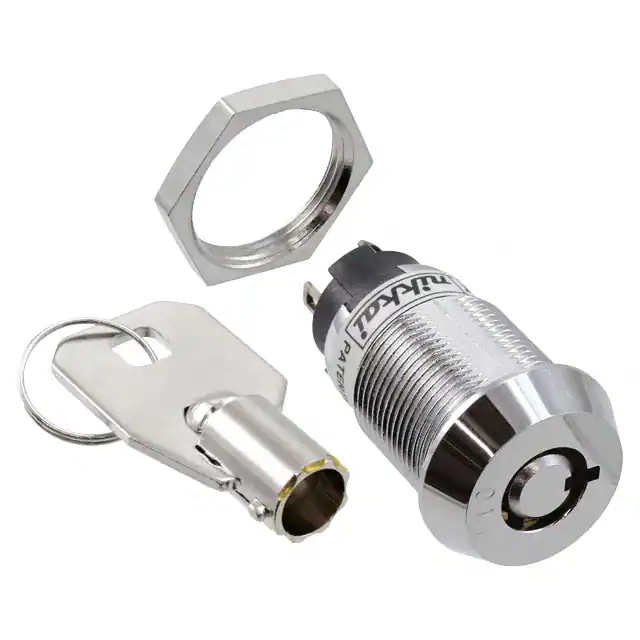

CKL12BTW01-011SWITCH KEYLOCK 2POS SPDT 3A 250V |
25 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12AFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
6 |
|
Технический лист |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-004SWITCH KEYLOCK 2POS SPDT 3A 250V |
51 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
