Датчики приближения - промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип датчика | Расстояние срабатывания | Тип выхода | Частота отклика | Экранирование | Материал - Корпус | Напряжение - Питание | Тип вывода | Рабочая температура | Защита от проникновения | Индикатор |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

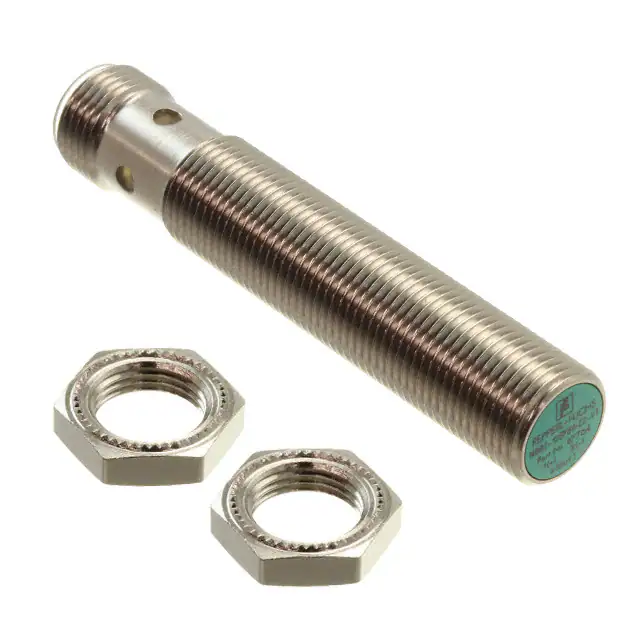

NBB2-12GM50-E2-V1INDUCTIVE SEN 2MM PNP |
13 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|

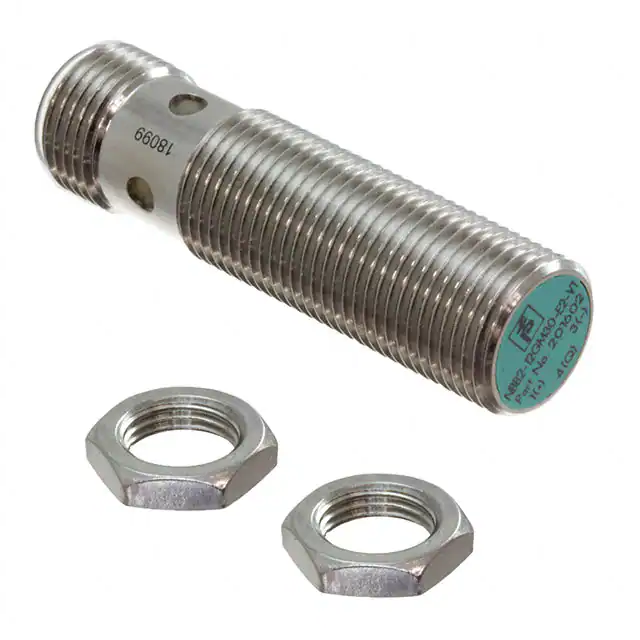

NBB2-12GM30-E2-V1INDUCTIVE SEN 2MM PNP |
7 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

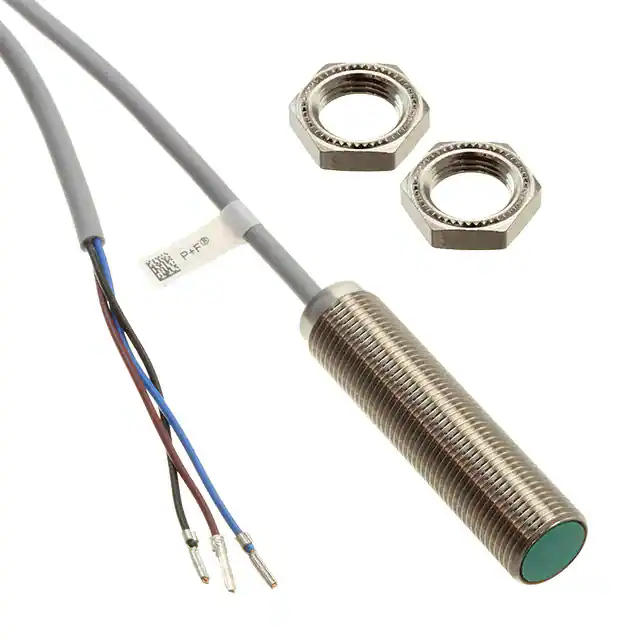

NBB2-12GM50-E2INDUCTIVE SEN 2MM PNP |
3 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBN4-12GM50-E2INDUCTIVE SEN 4MM PNP |
3 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN4-12GM50-E0INDUCTIVE SEN 4MM NPN |
2 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

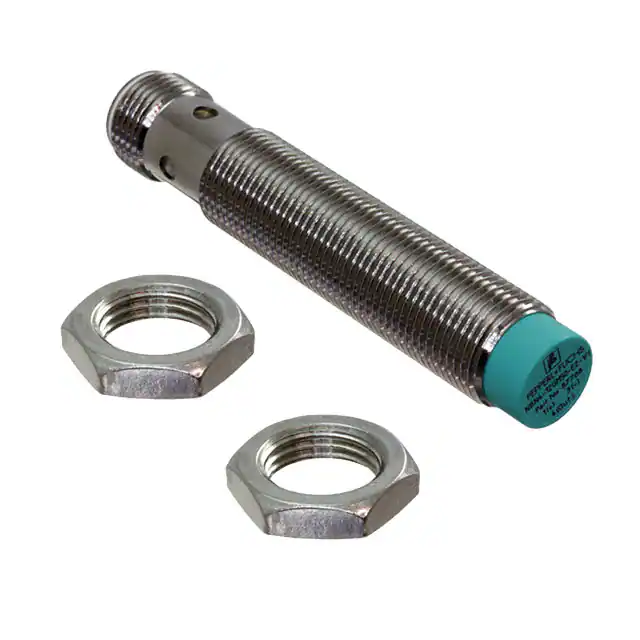

NBN4-12GM50-E2-V1INDUCTIVE SEN 4MM NON-FLUSH PNP |
2 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

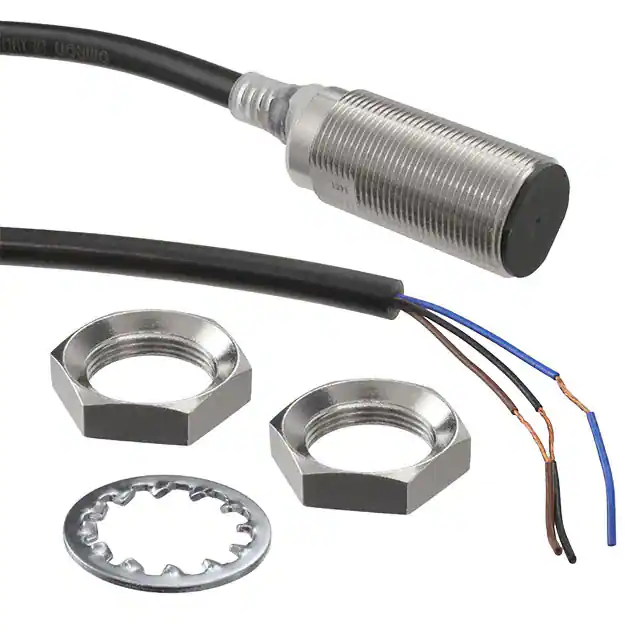

E2E-X5C118 2MSENSOR INDUCT 5MM NPN M18 NO |
14 |
|
Технический лист |
E2E NEXT | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | NPN-NO, 3-Wire | 600Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C | IP67, IP69K | LED |
|
E2E-X4B1T12-R 5MSENSOR INDUCT 4MM PNP M12 NO |
14 |
|
Технический лист |
E2E NEXT | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | 1kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C | IP67, IP69K | LED |
|

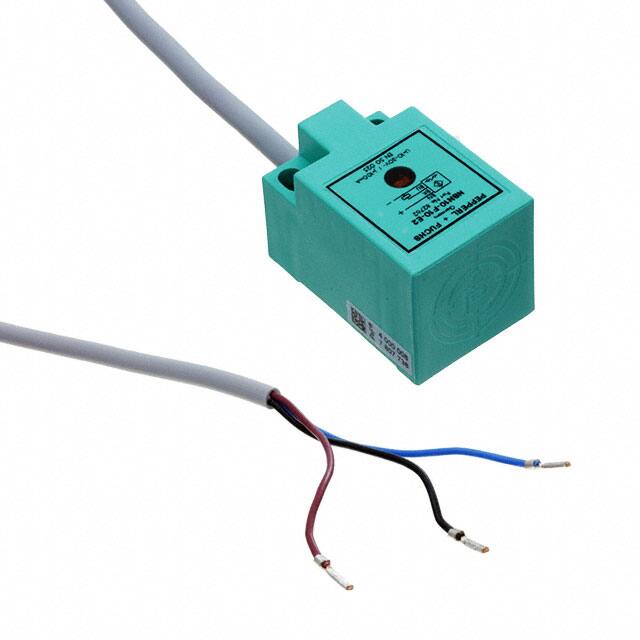

NBN10-F10-E2INDUCTIVE SEN 10MM PNP |
2 |
|
Технический лист |
- | Module | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
1055453SENSOR PROX INDUCTV 3MM IP68 BOX |
8 |
|
Технический лист |
- | Box | Bulk | Active | Inductive | 0.118" (3mm) | PNP-NO, 3-Wire | 2kHz | Unshielded | Plastic | 10V ~ 30V | Connector | -25°C ~ 75°C | IP68 | LED |
|
NBN40-L2-E2-V1INDUCTIVE SEN 40MM PNP |
2 |
|
Технический лист |
- | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
TL-W5MB1SENSOR PROX INDUCT 5MM IP67 MOD |
2 |
|
Технический лист |
- | Module | Bulk | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | 500Hz | Unshielded | Plastic | 10V ~ 30V | Cable Leads | -25°C ~ 70°C | IP67 | LED |
|
IA12ESF02UCSENSOR PROX INDUCTIVE 2MM CYLIND |
11 |
|
Технический лист |
IA | Cylinder, Threaded | Bag | Active | Inductive | 0.079" (2mm) | SCR | 1.4kHz | Unshielded | Stainless Steel | 6V ~ 35V | Cable Leads | -25°C ~ 70°C | IP67, NEMA 1,3,4,6,13 | LED |
|
NBN3-8GM30-E2INDUCTIVE SEN 3MM PNP |
6 |
|
Технический лист |
- | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
SJ3.5-NINDUCTIVE SLOT SEN 3.5MM NAMUR |
8 |
|
Технический лист |
- | Module | Box | Active | Inductive | - | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable Leads | -25°C ~ 100°C | IP67 | No Indicator |
|

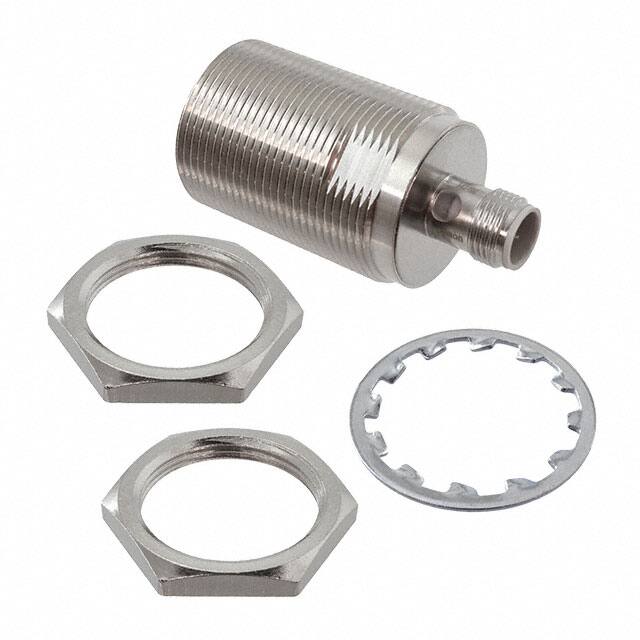

E2E-X10C130-M1SENSOR INDUCT 10MM NPN M30 NO |
6 |
|
Технический лист |
E2E NEXT | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | NPN-NO, 3-Wire | 400Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 85°C | IP67, IP69K | LED |
|
E2A-S08KS02-WP-C1 2MSENSOR PROX INDUCTIVE 2MM CYLIND |
4 |
|
Технический лист |
E2A | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | 1.5kHz | Shielded | Stainless Steel | 10V ~ 32V | Cable Leads | -40°C ~ 70°C | IP67, IP69K | LED |
|
EI1204NPOSSSENSOR PROX INDUCTIVE 4MM CYLIND |
9 |
|
Технический лист |
EI | Cylinder, Threaded - M12 | Bag | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | 500Hz | Unshielded | Stainless Steel | 10V ~ 40V | Cable Leads | -25°C ~ 70°C | IP67, NEMA 1,3,4,6,13 | LED |
|

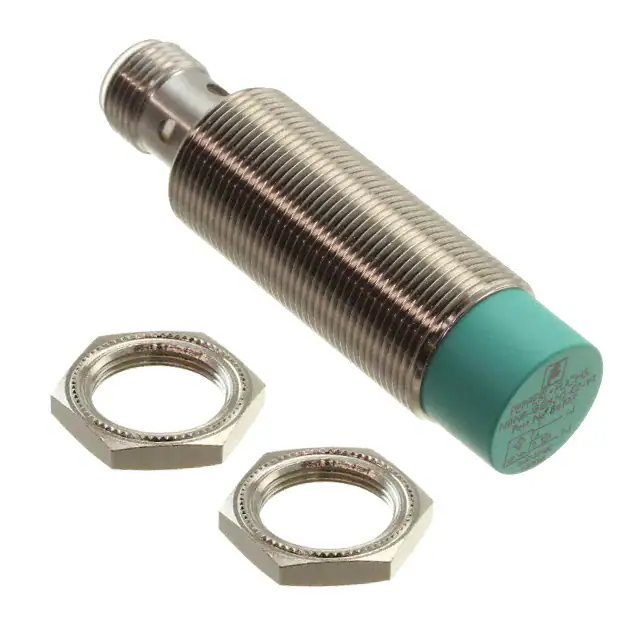

NBN8-18GM50-E2-V1INDUCTIVE SEN 8MM NON-FLUSH PNP |
4 |
|
Технический лист |
- | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
|
IFS209SENSOR PROX INDUCTIVE 7MM CYLIND |
4 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.276" (7mm) | NPN/PNP-NO | - | Unshielded | Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
