Датчики приближения - промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип датчика | Расстояние срабатывания | Тип выхода | Частота отклика | Экранирование | Материал - Корпус | Напряжение - Питание | Тип вывода | Рабочая температура | Защита от проникновения | Индикатор |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB250-F77-E2-V31ULTRASONIC SEN 20-250MM PNP |
5 |
|
Технический лист |
- | Module | Box | Active | Ultrasonic | 0.787" ~ 9.843" (20mm ~ 250mm) | PNP-NO | - | Unshielded | Polycarbonate (PC) | 20V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
E2K-X8ME1SENSOR PROX CAP 8MM IP66 CYLIND |
9 |
|
- |
E2K | Cylinder, Threaded - M18 | Bulk | Active | Capacitive | 0.315" (8mm) | NPN-NO, 3-Wire | 100Hz | Unshielded | Plastic | 10V ~ 30V | Cable Leads | -25°C ~ 70°C | IP66 | LED |
|
NBN15-30GK60-AR-3MINDUCTIVE SEN 15MM SPDT |
15 |
|
Технический лист |
- | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | Relay | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -40°C ~ 70°C | IP68 | LED |
|
GF711SSENSOR PROX INDUCTIV 0.5-4MM CYL |
18 |
|
Технический лист |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.020" ~ 0.157" (0.5mm ~ 4mm) | PNP, 4-Wire | - | Unshielded | Polybutylene Terephthalate (PBT), Stainless Steel | 19.2V ~ 30V | Connector | -25°C ~ 70°C | IP65, IP67 | LED |
|
E2EC-CR8D1SENSOR PROX INDUCT 0.8MM CYLIND |
9 |
|
Технический лист |
E2E | Cylinder | Box | Active | Inductive | 0.031" (0.8mm) | NPN-NO, 2-Wire | 1.5kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -25°C ~ 70°C | IP67 | LED |
|
NBB20-U2-UUINDUCTIVE SEN 20MM NO/NC |
16 |
|
Технический лист |
- | Module | Box | Active | Inductive | 0.787" (20mm) | SCR-NC/NO, 2-Wire | - | Unshielded | Polyamide (PA) | 20 VAC ~ 253 VAC, 20 VDC ~ 300 VDC | - | -25°C ~ 85°C | IP67 | LED |
|
E2K-C25MF1SENSOR PROX CAP 3MM-25MM CYLIND |
23 |
|
Технический лист |
E2K | Cylinder | Box | Active | Capacitive | 0.118" ~ 0.984" (3mm ~ 25mm) | PNP-NO, 3-Wire | 70Hz | Unshielded | Plastic | 10V ~ 40V | Cable Leads | -25°C ~ 70°C | IP66 | LED |
|
E2KQ-X10ME1SENSOR PROX CAP 6MM-10MM CYLIND |
21 |
|
Технический лист |
E2K | Cylinder, Threaded - M18 | Bulk | Active | Capacitive | 0.236" ~ 0.394" (6mm ~ 10mm) | NPN-NO, 3-Wire | 35Hz | Unshielded | Plastic | 10V ~ 30V | Cable Leads | -10°C ~ 55°C | IP66 | LED |
|

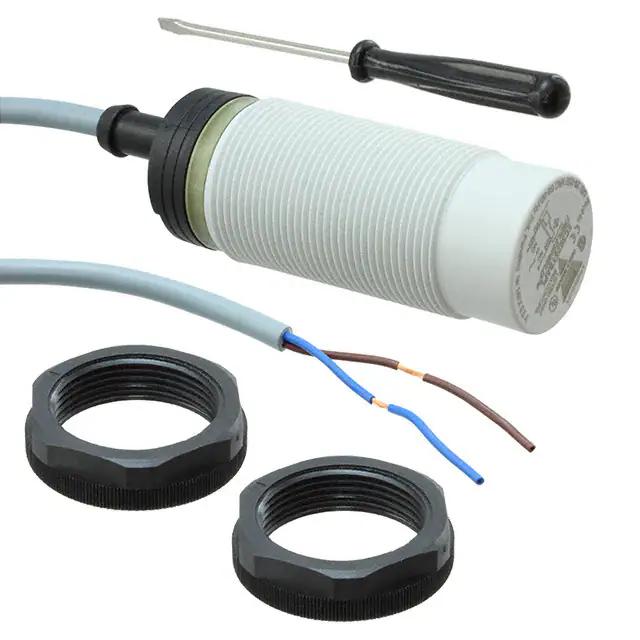

CA30CLN25CPSENSOR PROX CAPACITIVE 25MM CYL |
6 |
|
Технический лист |
CA | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.984" (25mm) | - | 10Hz | Shielded | Plastic | 20 VAC ~ 250 VAC | Cable Leads | -25°C ~ 80°C | IP67 | LED |
|
NJ2-PD-E02-2.062-V95INDUCTIVE SEN CYLINDER POSITION |
9 |
|
Технический лист |
- | Module | Box | Active | Inductive | 0.079" (2mm) | NPN/PNP-NO, 3-Wire | - | Unshielded | Zinc Die-Cast | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
T30UXDCULTRASONIC 300MM-3M NPN/PNP |
18 |
|
Технический лист |
T30UX | Module | Bulk | Active | Ultrasonic | 11.811" ~ 118.11" (300mm ~ 3000mm) | NPN/PNP-NC/NO, 4-Wire | 114kHz | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -40°C ~ 70°C | IP67 | LED |
|
T30UXUAQ8ULTRASONIC 100MM-1M 0-10V |
13 |
|
Технический лист |
T30UX | Module | Bulk | Active | Ultrasonic | 3.937" ~ 39.37" (100mm ~ 1000mm) | Analog Voltage | 224kHz | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NJ2-PD-US-2.062-V93INDUCTIVE SEN CYLINDER POSITION |
6 |
|
Технический лист |
- | Module | Box | Active | Inductive | 0.079" (2mm) | SCR-NC/NO, 2-Wire | - | Unshielded | Zinc Die-Cast | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Connector | -25°C ~ 70°C | IP67 | LED |
|

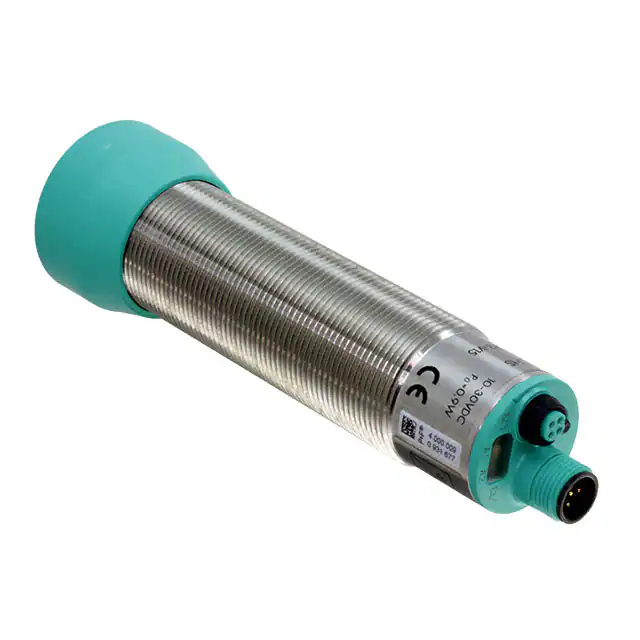

UC4000-30GM-IUR2-V15ULTRASONIC SEN 200-4000MM ANALOG |
6 |
|
Технический лист |
- | Cylinder, Threaded - M30 | Box | Active | Ultrasonic | 7.874" ~ 157.480" (200mm ~ 4000mm) | Analog Current and Voltage | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP65 | LED |
|
SEN0239SENSOR PROX INFRARED 2M CYLINDER |
52 |
|
Технический лист |
- | Cylinder, Threaded | Bulk | Active | Infrared | 6.562' (2m) | PNP-NO, 3-Wire | - | Shielded | - | 3V ~ 5V | Cable with Connector | -15°C ~ 60°C | - | No Indicator |
|
SEN0447SENSOR PROX CAP 1-10MM MOD |
41 |
|
- |
- | Module | Bulk | Active | Capacitive | 0.039" ~ 0.394" (1mm ~ 10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | No Indicator |
|

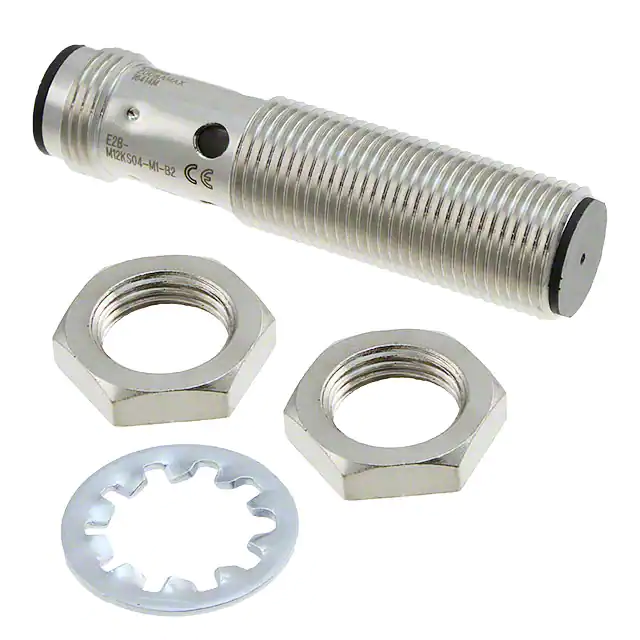

E2B-M12KS04-M1-B2SENSOR PROX INDUCTIVE 4MM CYLIND |
15 |
|
Технический лист |
E2B | Cylinder, Threaded - M12 | Bulk | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | 1kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

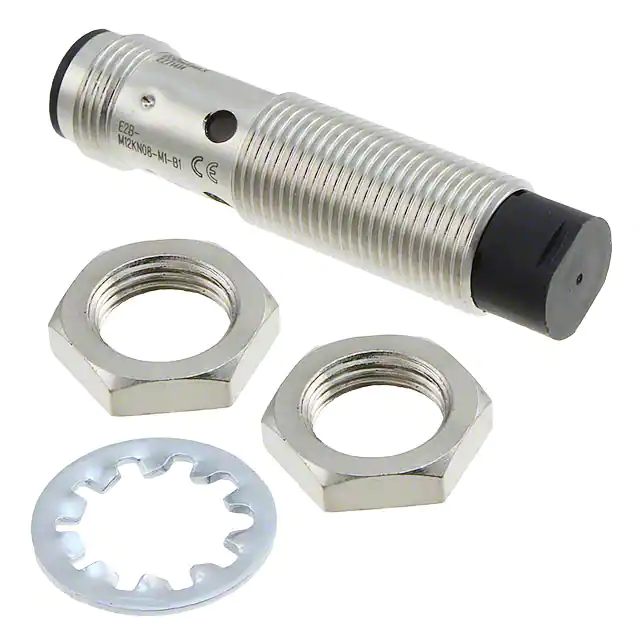

E2B-M12KN08-M1-B1SENSOR PROX INDUCTIVE 8MM CYLIND |
9 |
|
Технический лист |
E2B | Cylinder, Threaded - M12 | Bulk | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | 800Hz | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

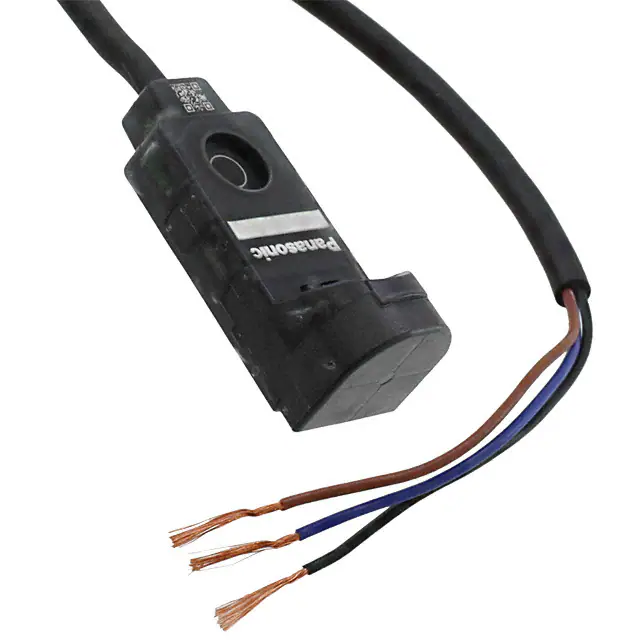

GX-H12ASENSOR PROX INDUCTIVE 3.3MM MOD |
92 |
|
Технический лист |
GX | Module | Box | Active | Inductive | 0.13" (3.3mm) | NPN-NO, 3-Wire | 500Hz | Unshielded | Plastic | 12V ~ 24V | Cable Leads | -25°C ~ 70°C | IP68 | LED |
|
GX-F6BSENSOR PROX INDUCTIVE 1.3MM MOD |
63 |
|
Технический лист |
GX | Module | Box | Active | Inductive | 0.051" (1.3mm) | NPN-NC, 3-Wire | 400Hz | Unshielded | Plastic | 12V ~ 24V | Cable Leads | -25°C ~ 70°C | IP68 | LED |
