Фотоэлектрические, промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Метод измерения | Расстояние срабатывания | Напряжение - Питание | Время отклика | Конфигурация выхода | Источник света | Метод подключения | Защита от проникновения | Длина кабеля | Тип регулировки | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VTBN6VTB SERIES: VERIFICATION TOUCH B |
5 |
|
Технический лист |
VTB | Box | Active | - | - | 12V ~ 30V | 100ms | NPN | LED | Cable | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | 78.74" (2m) | - | -20°C ~ 50°C |
|
SLM10B6SEN SLOT 10MM 1 NPN 1 PNP |
4 |
|
Технический лист |
SLM | Box | Active | - | 0.394" (10mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 60°C |
|
SM2A312DPHOTO SEN 380MM SPST |
4 |
|
Технический лист |
MINI-BEAM® | Box | Active | Diffuse | 14.961" (380mm) | 24VAC ~ 240VAC | 8ms | Light-On/Dark-On | Red LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SLM50P6QSEN SLOT 50MM PNP |
3 |
|
Технический лист |
SLM | Box | Active | - | 1.969" (50mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
|
VTBP6RLVTB SERIES: VERIFICATION TOUCH B |
2 |
|
Технический лист |
VTB | Box | Active | - | - | 12V ~ 30V | 100ms | PNP | LED | Cable | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | 78.74" (2m) | - | -20°C ~ 50°C |
|
1052442SENSOR 140MM PNP LO/DO M8 BKT |
4 |
|
Технический лист |
- | Bulk | Active | - | 1.378" ~ 5.512" (35mm ~ 140mm) | 10V ~ 30V | 625µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Connector, M8, 4POS | IP67 | - | - | -25°C ~ 55°C |
|

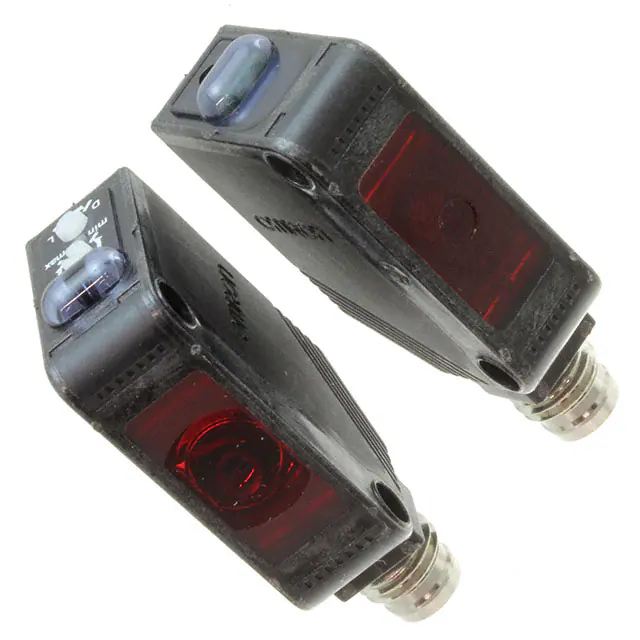

E3Z-T66ASENSOR THROUGH-BEAM 15M NPN |
2 |
|
Технический лист |
E3Z | Bulk | Active | Through-Beam | 15m | 12V ~ 24V | 1ms | NPN | Infrared (870nm) | Connector | IEC IP67, IP69K | - | Single-Turn | -40°C ~ 55°C |
|
Q25RW3FF100Q1EZ-BEAM Q25 SERIES: FIXED FIELD< |
4 |
|
Технический лист |
Q25 | Box | Active | Background Suppression | 3.937" (100mm) | 20 ~ 250 VAC | 16ms | Dark-On | LED | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
Q25AW3FF25Q1EZ-BEAM Q25 SERIES: FIXED FIELD< |
3 |
|
Технический лист |
Q25 | Box | Active | Background Suppression | 0.98" (25mm) | 20 ~ 250 VAC | 16ms | Light-On | LED | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
SME312CVGQDMINI-BEAM EXPERT: VSBL. GREEN 52 |
3 |
|
Технический лист |
SME312 | Box | Active | Convergent | 0.630" (16mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON - Selectable | Green LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | - | Adjustable | -20°C ~ 70°C |
|
|
1051872SENSOR 120MM NPN DO/LO M8 |
23 |
|
Технический лист |
- | Bulk | Active | - | 0.394" ~ 4.724" (10mm ~ 120mm) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Connector, M8, 4POS | IP66/IP67 | - | - | -40°C ~ 60°C |
|
|
1066852SENSOR PROXIMITY 950MM PNP |
2 |
|
Технический лист |
G10 | Box | Active | Proximity | 0.787" ~ 37.402" (20mm ~ 950mm) | 10V ~ 30V | 1ms | PNP | Red (625nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -30°C ~ 60°C |
|
E3AS-F1500IPN 2MPHOTOELECTRIC SENSOR; TIME-OF-FL |
4 |
|
Технический лист |
E3AS-F | Box | Active | Reflective | 1.969" ~ 59.055" (50mm ~ 1.5m) | 10V ~ 30V | 150ms | NPN | Infrared (940nm) | Cable | IP67, IP69K | 78.74" (2m) | - | -20°C ~ 55°C |
|
SBAR1MULTI-BEAM: AMBIENT LIGHT RECEIV |
6 |
|
Технический лист |
- | Box | Active | Fiber Optic | - | - | 10ms | - | - | - | - | - | - | - |
|

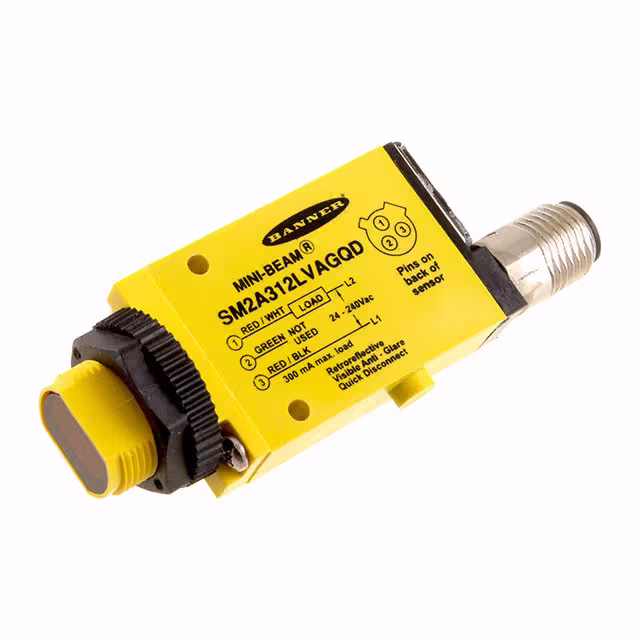

SM2A312LVAGQDPHOTO SEN 50MM-2M SPST |
9 |
|
Технический лист |
MINI-BEAM® | Box | Active | Retroreflective, Polarized | 78.740" (2m) | 24VAC ~ 240VAC | 4ms | Light-On/Dark-On | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS30ARXQPWORLD-BEAM QS30 SERIES: HIGH-POW |
4 |
|
Технический лист |
QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 5ms | NPN/PNP - Light-ON | Infrared (875nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
|
SM2A312CMINI-BEAM: INFRARED 880 NM CONVE |
3 |
|
Технический лист |
MINI-BEAM® | Box | Active | Convergent | 0.630" (16mm) | 24VAC ~ 240VAC | 4ms | SPST - Dark-ON/Light-ON | Infrared | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
E3AS-L200MD 2MPHOTOELECTRIC SENSOR; BACKGROUND |
12 |
|
Технический лист |
E3AS-L | Box | Active | Background Suppression | 0.394" ~ 7.874" (10mm ~ 200mm) | 10V ~ 30V | 1ms | PNP | Red (624nm) | Cable | IP67, IP69K | 78.74" (2m) | - | -25°C ~ 55°C |
|
SM312LVMHS W/30INPUT: 10-30V DC |
18 |
|
Технический лист |
MINI-BEAM® | Box | Active | Retroreflective, NonPolarized | 196.850" (5m) | 10V ~ 30V | 300µs | NPN/PNP - Dark-ON/Light-ON - Selectable | Red (650nm) | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | 354.33" (9m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS18VP6LLPQSEN LASER RETRO 0.1-10M PNP |
7 |
|
Технический лист |
QS18 | Box | Active | Retroreflective, Polarized | 32.81' (10m) | 10V ~ 30V | 700µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -10°C ~ 50°C |
