Фотоэлектрические, промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Метод измерения | Расстояние срабатывания | Напряжение - Питание | Время отклика | Конфигурация выхода | Источник света | Метод подключения | Защита от проникновения | Длина кабеля | Тип регулировки | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2168SENSOR THRU-BEAM 508MM OPEN COL |
830 |
|
Технический лист |
- | Bulk | Active | Through-Beam | 20.0" (508mm) | 3.3V ~ 5V | 2ms | Open Collector | Infrared | Wire Leads | - | 10.0" (254.00mm) | - | - |
|
FT-42SENSOR THROUGH-BEAM 1.13MM |
189 |
|
Технический лист |
FX-500 | Box | Active | Through-Beam | 44.488" (1.13mm) 3.7' | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|

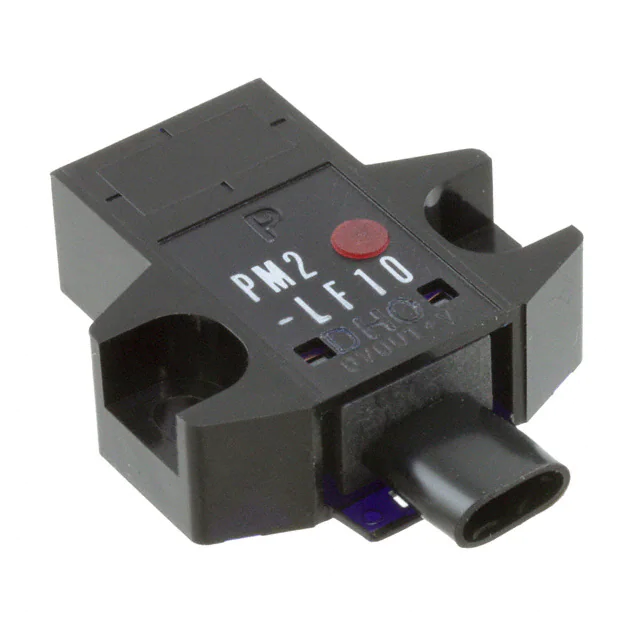

PM2-LF10SENSOR REFLECTV 5MM NPN OPEN COL |
496 |
|
Технический лист |
PM2 | Box | Active | Reflective, Convergent | 0.197" (5mm) | 5V ~ 24V | 800µs | NPN - Open Collector | Infrared (880nm) | Connector | - | - | - | -10°C ~ 55°C |
|

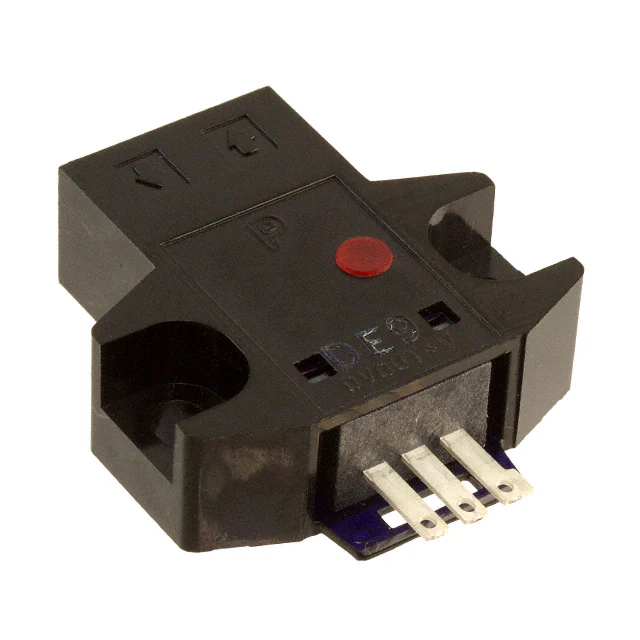

PM2-LH10SENSOR REFLECTV 5MM NPN OPEN COL |
262 |
|
Технический лист |
PM2 | Box | Active | Reflective, Convergent | 0.197" (5mm) | 5V ~ 24V | 800µs | NPN - Open Collector | Infrared (880nm) | Connector | - | - | - | -10°C ~ 55°C |
|
T18-2NAEL-Q8PHOTO SEN EMITTER 25M |
31 |
|
Технический лист |
T18-2 | Bag | Active | Through-Beam | 82.02' (25m) | 10V ~ 30V | - | Light-On/Dark-On | Red LED | Connector | IEC IP67, IEC IP68,IEC IP69K | - | - | -40°C ~ 70°C |
|
T18-2NAEL-2MPHOTO SEN EMITTER 25M |
70 |
|
Технический лист |
T18-2 | Bag | Active | Through-Beam | 82.02' (25m) | 10V ~ 30V | - | Light-On/Dark-On | Red LED | Cable | IEC IP67, IEC IP68,IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
PM2-LH10-C1SENSOR REFLECTV 5MM NPN OPEN COL |
47 |
|
Технический лист |
PM2 | Box | Active | Reflective, Convergent | 0.197" (5mm) | 5V ~ 24V | 800µs | NPN - Open Collector | Infrared (880nm) | Cable | - | 39.37" (1m) | - | -10°C ~ 55°C |
|
FD-42GSENSOR REFLECTIVE 200MM |
110 |
|
Технический лист |
FX-500 | Box | Active | Reflective | 7.874" (200mm) | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|
T18-2VPRL-Q8PHOTO SEN RECEIVER 25M COMP PNP |
82 |
|
Технический лист |
T18-2 | Bulk | Active | Through-Beam | 82.02' (25m) | 10V ~ 30V | 1.5ms | PNP - Dark-ON/Light-ON | Red LED | Connector | IEC IP67, IEC IP68,IEC IP69K | - | - | -40°C ~ 70°C |
|
E3FA-DP11 2MSENSOR REFLECTIVE 100MM PNP |
561 |
|
Технический лист |
E3FA | Bulk | Active | Reflective | 3.937" (100mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Cable | IEC IP67, IP69K | 78.74" (2m) | Single-Turn | -25°C ~ 55°C |
|
T18-2VPRL-2MPHOTO SEN RECEIVER 25M COMP PNP |
47 |
|
Технический лист |
T18-2 | Box | Active | Through-Beam | 82.02' (25m) | 10V ~ 30V | 1.5ms | PNP - Dark-ON/Light-ON | Red LED | Cable | IEC IP67, IEC IP68,IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
S18-2VNLP-2MPHOTO SEN REFLECT 6M NPN |
28 |
|
Технический лист |
S18-2 | Box | Active | Retroreflective, Polarized | 236.22" (6m) | 10V ~ 30V | 1.5ms | NPN - Dark-ON/Light-ON | Red LED | Cable | IEC IP67 | 78.74" (2m) | - | -40°C ~ 70°C |
|

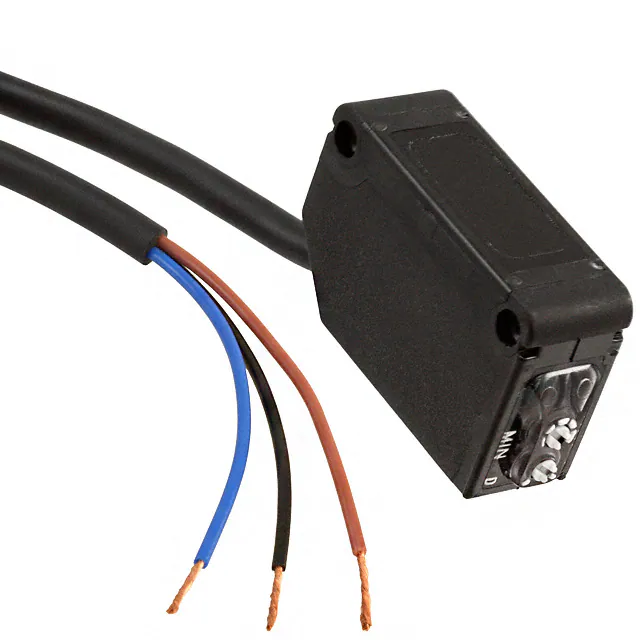

CX-422-PSENSOR REFLECTIVE 800MM PNP |
121 |
|
Технический лист |
CX-400 | Box | Active | Reflective, Diffuse | 31.496" (800mm) | 12V ~ 24V | 1ms | PNP - Open Collector | Infrared (860nm) | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
CX-421SENSOR REFLECTIVE 300MM NPN OPEN |
49 |
|
Технический лист |
- | Box | Active | Reflective, Diffuse | 11.811" (300mm) | 12V ~ 24V | 1ms | NPN - Open Collector | Infrared (860nm) | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|

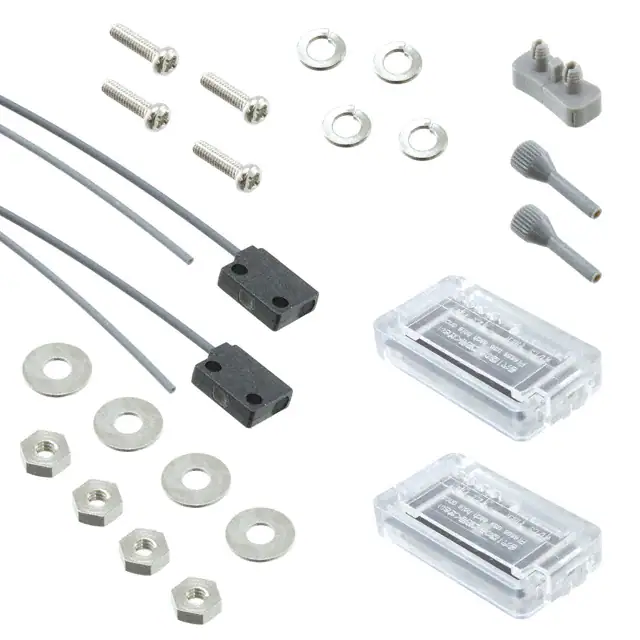

FT-Z30ESENSOR THROUGH-BEAM SIDE R2 |
69 |
|
Технический лист |
FX-500 | Box | Active | Through-Beam | - | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|
|
E3FA-DN11 2MSENSOR REFLECTVE 100MM NPN DO/LO |
52 |
|
Технический лист |
E3FA | Bulk | Active | Reflective | 3.937" (100mm) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Cable | IEC IP67, IP69K | 78.74" (2m) | Single-Turn | -25°C ~ 55°C |
|

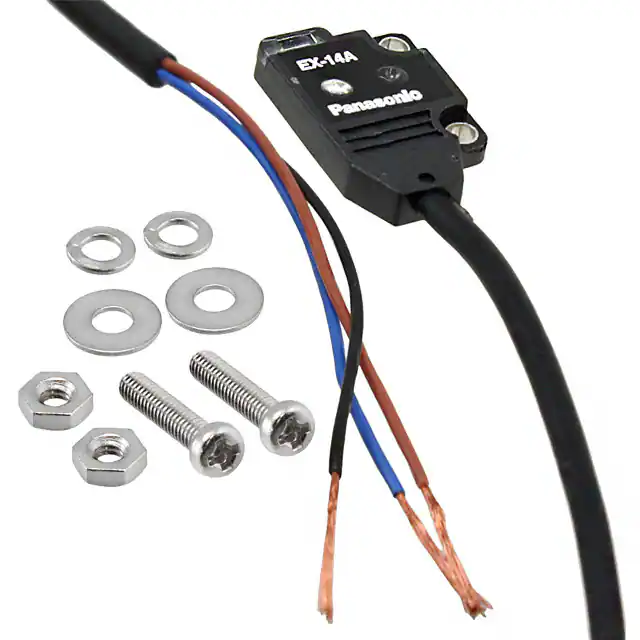

EX-14ASENSOR REFLCTV 25MM NPN OPEN COL |
244 |
|
Технический лист |
EX-10 | Box | Active | Reflective, Diffuse | 0.079" ~ 0.984" (2mm ~ 25mm) ADJ | 12V ~ 24V | 500µs | NPN - Open Collector | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|

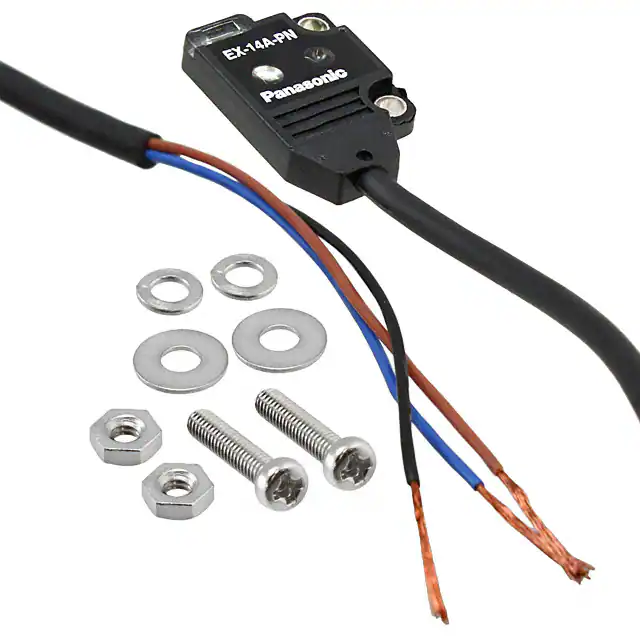

EX-14A-PNSENSOR REFLECTIVE 25MM PNP |
175 |
|
Технический лист |
EX-10 | Box | Active | Reflective, Diffuse | 0.079" ~ 0.984" (2mm ~ 25mm) ADJ | 12V ~ 24V | 500µs | PNP - Open Collector | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|

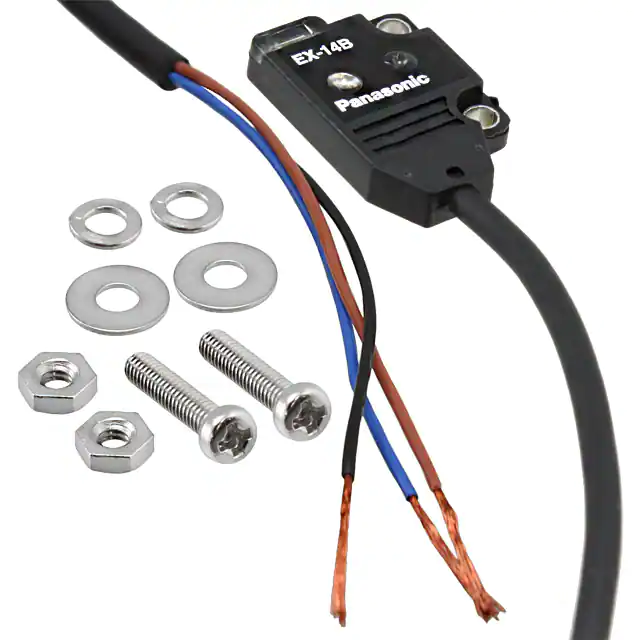

EX-14BSENSOR REFLCTV 25MM NPN OPEN COL |
54 |
|
Технический лист |
EX-10 | Box | Active | Reflective, Diffuse | 0.079" ~ 0.984" (2mm ~ 25mm) ADJ | 12V ~ 24V | 500µs | NPN - Open Collector | Red LED | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
QS18VP6RQ8PHOTO SEN RECEIVER 20M PNP |
35 |
|
Технический лист |
QS18 | Bag | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | 750µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
