Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCL 060-112 DCDC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
TCL-DC (24 ~ 60W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 5A | 60W | 1.5 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.77" W x 2.95" H (100.1mm x 45.0mm x 74.9mm) | CB, cULus | - |
|
1469480000AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
PRO ECO (120W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 70°C | Adjustable Output, Load Sharing, Universal Input | 3.94" L x 1.57" W x 4.92" H (100.0mm x 40.0mm x 125.0mm) | CE, cULus | - |
|
2866268AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
TRIO | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C | IP20, Universal Input | 4.53" L x 1.26" W x 5.12" H (115.0mm x 32.0mm x 130.0mm) | cULus, cURus, UL | - |
|
DRB480-24-1AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
DRB (120-480W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.92" L x 3.31" W x 4.88" H (125.0mm x 84.0mm x 124.0mm) | CE, cULus, cURus | - |
|
DPX40-24WS12DC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Технический лист |
DPX (40W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 12V | - | - | - | - | - | 3.33A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
DRS-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
DRP-24V240W2BNAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
CliQ II (240W) | Bulk | Active | AC | 1 | 180 ~ 550 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|

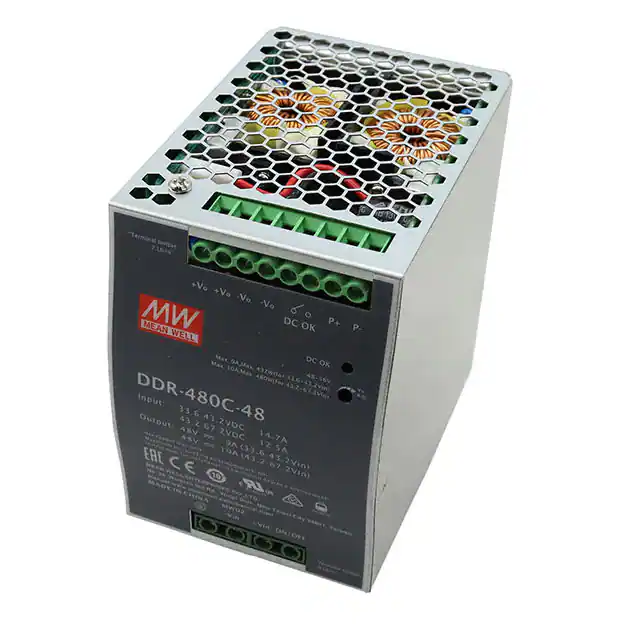

DDR-480C-48DC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
DDR-480 (480W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC | - |
|

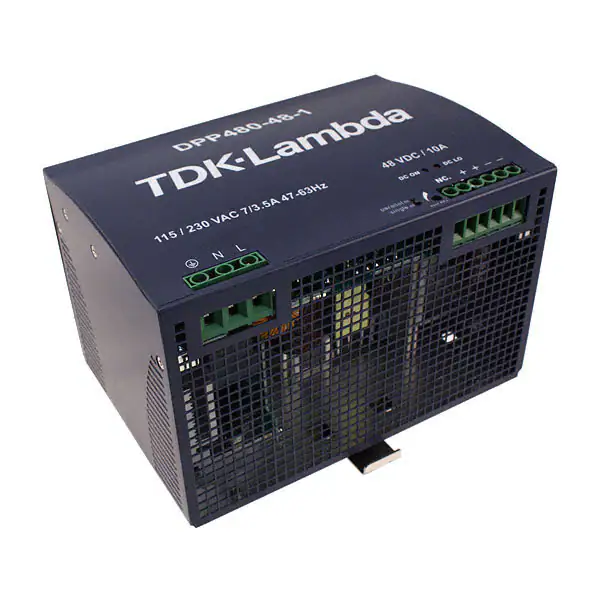

DPP480-48-1AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
DPP (480W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.68" L x 5.91" W x 4.88" H (118.9mm x 150.1mm x 124.0mm) | CE | - |
|
2910124QUINT4-PS/12DC/24DC/5/PT |
1 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 9V | 16.8V | 24V | - | - | - | - | - | 5A | 150W | 2 kV | Medical | 91.3% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.42" W x 5.12" H (125.0mm x 36.0mm x 130.0mm) | SIQ, UL | 60601-1 |
|
6EP13332BA20AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
6EP1 | Bulk | Active | AC | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 1.97" W x 4.92" H (125.0mm x 50.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
NTPS-24-1-3AC/DC DIN RAIL SUPPLY 24V 31W |
0 |
|
Технический лист |
N-TRON® | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 31W | - | ITE (Commercial) | - | -10°C ~ 60°C | Adjustable Output | 3.60" L x 1.77" W x 3.78" H (91.2mm x 45.1mm x 96.0mm) | CE, CSA | - |
|
2910133DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
Quint4 | Box | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 10A | - | 4 kV | ITE (Commercial), Laboratory | 93.3% | -40°C ~ 70°C (With Derating) | - | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | - | - |
|
2466890000AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
PRO TOP1 (480W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 2.68" W x 5.12" H (125.0mm x 68.0mm x 130.0mm) | - | - |
|

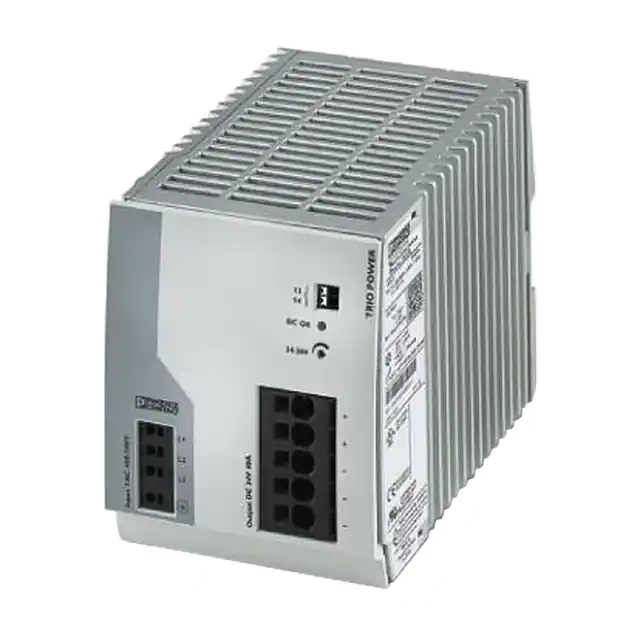

2903156AC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
TRIO | Box | Active | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 93.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 6.30" L x 4.33" W x 5.12" H (160.0mm x 110.0mm x 130.0mm) | cUL, UL | - |
|
1076188AC/DC DIN RAIL SUPPLY 72V 1008W |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 320 ~ 575 VAC (3PH) | - | - | 72V | - | - | - | - | - | 14A | 1008W | - | Laboratory | 94.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 6.30" L x 4.33" W x 5.12" H (160.0mm x 110.0mm x 130.0mm) | cUL, cURus, UL | 61010-1 |
|
2320128DC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 18V | 32V | 48V | - | - | - | - | - | 5A | 240W | - | ITE (Commercial) | 92.5% | -25°C ~ 70°C | - | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) | cUL, UL | - |
|
QS5.241-A1AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
DIMENSION Q (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | 88V | 360V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Hazardous Locations, ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

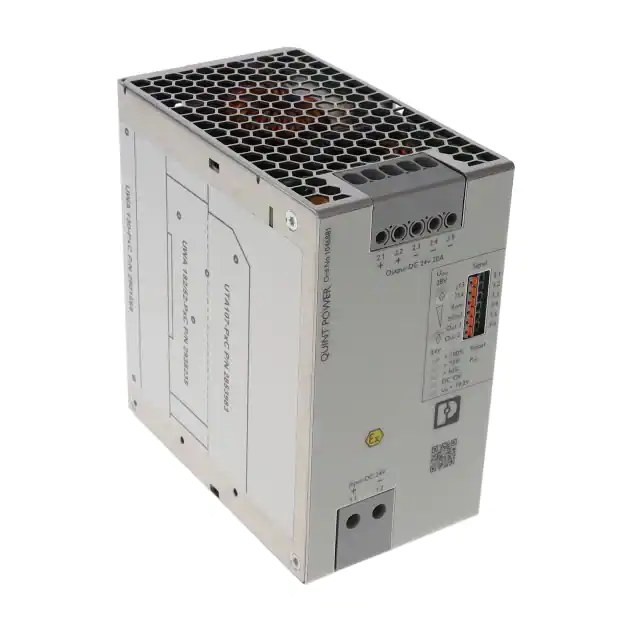

1046881DC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
Quint4 | Bulk | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Hazardous Locations, ITE (Commercial), Laboratory | 94.7% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, CSA, cULus, UL | 60950-1; 61010-1; ATEX; IECEx |
|
6EP13363BA10AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
6EP1 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 88V | 350V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.72" L x 1.97" W x 4.92" H (120.0mm x 50.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
