Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT5.121AC/DC DIN RAIL SUPPLY 12V 96W |
0 |
|
Технический лист |
DIMENSION C (96W) | Box | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 12V | - | - | - | - | - | 8A | 96W | 500 V | ITE (Commercial) | 85.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
6EP14362BA10AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
6EP1 | Bulk | Active | AC | 1 | 400 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 5.91" L x 5.71" W x 5.71" H (150.0mm x 145.0mm x 145.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
CD10.482DC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
DIMENSION CD (240W) | Box | Active | DC | 1 | - | 36V | 60V | 48V | - | - | - | - | - | 5A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 95.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.61" L x 1.65" W x 4.88" H (117.0mm x 42.0mm x 124.0mm) | EAC, IEC, UL | 60950-1; 61010-2-201 |
|

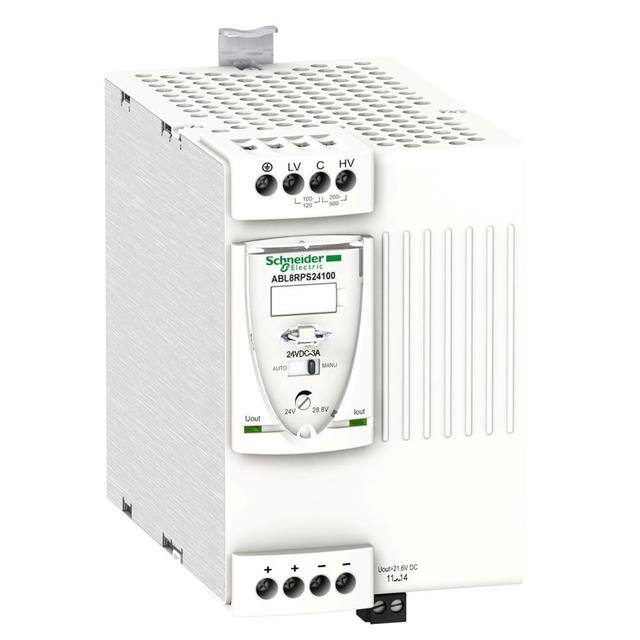

ABL8RPS24100AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 60°C (With Derating) | IP20 | 5.71" L x 3.39" W x 4.92" H (145.0mm x 86.0mm x 125.0mm) | CE, cCSAus, CSA, EAC, EN, IEC, KC, RCM, UL | 60950-1; 62368-1; UL 508 |
|

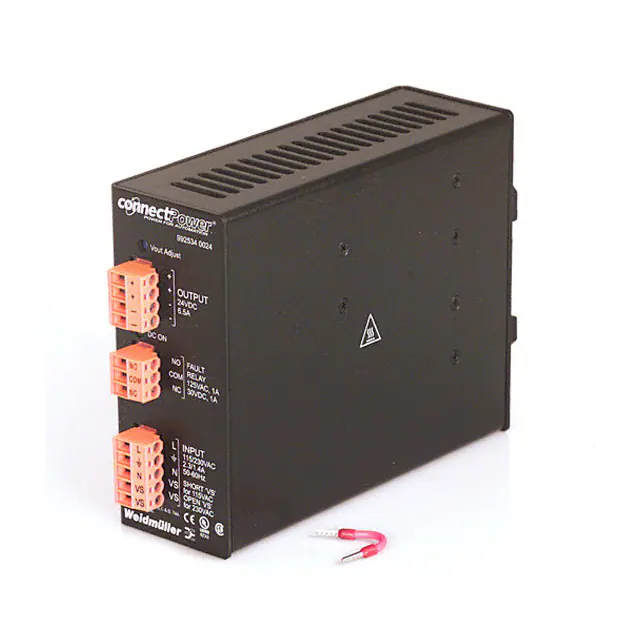

9925340024AC/DC DIN RAIL SUPPLY 24V 160W |
0 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 7A | 160W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 70°C | Adjustable Output, Universal Input | 6.89" L x 2.24" W x 5.00" H (175.0mm x 57.0mm x 127.0mm) | CSA, GOST | - |
|
ABL8WPS24200AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
- | Box | Active | AC | 1 | 320 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C (With Derating) | IP20 | 6.30" L x 3.78" W x 5.63" H (160.0mm x 96.0mm x 143.0mm) | CCSAus, EAC, EN, IEC, RCM, UL | 60950-1; 62368-1; UL 508 |
|
CP20.241-R2-C1AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 93.8% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | CE, cULus, EAC | - |
|
QS40.484AC/DC DIN RAIL SUPPLY 48V 960W |
1 |
|
Технический лист |
DIMENSION Q (960W) | Box | Active | AC | 1 | 170 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm) | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
56YSD30S-0503000AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
56YSD30S (30W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | - | Industrial, ITE (Commercial) | 82% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 1.38" W x 2.28" H (90.0mm x 35.0mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
DDR-15L-15DC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
DDR-15 (15W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CE, EAC | - |
|
|
PSD-1548AC/DC DIN RAIL SUPPLY 48V 15W |
3 |
|
Технический лист |
PSD-15 (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 320mA | 15W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 0.69" W x 3.66" H (59.0mm x 17.5mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
|
PSD-1515AC/DC DIN RAIL SUPPLY 15V 15W |
2 |
|
Технический лист |
PSD-15 (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1A | 15W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 0.69" W x 3.66" H (59.0mm x 17.5mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
56YSD60S-1504000AC/DC DIN RAIL SUPPLY 15V 60W |
5 |
|
Технический лист |
56YSD60S (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 4A | 60W | - | Industrial, ITE (Commercial) | 89% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 2.07" W x 2.28" H (90.0mm x 52.5mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
LI100-20B15PR2AC/DC DIN RAIL SUPPLY 15V 98W |
0 |
|
Технический лист |
LI100-20BxxPR2 (100W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 6.5A | 98W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 2.76" W x 3.65" H (58.0mm x 70.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
AD1024-24FAC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 120V | 370V | 24V | - | - | - | - | - | 1A | 24W | - | ITE (Commercial) | 83% | -20°C ~ 50°C | Adjustable Output | 2.97" L x 1.77" W x 3.78" H (75.5mm x 45.0mm x 96.0mm) | CB, CE, cULus | - |
|
AD1048-24FSAC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 120V | 370V | 24V | - | - | - | - | - | 2A | 48W | - | ITE (Commercial) | 83% | -20°C ~ 50°C | Adjustable Output | 2.97" L x 1.77" W x 3.78" H (75.5mm x 45.0mm x 96.0mm) | CB, CE, cULus | - |
|
|
PSD-3024AC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Технический лист |
PSD-30 (24W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1A | 24W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.54" H (58.0mm x 35.0mm x 90.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
DTJ1548S05-DDC/DC DIN RAIL SUPPLY 5V 15W |
3 |
|
Технический лист |
DTJ15 (15W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) | CB, UL | 62368-1 |
|
|
PSD-6005AC/DC DIN RAIL SUPPLY 5V 23W |
5 |
|
Технический лист |
PSD-60 (23W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 4.5A | 23W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.28" L x 2.07" W x 3.54" H (58.0mm x 52.5mm x 90.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
2580180000AC/DC DIN RAIL SUPPLY 24V 17W |
0 |
|
Технический лист |
Connect Power INSTA (16W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 24V | - | - | - | - | - | 700mA | 17W | 4 kV | ITE (Commercial) | 82.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.36" L x 0.89" W x 3.56" H (60.0mm x 22.5mm x 90.5mm) | cCSAus, TUV | - |
